Search › Model › SQ416V
SQ416V

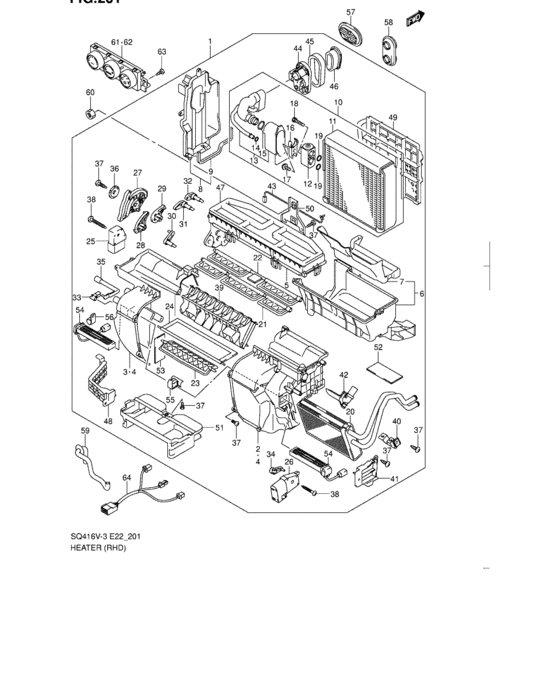

Heater (RHD) 80
| # | OEM | Part name |
|---|---|---|
| 1 | 74100-54JA0-000 | Heater unit |
| 1 | 74100-54JE0-000 | Heater unit |
| 1 | 74100-54J00-000 | Heater unit |
| 1 | 74100-54J40-000 | Heater unit |
| 1 | 74100-54J80-000 | HEATER UNIT |
| 1 | 74100-54JJ0-000 | HEATER UNIT |
| 2 | 74111-54J00-000 | Case, rh |
| 2 | 74110-54820-000 | Case,htr |
| 2 | 74111-54J80-000 | Case, rh |
| 2 | 74110-54860-000 | CASE,HTR |
| 3 | 74112-54J00-000 | CASE,HTR,L |
| 4 | 74110-54840-000 | Case set |
| 4 | 74110-54870-000 | Case,htr |
| 5 | 74113-54J00-000 | CASE,HTR,UPPER |
| 6 | 74115-54J00-000 | CASE,LOWER |
| 7 | 95461-54J00-000 | PLATE |
| 8 | 74117-54J00-000 | DUCT,JOINT |
| 9 | 74179-54J00-000 | SEAL |
| 10 | 95410-54J00-000 | EVAPORATOR ASSY |
| 11 | 95411-54J00-000 | CORE,EVAPORATOR |
| 12 | 95431-54J00-000 | VALVE,EXPANSION |
| 13 | 95432-54J00-000 | PIPE ASSY |
| 14 | 95891-54J00-000 | O-RING |
| 15 | 95896-54J00-000 | O-RING |
| 16 | 95433-54J00-000 | PLATE |
| 17 | 01580-06253-000 | Bolt, ignition - Bolt, front |
| 17 | 01580-0625A-000 | Bolt |
| 18 | 07130-05357-000 | Bolt |
| 19 | 95897-54J00-000 | O-RING |
| 20 | 74120-54J00-000 | CORE,HTR |
| 20 | 74120-54J10-000 | CORE,HTR |
| 21 | 74171-54J00-000 | DOOR,VENT |
| 22 | 74172-54J00-000 | DOOR,DEFROSTER |
| 23 | 74173-54J00-000 | DOOR,FOOT |
| 24 | 74174-54J00-000 | DOOR,TEMP |
| 25 | 95653-54J00-000 | ACTUATOR,MODE |
| 26 | 95651-54J00-000 | ACTUATOR,TEMP |
| 27 | 74181-54J00-000 | LEVER,MODE MAIN |
| 28 | 74182-54J00-000 | LEVER,VENT |
| 29 | 74183-54J00-000 | LEVER,DFR |
| 30 | 74184-54J00-000 | LEVER,FOOT SUB |
| 31 | 74185-54J00-000 | LEVER,VENT |
| 32 | 74186-54J00-000 | LEVER,DFR |
| 33 | 74187-54J00-000 | LEVER,FOOT |
| 34 | 74188-54J00-000 | LEVER,AIR MXT |
| 35 | 74189-54J00-000 | LEVER,FOOT |
| 36 | 74176-54J00-000 | WASHER,LINK |
| 37 | 02112-05123-000 | Screw 5x12 |
| 37 | 02112-0512A-000 | SCREW |
| 38 | 74175-54J00-000 | SCREW |
| 39 | 74116-54J00-000 | GUIDE |
| 40 | 74123-54J00-000 | CLAMP,HTR PIPE |
| 41 | 74121-54J00-000 | PLATE,HTR CORE |
| 42 | 95656-54J00-000 | ASPIRATOR |
| 43 | 95541-54J00-000 | THERMISTOR |
| 44 | 95434-54J00-000 | COVER,A/C BLOCK |
| 45 | 95435-54J00-000 | GROMMET,BLOCK |
| 46 | 95436-54J00-000 | PACKING |
| 47 | 74119-54J00-000 | PACKING,HEATER |
| 48 | 74118-54J20-000 | BRACKET,JOINT |
| 49 | 95482-54J00-000 | BOARD,AIR RESISTANCE |
| 50 | 74118-54J00-000 | BRACKET,UPPER |
| 51 | 74114-54J00-000 | DUCT,FOOT |
| 52 | 74122-54J00-000 | PACKING,HEATER PIPE |
| 53 | 74177-54J00-000 | PACKING |
| 54 | 74125-54J00-000 | PTC HEATER |
| 55 | 74126-54J00-000 | BRACKET,PTC HEATER |
| 56 | 74178-54J10-000 | Clamp |
| 57 | 74812-82030-000 | GROMMET,HTR |
| 58 | 74812-77E00-000 | GROMMET,HTR |
| 59 | 95481-54J00-000 | HOSE,DRAIN |
| 60 | 09159-06081-000 | NUT |
| 61 | 74400-54J00-5PK | Control unit, heater - Black |
| 61 | 74400-54J02-5PK | CONTROL UNIT,HTR |
| 61 | 74400-54J12-5PK | CONTROL UNIT,HTR |
| 62 | 95610-54J02-5PK | PANEL UNITAUTO AC |
| 62 | 95610-54J04-5PK | PANEL UNIT,AUTO A/C |
| 63 | 03541-05123-000 | Screw |
| 63 | 03541-0512B-000 | SCREW |
| 64 | 74156-54J00-000 | HARNESS,JOINT |
| OEM | Part name | Category |
|---|---|---|
| 01580-06253-000 | Bolt, ignition - Bolt, front | Heater (RHD) |
| 01580-0625A-000 | Bolt | Heater (RHD) |
| 02112-05123-000 | Screw 5x12 | Heater (RHD) |
| 02112-0512A-000 | SCREW | Heater (RHD) |
| 03541-05123-000 | Screw | Heater (RHD) |
| 03541-0512B-000 | SCREW | Heater (RHD) |
| 07130-05357-000 | Bolt | Heater (RHD) |
| 09159-06081-000 | NUT | Heater (RHD) |
| 74100-54J00-000 | Heater unit | Heater (RHD) |
| 74100-54J40-000 | Heater unit | Heater (RHD) |
| 74100-54J80-000 | HEATER UNIT | Heater (RHD) |
| 74100-54JA0-000 | Heater unit | Heater (RHD) |
| 74100-54JE0-000 | Heater unit | Heater (RHD) |
| 74100-54JJ0-000 | HEATER UNIT | Heater (RHD) |
| 74110-54820-000 | Case,htr | Heater (RHD) |
| 74110-54840-000 | Case set | Heater (RHD) |
| 74110-54860-000 | CASE,HTR | Heater (RHD) |
| 74110-54870-000 | Case,htr | Heater (RHD) |
| 74111-54J00-000 | Case, rh | Heater (RHD) |
| 74111-54J80-000 | Case, rh | Heater (RHD) |
| 74112-54J00-000 | CASE,HTR,L | Heater (RHD) |
| 74113-54J00-000 | CASE,HTR,UPPER | Heater (RHD) |
| 74114-54J00-000 | DUCT,FOOT | Heater (RHD) |
| 74115-54J00-000 | CASE,LOWER | Heater (RHD) |
| 74116-54J00-000 | GUIDE | Heater (RHD) |
| 74117-54J00-000 | DUCT,JOINT | Heater (RHD) |
| 74118-54J00-000 | BRACKET,UPPER | Heater (RHD) |
| 74118-54J20-000 | BRACKET,JOINT | Heater (RHD) |
| 74119-54J00-000 | PACKING,HEATER | Heater (RHD) |
| 74120-54J00-000 | CORE,HTR | Heater (RHD) |
| 74120-54J10-000 | CORE,HTR | Heater (RHD) |
| 74121-54J00-000 | PLATE,HTR CORE | Heater (RHD) |
| 74122-54J00-000 | PACKING,HEATER PIPE | Heater (RHD) |
| 74123-54J00-000 | CLAMP,HTR PIPE | Heater (RHD) |
| 74125-54J00-000 | PTC HEATER | Heater (RHD) |
| 74126-54J00-000 | BRACKET,PTC HEATER | Heater (RHD) |
| 74156-54J00-000 | HARNESS,JOINT | Heater (RHD) |
| 74171-54J00-000 | DOOR,VENT | Heater (RHD) |
| 74172-54J00-000 | DOOR,DEFROSTER | Heater (RHD) |
| 74173-54J00-000 | DOOR,FOOT | Heater (RHD) |
| 74174-54J00-000 | DOOR,TEMP | Heater (RHD) |
| 74175-54J00-000 | SCREW | Heater (RHD) |
| 74176-54J00-000 | WASHER,LINK | Heater (RHD) |
| 74177-54J00-000 | PACKING | Heater (RHD) |
| 74178-54J10-000 | Clamp | Heater (RHD) |
| 74179-54J00-000 | SEAL | Heater (RHD) |
| 74181-54J00-000 | LEVER,MODE MAIN | Heater (RHD) |
| 74182-54J00-000 | LEVER,VENT | Heater (RHD) |
| 74183-54J00-000 | LEVER,DFR | Heater (RHD) |
| 74184-54J00-000 | LEVER,FOOT SUB | Heater (RHD) |
| 74185-54J00-000 | LEVER,VENT | Heater (RHD) |
| 74186-54J00-000 | LEVER,DFR | Heater (RHD) |
| 74187-54J00-000 | LEVER,FOOT | Heater (RHD) |
| 74188-54J00-000 | LEVER,AIR MXT | Heater (RHD) |
| 74189-54J00-000 | LEVER,FOOT | Heater (RHD) |
| 74400-54J00-5PK | Control unit, heater - Black | Heater (RHD) |
| 74400-54J02-5PK | CONTROL UNIT,HTR | Heater (RHD) |
| 74400-54J12-5PK | CONTROL UNIT,HTR | Heater (RHD) |
| 74812-77E00-000 | GROMMET,HTR | Heater (RHD) |
| 74812-82030-000 | GROMMET,HTR | Heater (RHD) |
| 95410-54J00-000 | EVAPORATOR ASSY | Heater (RHD) |
| 95411-54J00-000 | CORE,EVAPORATOR | Heater (RHD) |
| 95431-54J00-000 | VALVE,EXPANSION | Heater (RHD) |
| 95432-54J00-000 | PIPE ASSY | Heater (RHD) |
| 95433-54J00-000 | PLATE | Heater (RHD) |
| 95434-54J00-000 | COVER,A/C BLOCK | Heater (RHD) |
| 95435-54J00-000 | GROMMET,BLOCK | Heater (RHD) |
| 95436-54J00-000 | PACKING | Heater (RHD) |
| 95461-54J00-000 | PLATE | Heater (RHD) |
| 95481-54J00-000 | HOSE,DRAIN | Heater (RHD) |
| 95482-54J00-000 | BOARD,AIR RESISTANCE | Heater (RHD) |
| 95541-54J00-000 | THERMISTOR | Heater (RHD) |
| 95610-54J02-5PK | PANEL UNITAUTO AC | Heater (RHD) |
| 95610-54J04-5PK | PANEL UNIT,AUTO A/C | Heater (RHD) |
| 95651-54J00-000 | ACTUATOR,TEMP | Heater (RHD) |
| 95653-54J00-000 | ACTUATOR,MODE | Heater (RHD) |
| 95656-54J00-000 | ASPIRATOR | Heater (RHD) |
| 95891-54J00-000 | O-RING | Heater (RHD) |
| 95896-54J00-000 | O-RING | Heater (RHD) |
| 95897-54J00-000 | O-RING | Heater (RHD) |
