| 02162-06163-000 |
Screw - Bolt |

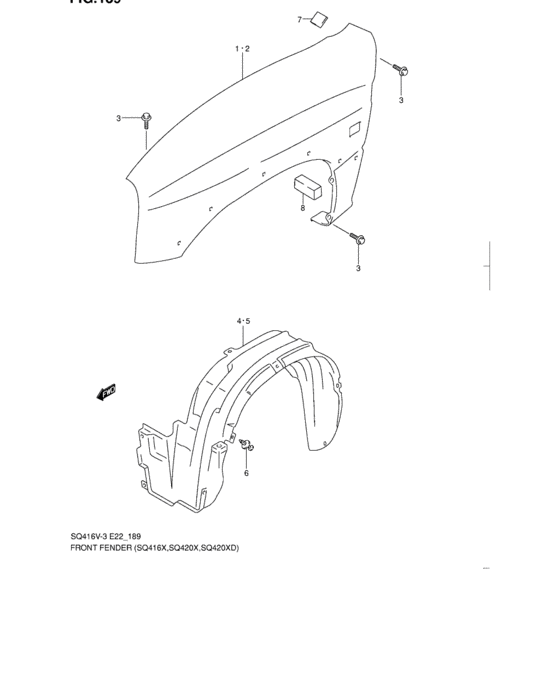

Front fender (SQ416X,SQ420X,SQ420XD) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Front fender (SQ416X,SQ420X,SQ420XD) |
| 09409-07332-000 |
CLIP |
Front fender (SQ416X,SQ420X,SQ420XD) |
| 58611-65DC1-000 |
PANEL,FR FENDER OUTER,R |
Front fender (SQ416X,SQ420X,SQ420XD) |
| 58811-65DC1-000 |
PANEL,FR FENDER OUTER,L |
Front fender (SQ416X,SQ420X,SQ420XD) |
| 72481-65D10-000 |
LINING,FR FENDER,R |
Front fender (SQ416X,SQ420X,SQ420XD) |
| 72482-65D10-000 |
LINING,FR FENDER,L |
Front fender (SQ416X,SQ420X,SQ420XD) |
| 72491-65DA0-000 |
PAD,FR FENDER |
Front fender (SQ416X,SQ420X,SQ420XD) |
| 83921-82C00-000 |
PAD |
Front fender (SQ416X,SQ420X,SQ420XD) |
