Search › Model › SQ416Q
SQ416Q

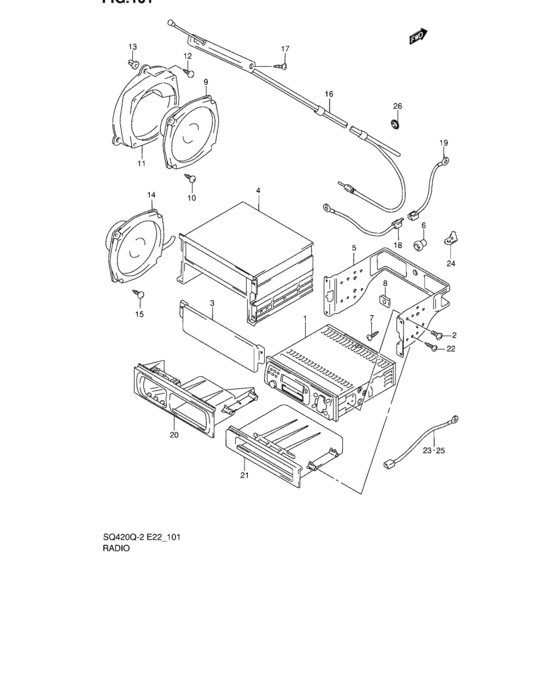

Radio (RADIO) 43
| # | OEM | Part name |
|---|---|---|
| 1 | 39101-65D21-000 | Tuner assy |
| 1 | 39101-65D10-000 | TUNER ASSY,AM/FM CASSETTE 10KH - Tuner assy (am/fm,cassette,10khz) |
| 1 | 39101-65D41-000 | TUNER ASSY |
| 2 | 02142-05083-000 | Screw |
| 2 | 02142-0508A-000 | SCREW - Screw, cap |
| 3 | 39161-70E01-000 | COVER,RADIO HOLE |
| 4 | 39321-65D10-000 | BRACKET,TUNER |
| 5 | 39321-65D00-000 | BRACKET,TUNER |
| 6 | 34955-60E00-000 | BUSH |
| 7 | 03142-05163-000 | Screw |
| 7 | 03141-0516A-000 | SCREW |
| 8 | 73321-77E00-000 | Nut, console box cap |
| 8 | 09148-05045-000 | NUT |
| 9 | 39102-67D00-000 | SPEAKER ASSY |
| 10 | 03512-05163-000 | Screw |
| 10 | 03511-0516A-000 | SCREW |
| 11 | 39350-67D00-000 | BRACKET,FR SPKR |
| 11 | 39350-60G00-000 | BRACKET,FR SPKR |
| 12 | 03242-06163-000 | Screw - Screw, tilt handle |
| 12 | 03241-0616C-000 | SCREW |
| 13 | 09148-06007-000 | NUT |
| 16 | 39250-67D10-000 | Antenna assy |
| 16 | 39250-65D10-000 | ANTENNA ASSY |
| 16 | 39250-67D00-000 | ANTENNA ASSY |
| 17 | 39251-67D10-000 | Screw, antenna |
| 17 | 09129-04003-000 | SCREW(4X12) |
| 18 | 39312-67D00-000 | Wire, noise suppressor no.1 |
| 18 | 39312-65D00-000 | WIRE,NOISE SUPPR |
| 19 | 39312-60B11-000 | WIRENOISE SUPPRNO1 |
| 19 | 39312-60G00-000 | WIRE,NOISE SUPPR |
| 20 | 34600-65D00-000 | Clock assy |
| 20 | 34600-65D01-000 | CLOCK ASSY |
| 21 | 39182-70E50-000 | POCKETTUNER |
| 21 | 39182-70E51-000 | POCKET,TUNER |
| 22 | 03242-05123-000 | Screw, inner cover |
| 22 | 03241-0512A-000 | SCREW |
| 23 | 39191-50F00-000 | WIRE,TUNER GND |
| 24 | 36865-82000-000 | TERMINAL,GND |
| 25 | 39312-77E00-000 | WIRE,NOISE SUPPR |
| 26 | 09250-14009-000 | CAP(OD:22) |
| 27 | 39103-65D20-000 | MANUAL,OWNER'S |
| 27 | 39103-65D10-000 | MANUAL,OWNER'S |
| 27 | 39103-65D40-000 | MANUAL,OWNER'S |
| OEM | Part name | Category |
|---|---|---|
| 02142-05083-000 | Screw | Radio (RADIO) |
| 02142-0508A-000 | SCREW - Screw, cap | Radio (RADIO) |
| 03141-0516A-000 | SCREW | Radio (RADIO) |
| 03142-05163-000 | Screw | Radio (RADIO) |
| 03241-0512A-000 | SCREW | Radio (RADIO) |
| 03241-0616C-000 | SCREW | Radio (RADIO) |
| 03242-05123-000 | Screw, inner cover | Radio (RADIO) |
| 03242-06163-000 | Screw - Screw, tilt handle | Radio (RADIO) |
| 03511-0516A-000 | SCREW | Radio (RADIO) |
| 03512-05163-000 | Screw | Radio (RADIO) |
| 09129-04003-000 | SCREW(4X12) | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09148-06007-000 | NUT | Radio (RADIO) |
| 09250-14009-000 | CAP(OD:22) | Radio (RADIO) |
| 34600-65D00-000 | Clock assy | Radio (RADIO) |
| 34600-65D01-000 | CLOCK ASSY | Radio (RADIO) |
| 34955-60E00-000 | BUSH | Radio (RADIO) |
| 36865-82000-000 | TERMINAL,GND | Radio (RADIO) |
| 39101-65D10-000 | TUNER ASSY,AM/FM CASSETTE 10KH - Tuner assy (am/fm,cassette,10khz) | Radio (RADIO) |
| 39101-65D21-000 | Tuner assy | Radio (RADIO) |
| 39101-65D41-000 | TUNER ASSY | Radio (RADIO) |
| 39102-67D00-000 | SPEAKER ASSY | Radio (RADIO) |
| 39103-65D10-000 | MANUAL,OWNER'S | Radio (RADIO) |
| 39103-65D20-000 | MANUAL,OWNER'S | Radio (RADIO) |
| 39103-65D40-000 | MANUAL,OWNER'S | Radio (RADIO) |
| 39161-70E01-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39182-70E50-000 | POCKETTUNER | Radio (RADIO) |
| 39182-70E51-000 | POCKET,TUNER | Radio (RADIO) |
| 39191-50F00-000 | WIRE,TUNER GND | Radio (RADIO) |
| 39250-65D10-000 | ANTENNA ASSY | Radio (RADIO) |
| 39250-67D00-000 | ANTENNA ASSY | Radio (RADIO) |
| 39250-67D10-000 | Antenna assy | Radio (RADIO) |
| 39251-67D10-000 | Screw, antenna | Radio (RADIO) |
| 39312-60B11-000 | WIRENOISE SUPPRNO1 | Radio (RADIO) |
| 39312-60G00-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39312-65D00-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39312-67D00-000 | Wire, noise suppressor no.1 | Radio (RADIO) |
| 39312-77E00-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39321-65D00-000 | BRACKET,TUNER | Radio (RADIO) |
| 39321-65D10-000 | BRACKET,TUNER | Radio (RADIO) |
| 39350-60G00-000 | BRACKET,FR SPKR | Radio (RADIO) |
| 39350-67D00-000 | BRACKET,FR SPKR | Radio (RADIO) |
| 73321-77E00-000 | Nut, console box cap | Radio (RADIO) |
