| 01550-08203-000 |
Bolt |

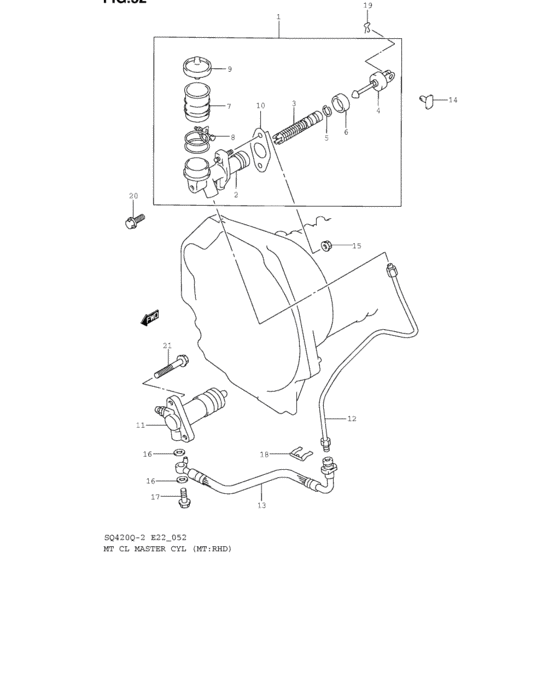

Mt cl master cyl (MT:RHD) |
| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |
Mt cl master cyl (MT:RHD) |
| 01550-0820B-000 |
Bolt |
Mt cl master cyl (MT:RHD) |
| 01550-10353-000 |
Bolt |
Mt cl master cyl (MT:RHD) |
| 01550-1035A-000 |
Bolt - Bolt, fr fork upper |
Mt cl master cyl (MT:RHD) |
| 09159-08069-000 |
Nut |
Mt cl master cyl (MT:RHD) |
| 09159-08135-000 |
NUT |
Mt cl master cyl (MT:RHD) |
| 09161-10009-000 |
WASHER(10X15X1.5) - Lock washer |
Mt cl master cyl (MT:RHD) |
| 09360-10026-000 |
Union bolt |
Mt cl master cyl (MT:RHD) |
| 09383-13001-000 |
E RING |
Mt cl master cyl (MT:RHD) |
| 09383-13003-000 |
E-RING |
Mt cl master cyl (MT:RHD) |
| 09385-08007-000 |
PIN,SNAP - Clip |
Mt cl master cyl (MT:RHD) |
| 23810-65D00-000 |
Cylinder assy,clutch master |
Mt cl master cyl (MT:RHD) |
| 23810-65D01-000 |
CYLINDER ASSY,CLUTCH MASTER |
Mt cl master cyl (MT:RHD) |
| 23811-65D00-000 |
BODY,CLUTCH MASTER CYLINDER |
Mt cl master cyl (MT:RHD) |
| 23812-65D00-000 |
PISTON ASSY |
Mt cl master cyl (MT:RHD) |
| 23813-65D00-000 |
PUSH ROD DAMPER ASSY |
Mt cl master cyl (MT:RHD) |
| 23814-65D00-000 |
CIRCLIP |
Mt cl master cyl (MT:RHD) |
| 23815-65D00-000 |
BOOT |
Mt cl master cyl (MT:RHD) |
| 23816-65D00-000 |
RESERVOIR |
Mt cl master cyl (MT:RHD) |
| 23817-65D00-000 |
BAND ASSY |
Mt cl master cyl (MT:RHD) |
| 23818-65D00-000 |
CAP |
Mt cl master cyl (MT:RHD) |
| 23819-65D00-000 |
SEAL,CLUTCH MASTER CYLINDER |
Mt cl master cyl (MT:RHD) |
| 23820-65D00-000 |
Cylinder assy,clutch operating |
Mt cl master cyl (MT:RHD) |
| 23820-65D01-000 |
CYLINDER ASSY,CLUTCH OPERATING |
Mt cl master cyl (MT:RHD) |
| 23830-65DB0-000 |
Pipe comp,clutch oil |
Mt cl master cyl (MT:RHD) |
| 23850-65DA0-000 |
Hose comp,clutch oil |
Mt cl master cyl (MT:RHD) |
| 23875-65D00-000 |
PIN,CLUTCH MASTER CYL JOINT |
Mt cl master cyl (MT:RHD) |
