SQ416Q

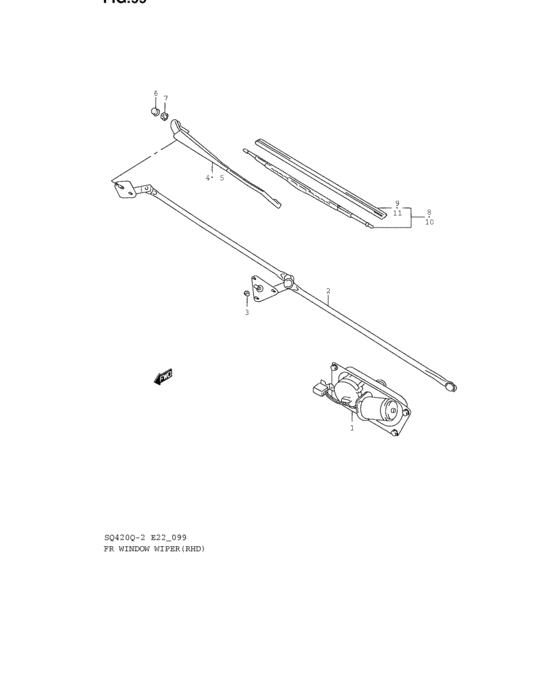

Front window wiper (RHD) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-65D10-000 | MOTOR&BRACKET ASSY,WIPER |
| 2 | 38102-65D10-000 | LINK ASSY,WIPER |
| 3 | 08316-10063-000 | Nut |
| 3 | 08316-1006B-000 | NUT |
| 4 | 38310-65D10-000 | ARM ASSY,WIPER,R |
| 5 | 38330-65D10-000 | ARM ASSY,WIPER,L |
| 6 | 38315-60B10-000 | Cap - Cap, wiper arm |
| 6 | 38315-60B11-000 | CAP,WIPER PIVOT |
| 7 | 08310-00083-000 | Nut |
| 7 | 08310-0008B-000 | NUT |
| 7 | 08310-0008A-000 | NUT - Nut, bead stopper |
| 8 | 38340-65D21-000 | BLADE ASSY,WIPER |
| 9 | 38346-65D11-000 | RUBBER,BLADE |
| 10 | 38340-65D31-000 | BLADE ASSY,WIPER |
| OEM | Part name | Category |
|---|---|---|
| 08310-00083-000 | Nut | Front window wiper (RHD) |
| 08310-0008A-000 | NUT - Nut, bead stopper | Front window wiper (RHD) |
| 08310-0008B-000 | NUT | Front window wiper (RHD) |
| 08316-10063-000 | Nut | Front window wiper (RHD) |
| 08316-1006B-000 | NUT | Front window wiper (RHD) |
| 38101-65D10-000 | MOTOR&BRACKET ASSY,WIPER | Front window wiper (RHD) |
| 38102-65D10-000 | LINK ASSY,WIPER | Front window wiper (RHD) |
| 38310-65D10-000 | ARM ASSY,WIPER,R | Front window wiper (RHD) |
| 38315-60B10-000 | Cap - Cap, wiper arm | Front window wiper (RHD) |
| 38315-60B11-000 | CAP,WIPER PIVOT | Front window wiper (RHD) |
| 38330-65D10-000 | ARM ASSY,WIPER,L | Front window wiper (RHD) |
| 38340-65D21-000 | BLADE ASSY,WIPER | Front window wiper (RHD) |
| 38340-65D31-000 | BLADE ASSY,WIPER | Front window wiper (RHD) |
| 38346-65D11-000 | RUBBER,BLADE | Front window wiper (RHD) |
