SQ416Q

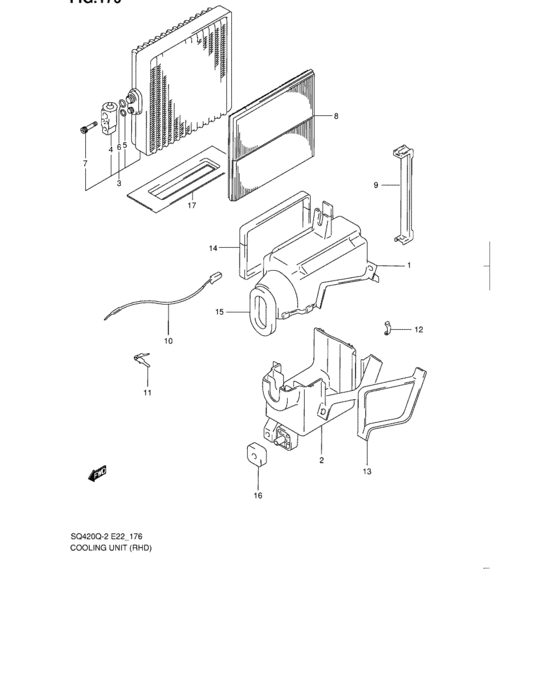

Cooling unit (RHD) 18
| # | OEM | Part name |
|---|---|---|
| 0 | 95400-65D23-000 | COOLING UNIT |
| 1 | 95421-65D00-000 | CASE,UPPER |
| 2 | 95422-65D00-000 | CASE,LOWER |
| 3 | 95410-65D01-000 | EVAPORATOR ASSY |
| 4 | 95431-65D10-000 | VALVE,EXPANSION |
| 5 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 |
| 6 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 7 | 07130-05407-000 | Bolt |
| 8 | 95861-65D00-000 | FILTER |
| 9 | 95423-65D00-000 | COVER,FILTER |
| 10 | 95541-65D01-000 | THERMISTOR |
| 11 | 95452-70B21-000 | CLAMP,THERMISTER |
| 12 | 74316-85500-000 | CLAMP - Clamp, case |
| 13 | 95461-65D00-000 | PACKING,INLET |
| 14 | 95462-65D00-000 | PACKING,OUTLET |
| 15 | 95463-65D00-000 | PACKING,DASH |
| 16 | 95464-65D00-000 | PACKING,DRAIN |
| 17 | 95465-65D00-000 | PACKING,EVAPORATOR LOWER |
| OEM | Part name | Category |
|---|---|---|
| 07130-05407-000 | Bolt | Cooling unit (RHD) |
| 74316-85500-000 | CLAMP - Clamp, case | Cooling unit (RHD) |
| 95400-65D23-000 | COOLING UNIT | Cooling unit (RHD) |
| 95410-65D01-000 | EVAPORATOR ASSY | Cooling unit (RHD) |
| 95421-65D00-000 | CASE,UPPER | Cooling unit (RHD) |
| 95422-65D00-000 | CASE,LOWER | Cooling unit (RHD) |
| 95423-65D00-000 | COVER,FILTER | Cooling unit (RHD) |
| 95431-65D10-000 | VALVE,EXPANSION | Cooling unit (RHD) |
| 95452-70B21-000 | CLAMP,THERMISTER | Cooling unit (RHD) |
| 95461-65D00-000 | PACKING,INLET | Cooling unit (RHD) |
| 95462-65D00-000 | PACKING,OUTLET | Cooling unit (RHD) |
| 95463-65D00-000 | PACKING,DASH | Cooling unit (RHD) |
| 95464-65D00-000 | PACKING,DRAIN | Cooling unit (RHD) |
| 95465-65D00-000 | PACKING,EVAPORATOR LOWER | Cooling unit (RHD) |
| 95541-65D01-000 | THERMISTOR | Cooling unit (RHD) |
| 95861-65D00-000 | FILTER | Cooling unit (RHD) |
| 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | Cooling unit (RHD) |
| 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | Cooling unit (RHD) |
