Search › Model › SQ416Q
SQ416Q

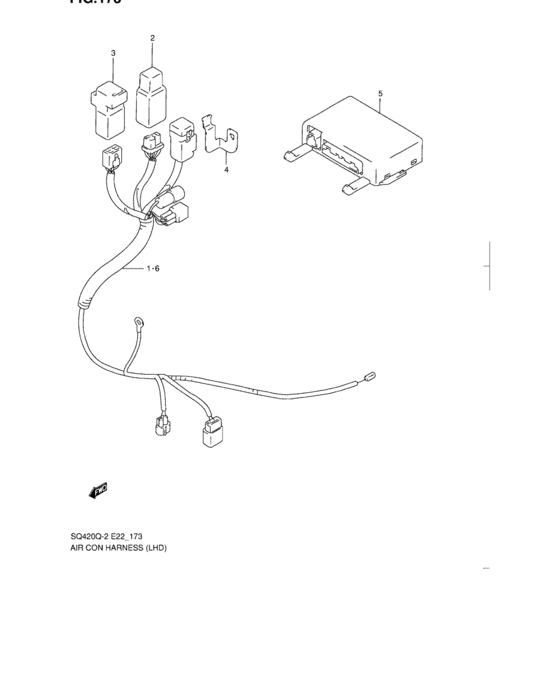

Air con control (LHD) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 95531-67D11-000 | Harness,eng room |
| 1 | 95531-67D30-000 | Harness,eng room |
| 2 | 95576-73A00-000 | RELAY ASSY,CLG FAN |
| 3 | 38860-70E20-000 | RELAY ASSY,HORN |
| 4 | 95582-67D01-000 | Bracket,a/c relay |
| 5 | 95510-64G00-000 | CONTROLLER,A/C |
| 6 | 95531-67D20-000 | Harness,eng room |
| OEM | Part name | Category |
|---|---|---|
| 38860-70E20-000 | RELAY ASSY,HORN | Air con control (LHD) |
| 95510-64G00-000 | CONTROLLER,A/C | Air con control (LHD) |
| 95531-67D11-000 | Harness,eng room | Air con control (LHD) |
| 95531-67D20-000 | Harness,eng room | Air con control (LHD) |
| 95531-67D30-000 | Harness,eng room | Air con control (LHD) |
| 95576-73A00-000 | RELAY ASSY,CLG FAN | Air con control (LHD) |
| 95582-67D01-000 | Bracket,a/c relay | Air con control (LHD) |
