Search › Model › SQ416L
SQ416L

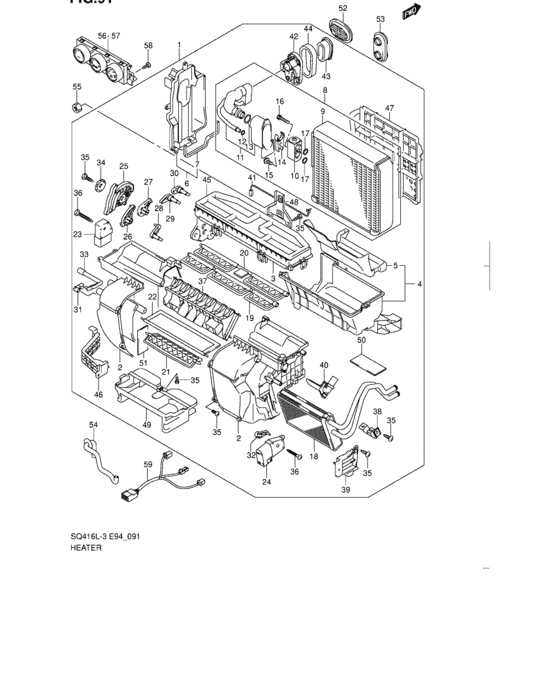

Heater (HEATER) 112
| # | OEM | Part name |
|---|---|---|
| 1 | 74100-54JA0-000 | Heater unit |
| 1 | 74100-54J00-000 | Heater unit |
| 1 | 74100-54J80-000 | HEATER UNIT |
| 1 | 74100-65D40-000 | ヒータユニット |
| 1 | 74100-65D41-000 | HEATER UNIT |
| 2 | 74110-54820-000 | Case,htr |
| 2 | 74110-54860-000 | CASE,HTR |
| 2 | 74111-65D00-000 | CASE,HEATER,UPPER |
| 3 | 74113-54J00-000 | CASE,HTR,UPPER |
| 3 | 74112-65D00-000 | CASE,HEATER,LOWER |
| 4 | 74115-54J00-000 | CASE,LOWER |
| 4 | 74113-65D00-000 | CASE,HEATER,SUB |
| 5 | 95461-54J00-000 | PLATE |
| 5 | 74114-65D00-000 | ケース,ヒータフットダクト |
| 5 | 74114-65D02-000 | CASE,HEATER FOOT DUCT |
| 6 | 74117-54J00-000 | DUCT,JOINT |
| 6 | 74115-65D00-000 | Bolt |
| 7 | 74179-54J00-000 | SEAL |
| 7 | 74133-82000-000 | CLAMP,CASE |
| 8 | 95410-54J00-000 | EVAPORATOR ASSY |
| 8 | 74151-50F00-000 | CABLE |
| 9 | 95411-54J00-000 | CORE,EVAPORATOR |
| 9 | 74120-65D00-000 | CORE,HEATER |
| 10 | 95431-54J00-000 | VALVE,EXPANSION |
| 10 | 74121-65D00-000 | BRACKET,PIPE |
| 11 | 95432-54J00-000 | PIPE ASSY |
| 11 | 74122-65D00-000 | CLAMP,PIPE |
| 12 | 95891-54J00-000 | O-RING |
| 13 | 95896-54J00-000 | O-RING |
| 13 | 74171-65D00-000 | DOOR,FACE |
| 14 | 95433-54J00-000 | PLATE |
| 14 | 74182-65D00-000 | LEVER,FACE |
| 15 | 01580-06253-000 | Bolt, ignition - Bolt, front |
| 15 | 01580-0625A-000 | Bolt |
| 15 | 74172-65D00-000 | DOOR,FOOT |
| 16 | 07130-05357-000 | Bolt |
| 16 | 74183-65D00-000 | LEVER,FOOT |
| 17 | 95897-54J00-000 | O-RING |
| 17 | 74173-65D00-000 | DOOR,DEFROSTER |
| 18 | 74120-54J00-000 | CORE,HTR |
| 18 | 74184-65D00-000 | LEVER,DEF |
| 19 | 74171-54J00-000 | DOOR,VENT |
| 19 | 74174-65D00-000 | DOOR,A/M |
| 20 | 74172-54J00-000 | DOOR,DEFROSTER |
| 20 | 74116-65D00-000 | SPRING |
| 21 | 74173-54J00-000 | DOOR,FOOT |
| 21 | 74191-65D00-000 | LEVER,A/M MAIN |
| 22 | 74174-54J00-000 | DOOR,TEMP |
| 22 | 74192-65D00-000 | LEVER,A/M |
| 23 | 95653-54J00-000 | ACTUATOR,MODE |
| 23 | 03511-04163-000 | Screw |
| 23 | 03511-0416A-000 | SCREW |
| 24 | 95651-54J00-000 | ACTUATOR,TEMP |
| 24 | 74186-65D00-000 | LEVER,DEF SUB |
| 25 | 74181-54J00-000 | LEVER,MODE MAIN |
| 25 | 74181-65D00-000 | LEVER,MODE MAIN |
| 26 | 74182-54J00-000 | LEVER,VENT |
| 26 | 74185-65D00-000 | LEVER,FOOT SUB |
| 27 | 74183-54J00-000 | LEVER,DFR |
| 27 | 74183-82005-000 | SCREW,LINK |
| 28 | 74184-54J00-000 | LEVER,FOOT SUB |
| 29 | 74185-54J00-000 | LEVER,VENT |
| 29 | 08316-10063-000 | Nut |
| 29 | 08316-1006B-000 | NUT |
| 30 | 74186-54J00-000 | LEVER,DFR |
| 31 | 74187-54J00-000 | LEVER,FOOT |
| 31 | 74400-65D40-000 | LEVER ASSY,HTR CONT |
| 32 | 74188-54J00-000 | LEVER,AIR MXT |
| 32 | 74452-65D40-000 | CABLE,TEMP CONTROL |
| 33 | 74189-54J00-000 | LEVER,FOOT |
| 33 | 74453-65D40-000 | CABLE,F&R CONTROL |
| 34 | 74176-54J00-000 | WASHER,LINK |
| 34 | 74461-78E00-5PK | KNOB,CONTROL LEVER |
| 35 | 02112-05123-000 | Screw 5x12 |
| 35 | 02112-0512A-000 | SCREW |
| 35 | 03541-05163-000 | Screw |
| 35 | 03541-0516A-000 | SCREW |
| 36 | 74175-54J00-000 | SCREW |
| 36 | 74550-65D00-5PK | スイッチ,ヒータコントロール(ブラック) |
| 36 | 74550-65D01-5PK | SWITCH,HTR CONTROL |
| 37 | 74116-54J00-000 | GUIDE |
| 37 | 74513-63G00-000 | BULB,0.7W |
| 38 | 74123-54J00-000 | CLAMP,HTR PIPE |
| 38 | 74514-63G00-000 | BULB,0.6W |
| 39 | 74121-54J00-000 | PLATE,HTR CORE |
| 39 | 03512-05163-000 | Screw |
| 39 | 03511-0516A-000 | SCREW |
| 40 | 95656-54J00-000 | ASPIRATOR |
| 40 | 74563-65D01-000 | ACTUATOR,MODE |
| 41 | 95541-54J00-000 | THERMISTOR |
| 42 | 95434-54J00-000 | COVER,A/C BLOCK |
| 43 | 95435-54J00-000 | GROMMET,BLOCK |
| 44 | 95436-54J00-000 | PACKING |
| 45 | 74119-54J00-000 | PACKING,HEATER |
| 46 | 74118-54J20-000 | BRACKET,JOINT |
| 47 | 95482-54J00-000 | BOARD,AIR RESISTANCE |
| 48 | 74118-54J00-000 | BRACKET,UPPER |
| 49 | 74114-54J00-000 | DUCT,FOOT |
| 50 | 74122-54J00-000 | PACKING,HEATER PIPE |
| 51 | 74177-54J00-000 | PACKING |
| 52 | 74812-82030-000 | GROMMET,HTR |
| 53 | 74812-77E00-000 | GROMMET,HTR |
| 54 | 95481-54J00-000 | HOSE,DRAIN |
| 55 | 09159-06081-000 | NUT |
| 56 | 74400-54J01-5PK | Control unit, heater - Black |
| 56 | 74400-54J02-5PK | CONTROL UNIT,HTR |
| 56 | 74400-54J12-5PK | CONTROL UNIT,HTR |
| 57 | 95610-54J02-5PK | PANEL UNITAUTO AC |
| 57 | 95610-54J04-5PK | PANEL UNIT,AUTO A/C |
| 58 | 03541-05123-000 | Screw |
| 58 | 03541-0512B-000 | SCREW |
| 59 | 74156-54J00-000 | HARNESS,JOINT |
| OEM | Part name | Category |
|---|---|---|
| 01580-06253-000 | Bolt, ignition - Bolt, front | Heater (HEATER) |
| 01580-0625A-000 | Bolt | Heater (HEATER) |
| 02112-05123-000 | Screw 5x12 | Heater (HEATER) |
| 02112-0512A-000 | SCREW | Heater (HEATER) |
| 03511-04163-000 | Screw | Heater (HEATER) |
| 03511-0416A-000 | SCREW | Heater (HEATER) |
| 03511-0516A-000 | SCREW | Heater (HEATER) |
| 03512-05163-000 | Screw | Heater (HEATER) |
| 03541-05123-000 | Screw | Heater (HEATER) |
| 03541-0512B-000 | SCREW | Heater (HEATER) |
| 03541-05163-000 | Screw | Heater (HEATER) |
| 03541-0516A-000 | SCREW | Heater (HEATER) |
| 07130-05357-000 | Bolt | Heater (HEATER) |
| 08316-10063-000 | Nut | Heater (HEATER) |
| 08316-1006B-000 | NUT | Heater (HEATER) |
| 09159-06081-000 | NUT | Heater (HEATER) |
| 74100-54J00-000 | Heater unit | Heater (HEATER) |
| 74100-54J80-000 | HEATER UNIT | Heater (HEATER) |
| 74100-54JA0-000 | Heater unit | Heater (HEATER) |
| 74100-65D40-000 | ヒータユニット | Heater (HEATER) |
| 74100-65D41-000 | HEATER UNIT | Heater (HEATER) |
| 74110-54820-000 | Case,htr | Heater (HEATER) |
| 74110-54860-000 | CASE,HTR | Heater (HEATER) |
| 74111-65D00-000 | CASE,HEATER,UPPER | Heater (HEATER) |
| 74112-65D00-000 | CASE,HEATER,LOWER | Heater (HEATER) |
| 74113-54J00-000 | CASE,HTR,UPPER | Heater (HEATER) |
| 74113-65D00-000 | CASE,HEATER,SUB | Heater (HEATER) |
| 74114-54J00-000 | DUCT,FOOT | Heater (HEATER) |
| 74114-65D00-000 | ケース,ヒータフットダクト | Heater (HEATER) |
| 74114-65D02-000 | CASE,HEATER FOOT DUCT | Heater (HEATER) |
| 74115-54J00-000 | CASE,LOWER | Heater (HEATER) |
| 74115-65D00-000 | Bolt | Heater (HEATER) |
| 74116-54J00-000 | GUIDE | Heater (HEATER) |
| 74116-65D00-000 | SPRING | Heater (HEATER) |
| 74117-54J00-000 | DUCT,JOINT | Heater (HEATER) |
| 74118-54J00-000 | BRACKET,UPPER | Heater (HEATER) |
| 74118-54J20-000 | BRACKET,JOINT | Heater (HEATER) |
| 74119-54J00-000 | PACKING,HEATER | Heater (HEATER) |
| 74120-54J00-000 | CORE,HTR | Heater (HEATER) |
| 74120-65D00-000 | CORE,HEATER | Heater (HEATER) |
| 74121-54J00-000 | PLATE,HTR CORE | Heater (HEATER) |
| 74121-65D00-000 | BRACKET,PIPE | Heater (HEATER) |
| 74122-54J00-000 | PACKING,HEATER PIPE | Heater (HEATER) |
| 74122-65D00-000 | CLAMP,PIPE | Heater (HEATER) |
| 74123-54J00-000 | CLAMP,HTR PIPE | Heater (HEATER) |
| 74133-82000-000 | CLAMP,CASE | Heater (HEATER) |
| 74151-50F00-000 | CABLE | Heater (HEATER) |
| 74156-54J00-000 | HARNESS,JOINT | Heater (HEATER) |
| 74171-54J00-000 | DOOR,VENT | Heater (HEATER) |
| 74171-65D00-000 | DOOR,FACE | Heater (HEATER) |
| 74172-54J00-000 | DOOR,DEFROSTER | Heater (HEATER) |
| 74172-65D00-000 | DOOR,FOOT | Heater (HEATER) |
| 74173-54J00-000 | DOOR,FOOT | Heater (HEATER) |
| 74173-65D00-000 | DOOR,DEFROSTER | Heater (HEATER) |
| 74174-54J00-000 | DOOR,TEMP | Heater (HEATER) |
| 74174-65D00-000 | DOOR,A/M | Heater (HEATER) |
| 74175-54J00-000 | SCREW | Heater (HEATER) |
| 74176-54J00-000 | WASHER,LINK | Heater (HEATER) |
| 74177-54J00-000 | PACKING | Heater (HEATER) |
| 74179-54J00-000 | SEAL | Heater (HEATER) |
| 74181-54J00-000 | LEVER,MODE MAIN | Heater (HEATER) |
| 74181-65D00-000 | LEVER,MODE MAIN | Heater (HEATER) |
| 74182-54J00-000 | LEVER,VENT | Heater (HEATER) |
| 74182-65D00-000 | LEVER,FACE | Heater (HEATER) |
| 74183-54J00-000 | LEVER,DFR | Heater (HEATER) |
| 74183-65D00-000 | LEVER,FOOT | Heater (HEATER) |
| 74183-82005-000 | SCREW,LINK | Heater (HEATER) |
| 74184-54J00-000 | LEVER,FOOT SUB | Heater (HEATER) |
| 74184-65D00-000 | LEVER,DEF | Heater (HEATER) |
| 74185-54J00-000 | LEVER,VENT | Heater (HEATER) |
| 74185-65D00-000 | LEVER,FOOT SUB | Heater (HEATER) |
| 74186-54J00-000 | LEVER,DFR | Heater (HEATER) |
| 74186-65D00-000 | LEVER,DEF SUB | Heater (HEATER) |
| 74187-54J00-000 | LEVER,FOOT | Heater (HEATER) |
| 74188-54J00-000 | LEVER,AIR MXT | Heater (HEATER) |
| 74189-54J00-000 | LEVER,FOOT | Heater (HEATER) |
| 74191-65D00-000 | LEVER,A/M MAIN | Heater (HEATER) |
| 74192-65D00-000 | LEVER,A/M | Heater (HEATER) |
| 74400-54J01-5PK | Control unit, heater - Black | Heater (HEATER) |
| 74400-54J02-5PK | CONTROL UNIT,HTR | Heater (HEATER) |
| 74400-54J12-5PK | CONTROL UNIT,HTR | Heater (HEATER) |
| 74400-65D40-000 | LEVER ASSY,HTR CONT | Heater (HEATER) |
| 74452-65D40-000 | CABLE,TEMP CONTROL | Heater (HEATER) |
| 74453-65D40-000 | CABLE,F&R CONTROL | Heater (HEATER) |
| 74461-78E00-5PK | KNOB,CONTROL LEVER | Heater (HEATER) |
| 74513-63G00-000 | BULB,0.7W | Heater (HEATER) |
| 74514-63G00-000 | BULB,0.6W | Heater (HEATER) |
| 74550-65D00-5PK | スイッチ,ヒータコントロール(ブラック) | Heater (HEATER) |
| 74550-65D01-5PK | SWITCH,HTR CONTROL | Heater (HEATER) |
| 74563-65D01-000 | ACTUATOR,MODE | Heater (HEATER) |
| 74812-77E00-000 | GROMMET,HTR | Heater (HEATER) |
| 74812-82030-000 | GROMMET,HTR | Heater (HEATER) |
| 95410-54J00-000 | EVAPORATOR ASSY | Heater (HEATER) |
| 95411-54J00-000 | CORE,EVAPORATOR | Heater (HEATER) |
| 95431-54J00-000 | VALVE,EXPANSION | Heater (HEATER) |
| 95432-54J00-000 | PIPE ASSY | Heater (HEATER) |
| 95433-54J00-000 | PLATE | Heater (HEATER) |
| 95434-54J00-000 | COVER,A/C BLOCK | Heater (HEATER) |
| 95435-54J00-000 | GROMMET,BLOCK | Heater (HEATER) |
| 95436-54J00-000 | PACKING | Heater (HEATER) |
| 95461-54J00-000 | PLATE | Heater (HEATER) |
| 95481-54J00-000 | HOSE,DRAIN | Heater (HEATER) |
| 95482-54J00-000 | BOARD,AIR RESISTANCE | Heater (HEATER) |
| 95541-54J00-000 | THERMISTOR | Heater (HEATER) |
| 95610-54J02-5PK | PANEL UNITAUTO AC | Heater (HEATER) |
| 95610-54J04-5PK | PANEL UNIT,AUTO A/C | Heater (HEATER) |
| 95651-54J00-000 | ACTUATOR,TEMP | Heater (HEATER) |
| 95653-54J00-000 | ACTUATOR,MODE | Heater (HEATER) |
| 95656-54J00-000 | ASPIRATOR | Heater (HEATER) |
| 95891-54J00-000 | O-RING | Heater (HEATER) |
| 95896-54J00-000 | O-RING | Heater (HEATER) |
| 95897-54J00-000 | O-RING | Heater (HEATER) |
