Search › Model › SQ416L
SQ416L

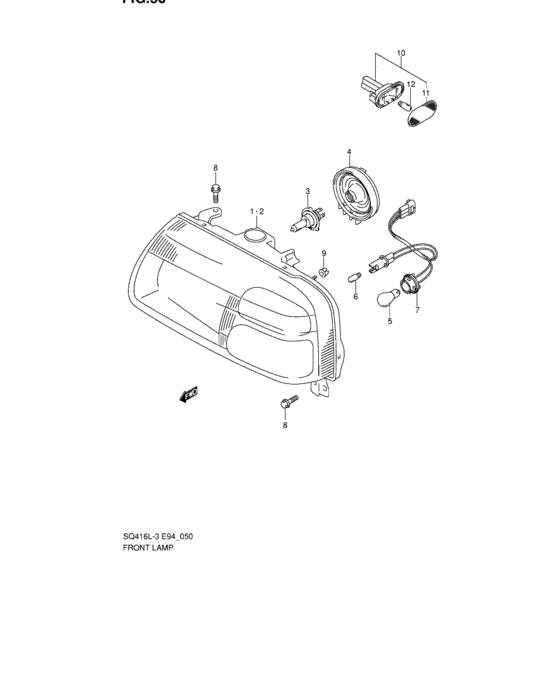

Front lamp (FRONT LAMP) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-65D11-000 | UNIT,HEADLAMP,R |
| 1 | 35120-65D10-000 | Unit, headlamp rh |
| 2 | 35320-65D11-000 | UNIT,HEADLAMP,L |
| 2 | 35320-65D10-000 | Unit, headlamp lh |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-65D00-000 | COVER,SOCKET |
| 5 | 09471-12186-000 | BULB(12V21W,AMBER) |
| 6 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 6 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 7 | 35618-65D00-000 | SOCKET&CORD ASSY |
| 8 | 02162-06123-000 | Bolt (6x12) |
| 8 | 02162-0612B-000 | SCREW - Bolt |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 9 | 35153-60G00-000 | GROMMET,LAMP |
| 10 | 36410-75F01-000 | LAMP ASSY,SIDE TURN SIG |
| 10 | 36410-50E01-000 | LAMP,SIDE TURN(HSG |
| 11 | 36412-75F00-000 | LENS,SIDE TURN |
| 11 | 36412-70B00-000 | LENS,SIDE TURN (AMBER) |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | Front lamp (FRONT LAMP) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Front lamp (FRONT LAMP) |
| 02162-0612B-000 | SCREW - Bolt | Front lamp (FRONT LAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Front lamp (FRONT LAMP) |
| 09471-12182-000 | BULB(12V60/55W,H4) | Front lamp (FRONT LAMP) |
| 09471-12186-000 | BULB(12V21W,AMBER) | Front lamp (FRONT LAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Front lamp (FRONT LAMP) |
| 35120-65D10-000 | Unit, headlamp rh | Front lamp (FRONT LAMP) |
| 35120-65D11-000 | UNIT,HEADLAMP,R | Front lamp (FRONT LAMP) |
| 35125-65D00-000 | COVER,SOCKET | Front lamp (FRONT LAMP) |
| 35153-60G00-000 | GROMMET,LAMP | Front lamp (FRONT LAMP) |
| 35320-65D10-000 | Unit, headlamp lh | Front lamp (FRONT LAMP) |
| 35320-65D11-000 | UNIT,HEADLAMP,L | Front lamp (FRONT LAMP) |
| 35618-65D00-000 | SOCKET&CORD ASSY | Front lamp (FRONT LAMP) |
| 36410-50E01-000 | LAMP,SIDE TURN(HSG | Front lamp (FRONT LAMP) |
| 36410-75F01-000 | LAMP ASSY,SIDE TURN SIG | Front lamp (FRONT LAMP) |
| 36412-70B00-000 | LENS,SIDE TURN (AMBER) | Front lamp (FRONT LAMP) |
| 36412-75F00-000 | LENS,SIDE TURN | Front lamp (FRONT LAMP) |
