Search › Model › SQ416L
SQ416L

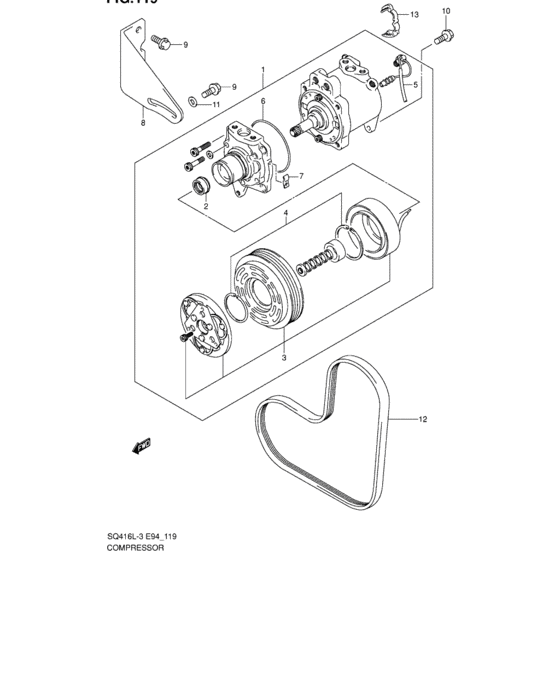

Compressor (COMPRESSOR) 37
| # | OEM | Part name |
|---|---|---|
| 1 | 95200-70CG0-000 | コンプレッサアッシ,A/C |
| 1 | 95200-70CG1-000 | COMPRESSOR ASSY |
| 1 | 95200-70CF0-000 | コンプレッサアッシ,A/C |
| 1 | 99000-99088-70C | COMPRESSOR ASSY |
| 1 | 95200-70CF1-000 | AC COMPRESSOR ASSY |
| 2 | 95261-70B00-000 | Seal, lip |
| 3 | 95210-64A02-000 | Clutch,magneto |
| 3 | 95210-64A03-000 | CLUTCH,MAGNET |
| 3 | 95210-70CC0-000 | CLUTCH ASSY |
| 3 | 99000-99088-71C | CLUTCH ASSY. |
| 3 | 95210-70CC1-000 | CLUTCH ASSY |
| 4 | 95298-72B20-000 | Clip kit |
| 4 | 95298-72B21-000 | CLIP KIT |
| 5 | 95527-70CA0-000 | SWITCH,THERMAL |
| 5 | 95527-72B00-000 | SWITCH,THERMAL |
| 5 | 95527-72B01-000 | SWITCH,THERMAL |
| 6 | 95262-70B00-000 | O ring |
| 7 | 95291-70B00-000 | FIXING PLATE |
| 8 | 95120-57B00-000 | STAY,COMPRESSOR |
| 9 | 01550-08203-000 | Bolt |
| 9 | 01550-0820B-000 | Bolt |
| 9 | 01550-0820A-000 | Bolt - Bolt, funnel bracket |
| 10 | 01550-08253-000 | Bolt, rear |
| 10 | 01550-0825B-000 | Bolt |
| 10 | 01550-0825A-000 | Bolt |
| 11 | 09160-08501-000 | WASHER(8.5X24X2.3) |
| 12 | 95141-64A10-000 | V-BELT,4PK 950 |
| 12 | 49180-60B10-CDN | Belt,air cond.4pk950 |
| 12 | 95110-77E52-000 | BRACKET,COMPRESSOR |
| 13 | 09408-00184-000 | CLAMP |
| 13 | 01550-10353-000 | Bolt |
| 13 | 01550-1035A-000 | Bolt - Bolt, fr fork upper |
| 14 | 01550-08353-000 | Bolt, rear |
| 14 | 01550-0835B-000 | Bolt |
| 14 | 01550-0835A-000 | Bolt |
| 15 | 17521-52E00-000 | V-BELT, 4PK950 |
| 15 | 95141-60G90-000 | V-BELT,5PK1650 |
| OEM | Part name | Category |
|---|---|---|
| 01550-08203-000 | Bolt | Compressor (COMPRESSOR) |
| 01550-0820A-000 | Bolt - Bolt, funnel bracket | Compressor (COMPRESSOR) |
| 01550-0820B-000 | Bolt | Compressor (COMPRESSOR) |
| 01550-08253-000 | Bolt, rear | Compressor (COMPRESSOR) |
| 01550-0825A-000 | Bolt | Compressor (COMPRESSOR) |
| 01550-0825B-000 | Bolt | Compressor (COMPRESSOR) |
| 01550-08353-000 | Bolt, rear | Compressor (COMPRESSOR) |
| 01550-0835A-000 | Bolt | Compressor (COMPRESSOR) |
| 01550-0835B-000 | Bolt | Compressor (COMPRESSOR) |
| 01550-10353-000 | Bolt | Compressor (COMPRESSOR) |
| 01550-1035A-000 | Bolt - Bolt, fr fork upper | Compressor (COMPRESSOR) |
| 09160-08501-000 | WASHER(8.5X24X2.3) | Compressor (COMPRESSOR) |
| 09408-00184-000 | CLAMP | Compressor (COMPRESSOR) |
| 17521-52E00-000 | V-BELT, 4PK950 | Compressor (COMPRESSOR) |
| 49180-60B10-CDN | Belt,air cond.4pk950 | Compressor (COMPRESSOR) |
| 95110-77E52-000 | BRACKET,COMPRESSOR | Compressor (COMPRESSOR) |
| 95120-57B00-000 | STAY,COMPRESSOR | Compressor (COMPRESSOR) |
| 95141-60G90-000 | V-BELT,5PK1650 | Compressor (COMPRESSOR) |
| 95141-64A10-000 | V-BELT,4PK 950 | Compressor (COMPRESSOR) |
| 95200-70CF0-000 | コンプレッサアッシ,A/C | Compressor (COMPRESSOR) |
| 95200-70CF1-000 | AC COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 95200-70CG0-000 | コンプレッサアッシ,A/C | Compressor (COMPRESSOR) |
| 95200-70CG1-000 | COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 95210-64A02-000 | Clutch,magneto | Compressor (COMPRESSOR) |
| 95210-64A03-000 | CLUTCH,MAGNET | Compressor (COMPRESSOR) |
| 95210-70CC0-000 | CLUTCH ASSY | Compressor (COMPRESSOR) |
| 95210-70CC1-000 | CLUTCH ASSY | Compressor (COMPRESSOR) |
| 95261-70B00-000 | Seal, lip | Compressor (COMPRESSOR) |
| 95262-70B00-000 | O ring | Compressor (COMPRESSOR) |
| 95291-70B00-000 | FIXING PLATE | Compressor (COMPRESSOR) |
| 95298-72B20-000 | Clip kit | Compressor (COMPRESSOR) |
| 95298-72B21-000 | CLIP KIT | Compressor (COMPRESSOR) |
| 95527-70CA0-000 | SWITCH,THERMAL | Compressor (COMPRESSOR) |
| 95527-72B00-000 | SWITCH,THERMAL | Compressor (COMPRESSOR) |
| 95527-72B01-000 | SWITCH,THERMAL | Compressor (COMPRESSOR) |
| 99000-99088-70C | COMPRESSOR ASSY | Compressor (COMPRESSOR) |
| 99000-99088-71C | CLUTCH ASSY. | Compressor (COMPRESSOR) |
