SQ416L

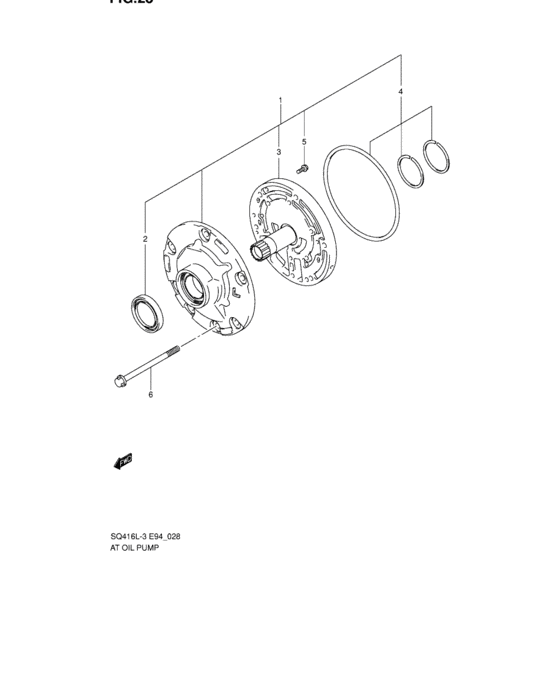

At oil pump (AT OIL PUMP) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-54D10-000 | ポンプアッシ,オイル |
| 1 | 22800-54D11-000 | PUMP ASSY,OIL |
| 2 | 29799-54D10-000 | SEAL,OIL PUMP BODY |
| 3 | 22820-57B00-000 | COVER,OIL PUMP |
| 4 | 22860-57BT0-000 | RING SET,OIL PUMP SEAL |
| 5 | 29999-57B00-000 | Bolt |
| 6 | 29998-57B00-000 | BOLT,OIL PUMP |
| OEM | Part name | Category |
|---|---|---|
| 22800-54D10-000 | ポンプアッシ,オイル | At oil pump (AT OIL PUMP) |
| 22800-54D11-000 | PUMP ASSY,OIL | At oil pump (AT OIL PUMP) |
| 22820-57B00-000 | COVER,OIL PUMP | At oil pump (AT OIL PUMP) |
| 22860-57BT0-000 | RING SET,OIL PUMP SEAL | At oil pump (AT OIL PUMP) |
| 29799-54D10-000 | SEAL,OIL PUMP BODY | At oil pump (AT OIL PUMP) |
| 29998-57B00-000 | BOLT,OIL PUMP | At oil pump (AT OIL PUMP) |
| 29999-57B00-000 | Bolt | At oil pump (AT OIL PUMP) |
