Search › Model › SP306

SP306

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2,436 parts · 120 categories

2,436 items

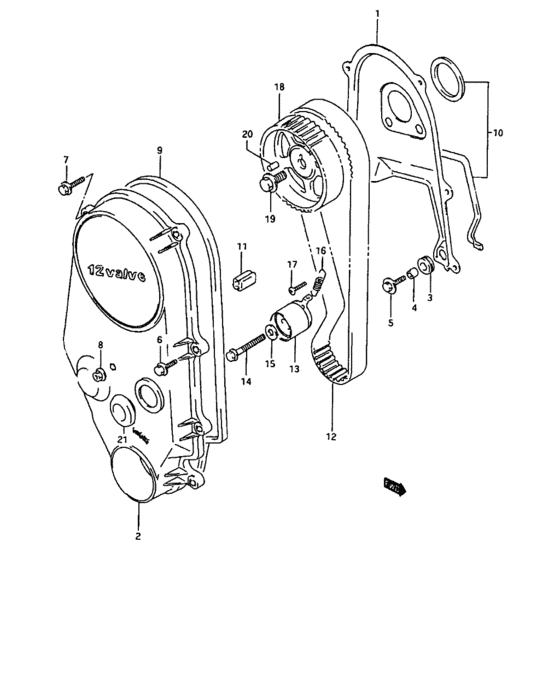

Timing belt (TIMING BELT) 35

#	OEM	Part name
1	11360-61C00-000	COVER,TIMING BELT INSIDE
2	11390-71B12-000	カバー,タイミングベルト,アウトサイド
2	11390-71B02-000	COVER,TIMING BELT,OUTSIDE
3	09308-10004-000	GROMMET
4	09180-06106-000	SPACER(6.8X10X7)
5	09116-06167-000	BOLT(6X20) - Bolt (6x20)
6	01550-06163-000	Bolt
6	01550-0616B-000	Bolt
6	01550-0616A-000	Bolt
7	01550-06203-000	Bolt
7	01550-0620B-000	Bolt - Bolt, inspection cap
8	08316-10063-000	Nut
8	08316-1006B-000	NUT
9	11396-71C00-000	SEAL,TIMING BELT COVER OUT
10	11480-60D00-000	SEAL SET,TIMING BELT COVER
11	11394-70B00-000	SEAL
12	12761-71D10-000	Belt, timing
12	11407-71D30-000	TIMING BELT
13	12810-81402-000	TENSIONER ASSY,TIMING BELT
14	01550-08403-000	Bolt
14	01550-0840B-000	Bolt
14	01550-0840A-000	Bolt
15	08322-01083-000	WASHER
15	08322-0108B-000	WASHER
15	08322-0108A-000	WASHER
16	12821-61D00-000	SPRING,TENSIONER
17	02112-06203-000	Screw
17	02112-0620B-000	SCREW
17	02112-0620A-000	SCREW - Screw, holder
18	12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT
19	01550-12253-000	Bolt
19	01550-1225A-000	Bolt
20	04221-05109-000	PIN
21	09250-30017-000	キャップ,OD:36
21	11389-50F00-000	PLUG,TIMING BELT COVER

OEM	Part name	Category
01550-06163-000	Bolt	Timing belt (TIMING BELT)
01550-0616A-000	Bolt	Timing belt (TIMING BELT)
01550-0616B-000	Bolt	Timing belt (TIMING BELT)
01550-06203-000	Bolt	Timing belt (TIMING BELT)
01550-0620B-000	Bolt - Bolt, inspection cap	Timing belt (TIMING BELT)
01550-08403-000	Bolt	Timing belt (TIMING BELT)
01550-0840A-000	Bolt	Timing belt (TIMING BELT)
01550-0840B-000	Bolt	Timing belt (TIMING BELT)
01550-12253-000	Bolt	Timing belt (TIMING BELT)
01550-1225A-000	Bolt	Timing belt (TIMING BELT)
02112-06203-000	Screw	Timing belt (TIMING BELT)
02112-0620A-000	SCREW - Screw, holder	Timing belt (TIMING BELT)
02112-0620B-000	SCREW	Timing belt (TIMING BELT)
04221-05109-000	PIN	Timing belt (TIMING BELT)
08316-10063-000	Nut	Timing belt (TIMING BELT)
08316-1006B-000	NUT	Timing belt (TIMING BELT)
08322-01083-000	WASHER	Timing belt (TIMING BELT)
08322-0108A-000	WASHER	Timing belt (TIMING BELT)
08322-0108B-000	WASHER	Timing belt (TIMING BELT)
09116-06167-000	BOLT(6X20) - Bolt (6x20)	Timing belt (TIMING BELT)
09180-06106-000	SPACER(6.8X10X7)	Timing belt (TIMING BELT)
09250-30017-000	キャップ,OD:36	Timing belt (TIMING BELT)
09308-10004-000	GROMMET	Timing belt (TIMING BELT)
11360-61C00-000	COVER,TIMING BELT INSIDE	Timing belt (TIMING BELT)
11389-50F00-000	PLUG,TIMING BELT COVER	Timing belt (TIMING BELT)
11390-71B02-000	COVER,TIMING BELT,OUTSIDE	Timing belt (TIMING BELT)
11390-71B12-000	カバー,タイミングベルト,アウトサイド	Timing belt (TIMING BELT)
11394-70B00-000	SEAL	Timing belt (TIMING BELT)
11396-71C00-000	SEAL,TIMING BELT COVER OUT	Timing belt (TIMING BELT)
11407-71D30-000	TIMING BELT	Timing belt (TIMING BELT)
11480-60D00-000	SEAL SET,TIMING BELT COVER	Timing belt (TIMING BELT)
12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT	Timing belt (TIMING BELT)
12761-71D10-000	Belt, timing	Timing belt (TIMING BELT)
12810-81402-000	TENSIONER ASSY,TIMING BELT	Timing belt (TIMING BELT)
12821-61D00-000	SPRING,TENSIONER	Timing belt (TIMING BELT)
