SP306

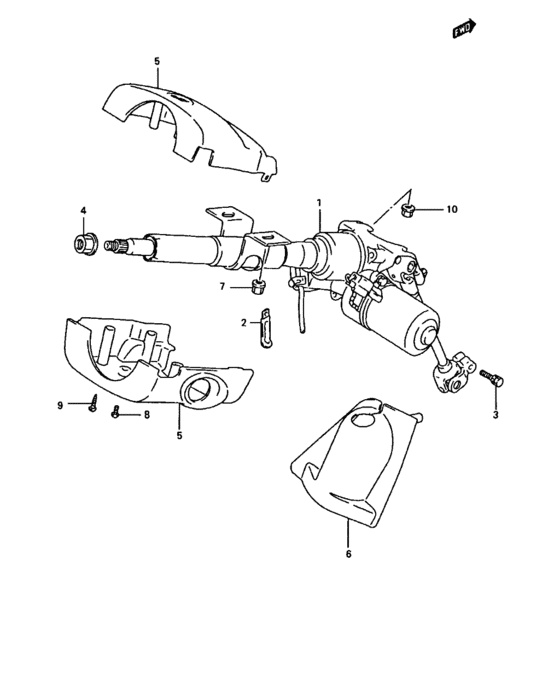

Steering column (TYPE 2) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 48200-74FB0-000 | Column assy, collapsible,steering |
| 1 | 48200-74FB3-000 | COLUMN ASSY,COLPS STRG |
| 2 | 09404-08207-000 | CLAMP(L:80) |
| 2 | 09404-08212-000 | Clamp |
| 3 | 09117-08053-000 | BOLT(8X30) |
| 4 | 09159-12025-000 | NUT |
| 5 | 48400-74F10-T01 | COVER ASSY,STRG COLUMN |
| 6 | 48481-74F00-000 | COVER,STRG JOINT |
| 7 | 09159-08069-000 | Nut |
| 7 | 09159-08135-000 | NUT |
| 8 | 02112-05123-000 | Screw 5x12 |
| 8 | 02112-0512A-000 | SCREW |
| 9 | 03211-05123-000 | Screw |
| 9 | 03211-0512A-000 | SCREW |
| 10 | 08316-10083-000 | Nut |
| 10 | 08316-1008B-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 02112-05123-000 | Screw 5x12 | Steering column (TYPE 2) |
| 02112-0512A-000 | SCREW | Steering column (TYPE 2) |
| 03211-05123-000 | Screw | Steering column (TYPE 2) |
| 03211-0512A-000 | SCREW | Steering column (TYPE 2) |
| 08316-10083-000 | Nut | Steering column (TYPE 2) |
| 08316-1008B-000 | NUT | Steering column (TYPE 2) |
| 09117-08053-000 | BOLT(8X30) | Steering column (TYPE 2) |
| 09159-08069-000 | Nut | Steering column (TYPE 2) |
| 09159-08135-000 | NUT | Steering column (TYPE 2) |
| 09159-12025-000 | NUT | Steering column (TYPE 2) |
| 09404-08207-000 | CLAMP(L:80) | Steering column (TYPE 2) |
| 09404-08212-000 | Clamp | Steering column (TYPE 2) |
| 48200-74FB0-000 | Column assy, collapsible,steering | Steering column (TYPE 2) |
| 48200-74FB3-000 | COLUMN ASSY,COLPS STRG | Steering column (TYPE 2) |
| 48400-74F10-T01 | COVER ASSY,STRG COLUMN | Steering column (TYPE 2) |
| 48481-74F00-000 | COVER,STRG JOINT | Steering column (TYPE 2) |
