SP306

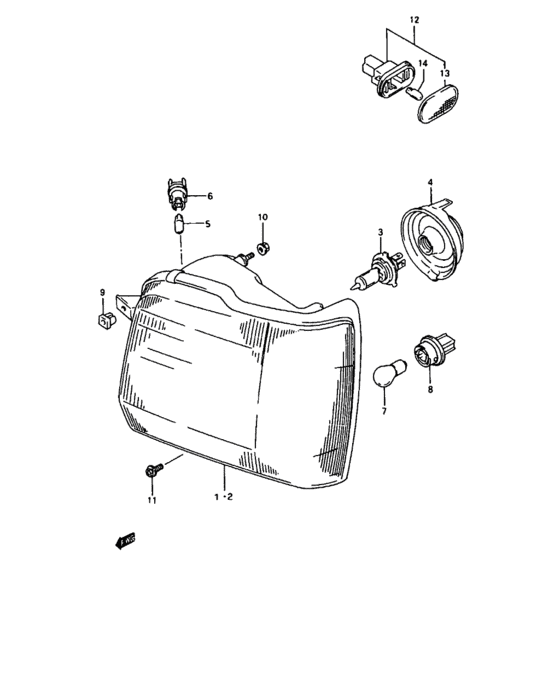

Head lamp (HEAD LAMP) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-74F00-000 | UNIT,HEADLAMP,R |
| 2 | 35320-74F00-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-74F00-000 | COVER,SOCKET |
| 5 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 5 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 6 | 36118-74F00-000 | SOCKET,POSITION LAMP |
| 7 | 09471-12045-000 | BULB(12V21W) |
| 8 | 36118-74F10-000 | SOCKET,TURN LAMP |
| 9 | 09148-05040-000 | NUT |
| 10 | 08316-10063-000 | Nut |
| 10 | 08316-1006B-000 | NUT |
| 11 | 09122-76001-000 | SCREW(6X16) |
| 12 | 36410-50E01-000 | LAMP,SIDE TURN(HSG |
| 13 | 36412-70B00-000 | LENS,SIDE TURN (AMBER) |
| OEM | Part name | Category |
|---|---|---|
| 08316-10063-000 | Nut | Head lamp (HEAD LAMP) |
| 08316-1006B-000 | NUT | Head lamp (HEAD LAMP) |
| 09122-76001-000 | SCREW(6X16) | Head lamp (HEAD LAMP) |
| 09148-05040-000 | NUT | Head lamp (HEAD LAMP) |
| 09471-12045-000 | BULB(12V21W) | Head lamp (HEAD LAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Head lamp (HEAD LAMP) |
| 09471-12182-000 | BULB(12V60/55W,H4) | Head lamp (HEAD LAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Head lamp (HEAD LAMP) |
| 35120-74F00-000 | UNIT,HEADLAMP,R | Head lamp (HEAD LAMP) |
| 35125-74F00-000 | COVER,SOCKET | Head lamp (HEAD LAMP) |
| 35320-74F00-000 | UNIT,HEADLAMP,L | Head lamp (HEAD LAMP) |
| 36118-74F00-000 | SOCKET,POSITION LAMP | Head lamp (HEAD LAMP) |
| 36118-74F10-000 | SOCKET,TURN LAMP | Head lamp (HEAD LAMP) |
| 36410-50E01-000 | LAMP,SIDE TURN(HSG | Head lamp (HEAD LAMP) |
| 36412-70B00-000 | LENS,SIDE TURN (AMBER) | Head lamp (HEAD LAMP) |
