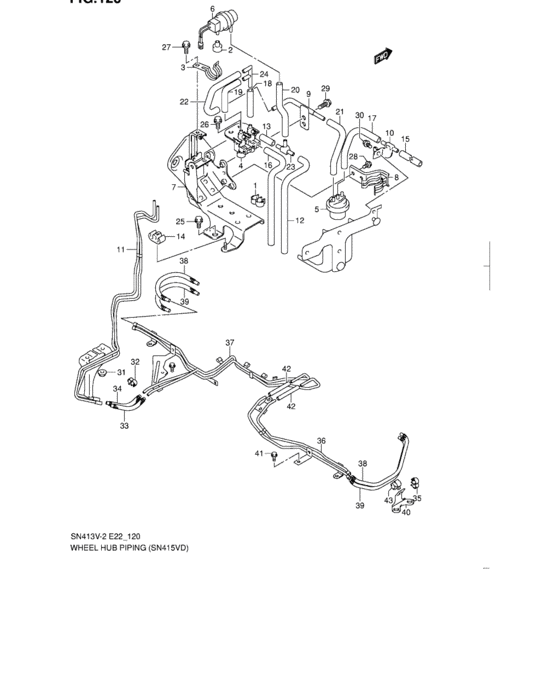

Wheel hub piping (SN415VD) 34
#OEMPart name
1 09408-00033-000 CLAMP
2 18133-80401-000 FILTER
3 18569-78100-000 CLAMP
4 27951-85600-000 VALVE,VACUUM SWITCH
5 43820-84A00-000 VALVE,VACUUM CONTROL
6 43830-81A60-000 SWITCH,VACUUM
6 43830-78R00-000 Switch Comp,vacuum
7 43840-84A00-000 BRACKET,VSV
8 43850-84A00-000 BRACKET,VCV
9 43860-84A00-000 PIPE,VCV NO.1
10 43860-84A10-000 PIPE,VCV NO.2
11 43870-84A00-000 PIPE,VALVE TO AXLE VACUUM
12 43876-84A00-000 HOSE,VSV 4WD OUTLET NO.2
13 09355-35754-601 HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
13 09355-35006-601 Hose(3.5X7.5X601)
14 51751-60B00-000 CLAMP,BRAKE PIPE
23 09367-04002-000 CONNECTOR
24 09367-04009-000 JOINT - Joint, 3 way
25 01550-08123-000 Bolt - Plug, oil gallery
25 01550-0812B-000 Bolt - Plug, drain
25 01550-0812A-000 Bolt
26 02162-06123-000 Bolt (6x12)
26 02162-0612B-000 SCREW - Bolt
26 02162-0612A-000 SCREW - Bolt, bracket
31 08316-10063-000 Nut
31 08316-1006B-000 NUT
33 43885-81A50-000 HOSE,VALVE TO AXLE VACUUM 2WD
36 43910-84A00-000 PIPE,FR AXLE HSG NO.1
37 43920-84A00-000 PIPE,FR AXLE HSG NO.2
38 43926-81A20-000 HOSE,SPINDLE VACUUM 4WD
39 43926-81A30-000 HOSE,SPINDLE VACUUM 2WD
40 45616-81A00-000 BRACKET,KINGPIN HOSE
41 09132-06006-000 SCREW(6X12)
43 09403-07306-000 CLAMP
