SN413V

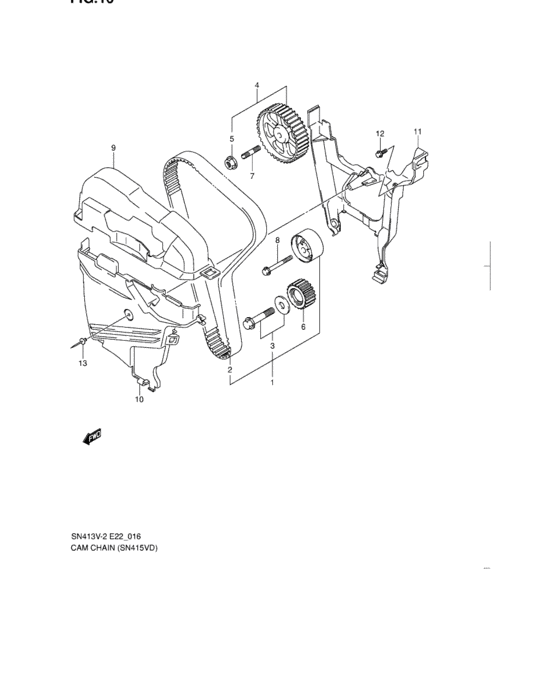

Timing belt (SN415VD) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 12760-84A00-000 | Belt & roller set, timing |
| 2 | 12761-84A00-000 | Belt, timing |
| 3 | 12636-84A10-000 | Bolt, crank pulley |
| 4 | 12741-84A00-000 | Gear set, camshaft |
| 5 | 12765-84A00-000 | Nut, camshaft pulley |
| 6 | 12631-84A00-000 | Pinion, crankshaft |
| 7 | 12766-84A00-000 | Stud bolt |
| 8 | 12767-84A00-000 | Bolt, roller - 8x60 |
| 9 | 11361-84A00-000 | Cover, timing belt upper |
| 10 | 11391-84A00-000 | Cover, timing belt lower |
| 11 | 11362-84A00-000 | Cover, timing belt inside |
| 12 | 16117-84A00-000 | Bolt - 6x18 |
| 13 | 11366-84A00-000 | Rivet, belt cover |
| OEM | Part name | Category |
|---|---|---|
| 11361-84A00-000 | Cover, timing belt upper | Timing belt (SN415VD) |
| 11362-84A00-000 | Cover, timing belt inside | Timing belt (SN415VD) |
| 11366-84A00-000 | Rivet, belt cover | Timing belt (SN415VD) |
| 11391-84A00-000 | Cover, timing belt lower | Timing belt (SN415VD) |
| 12631-84A00-000 | Pinion, crankshaft | Timing belt (SN415VD) |
| 12636-84A10-000 | Bolt, crank pulley | Timing belt (SN415VD) |
| 12741-84A00-000 | Gear set, camshaft | Timing belt (SN415VD) |
| 12760-84A00-000 | Belt & roller set, timing | Timing belt (SN415VD) |
| 12761-84A00-000 | Belt, timing | Timing belt (SN415VD) |
| 12765-84A00-000 | Nut, camshaft pulley | Timing belt (SN415VD) |
| 12766-84A00-000 | Stud bolt | Timing belt (SN415VD) |
| 12767-84A00-000 | Bolt, roller - 8x60 | Timing belt (SN415VD) |
| 16117-84A00-000 | Bolt - 6x18 | Timing belt (SN415VD) |
