Search › Model › SN413V

SN413V

Suzuki JIMNY · 4,266 parts · 201 categories
SN413V ×

← Back to categories

4,266 items

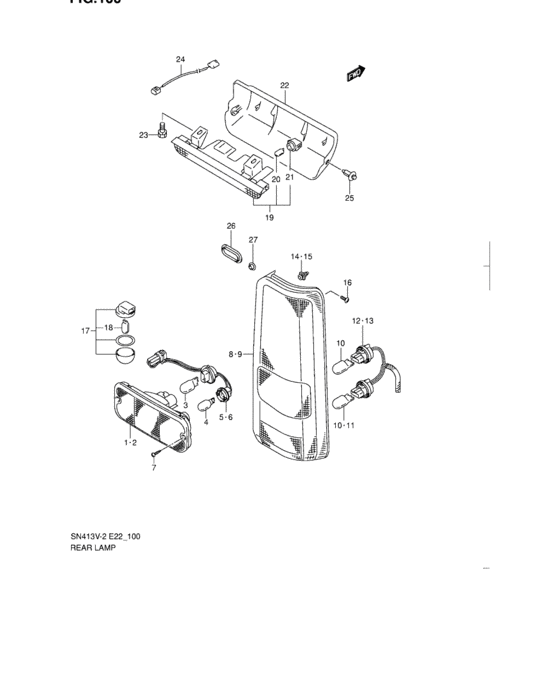

Rear lamp (REAR LAMP) 54
#OEMPart name
1 35650-81A10-000 Lamp unit,rr comb rh
1 35650-81A11-000 LAMP UNIT,RR COMB,R
1 35650-81A30-000 Lamp unit, rr combination rh
1 35650-81A32-000 LAMP UNIT,RR COMB,R
1 35650-81A40-000 Lamp unit,rr comb rh
2 35670-81A10-000 Lamp unit,rr comb lh
2 35670-81A11-000 LAMP UNIT,RR COMB,L
2 35670-81A40-000 Lamp unit, rr combination lh
2 35670-81A42-000 LAMP UNIT,RR COMB,L
2 35670-81A30-000 Lamp unit,rr comb,lh
2 35670-81A31-000 LAMP UNIT,RR COMB,L
3 09471-12146-000 BULB(12V16W) - Bulb (12v18w)
4 09471-12192-000 BULB(12V21/5W)
4 09471-12191-000 BULB(12V21W)
5 35658-81A10-000 SOCKET&CORD ASSY,RR COMB
5 35658-81A30-000 SOCKET&CORD ASSY,RR COMB
6 35658-81A20-000 SOCKET&CORD ASSY,RR COMB
7 35665-81A10-000 SCREW,5X25
8 36255-81A10-000 LAMP UNIT,BACK UP,R
8 36255-81A30-000 Lamp unit,back up,rh
8 36255-81A31-000 LAMP UNIT,BACK UP,R
8 36255-81A00-000 LAMP UNIT,BACK UP,R
9 36275-81A10-000 LAMP UNIT,BACK UP,L
9 36275-81A30-000 Lamp unit,back up,lh
9 36275-81A31-000 LAMP UNIT,BACK UP,L
9 36275-81A00-000 LAMP UNIT,BACK UP,L
12 36258-81A10-000 SOCKET&CORD ASSY,BACK UP,R
12 36258-81A20-000 SOCKET&CORD ASSY,BACK UP,R
12 36258-81A00-000 SOCKET&CORD ASSY,BACK UP,R
13 36278-81A10-000 SOCKET&CORD ASSY,BACK UP,L
13 36278-81A20-000 SOCKET&CORD ASSY,BACK UP,L
13 36278-81A00-000 SOCKET&CORD ASSY,BACK UP,L
14 35684-81A00-000 CLIP
15 71812-78F00-000 CLIP
16 02162-06163-000 Screw - Bolt
16 02162-0616B-000 SCREW - Bolt, adjust
17 35910-75F21-000 LAMP ASSYLICENSE
17 35910-75F22-000 Lamp assy,license
18 09471-12081-000 Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e)
18 09471-12216-000 BULB(12V5W) - Bulb (12v5w)
19 35820-81A00-000 LAMP UNIT,HIGH MT STOP
21 34172-50E10-000 SOCKET
22 35821-81A00-T01 COVER,HIGH MOUNT STOP LAMP
22 35821-81A00-P4Z COVER,HIGH MOUNT STOP LAMP
23 02162-06123-000 Bolt (6x12)
23 02162-0612B-000 SCREW - Bolt
23 02162-0612A-000 SCREW - Bolt, bracket
24 36842-81A00-000 WIRE,HIGH MOUNT STOP LAMP
25 09409-06314-T01 CLIP(GRAY)
25 09409-06314-P4Z CLIP(GRAY)
26 83917-82010-T01 Cap, back door hole (gray)
26 83917-82010-5PK CAP,BACK DR HOLE
27 09250-05011-T01 CAP(OD:12)
27 09250-05011-5PK CAP(OD:12) - Plug
