Search › Model › SN413V
SN413V

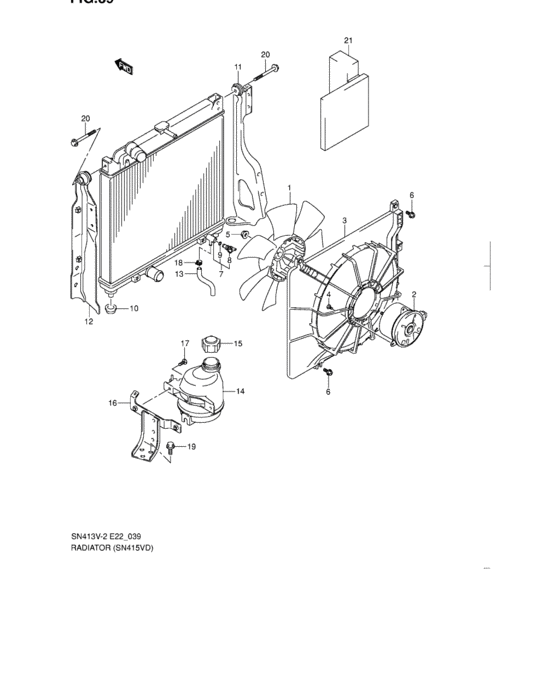

Radiator (SN415VD) 29
| # | OEM | Part name |
|---|---|---|
| 1 | 17111-84A00-000 | FAN,COOLING 7 BLADES |
| 2 | 17120-84A00-000 | MOTOR ASSY,FAN |
| 3 | 17761-81AA0-000 | SHROUD ASSY,FAN |
| 4 | 02142-05103-000 | Screw 5x10 |
| 4 | 02142-0510B-000 | SCREW - Bolt |
| 5 | 08316-20053-000 | Nut |
| 5 | 08316-2005A-000 | NUT |
| 6 | 02162-06163-000 | Screw - Bolt |
| 6 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 7 | 17700-84A00-000 | RADIATOR ASSY |
| 8 | 17751-61A00-000 | PLUG,DRAIN |
| 9 | 17759-72010-000 | O-RING |
| 10 | 17812-82000-000 | BUSHING,RADIATOR SUPPORT |
| 11 | 17820-84A00-000 | STAY,RADIATOR,R |
| 12 | 17830-84A00-000 | STAY,RADIATOR,L |
| 13 | 17853-84A00-000 | HOSE,RADIATOR DRAIN |
| 14 | 17930-84A00-000 | Tank, degassing |
| 14 | 17930-84A01-000 | TANK,DEGASSING |
| 15 | 17931-84A00-000 | CAP,DEGASSING TANK |
| 16 | 17935-84A00-000 | Bracket, deg tank |
| 16 | 17935-84A02-000 | BRACKET,DEGASSING TANK |
| 17 | 09139-06083-000 | SCREW(6X16) - Screw, front center |
| 18 | 09401-10409-000 | CLIP |
| 19 | 01550-08163-000 | Bolt, holder |
| 19 | 01550-0816B-000 | Bolt |
| 19 | 01550-0816A-000 | Bolt - Bolt, rear |
| 20 | 02162-06403-000 | Bolt, rdtr |
| 20 | 02162-0640A-000 | SCREW |
| 21 | 17731-84A00-000 | PACKING,RADIATOR |
| OEM | Part name | Category |
|---|---|---|
| 01550-08163-000 | Bolt, holder | Radiator (SN415VD) |
| 01550-0816A-000 | Bolt - Bolt, rear | Radiator (SN415VD) |
| 01550-0816B-000 | Bolt | Radiator (SN415VD) |
| 02142-05103-000 | Screw 5x10 | Radiator (SN415VD) |
| 02142-0510B-000 | SCREW - Bolt | Radiator (SN415VD) |
| 02162-06163-000 | Screw - Bolt | Radiator (SN415VD) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Radiator (SN415VD) |
| 02162-06403-000 | Bolt, rdtr | Radiator (SN415VD) |
| 02162-0640A-000 | SCREW | Radiator (SN415VD) |
| 08316-20053-000 | Nut | Radiator (SN415VD) |
| 08316-2005A-000 | NUT | Radiator (SN415VD) |
| 09139-06083-000 | SCREW(6X16) - Screw, front center | Radiator (SN415VD) |
| 09401-10409-000 | CLIP | Radiator (SN415VD) |
| 17111-84A00-000 | FAN,COOLING 7 BLADES | Radiator (SN415VD) |
| 17120-84A00-000 | MOTOR ASSY,FAN | Radiator (SN415VD) |
| 17700-84A00-000 | RADIATOR ASSY | Radiator (SN415VD) |
| 17731-84A00-000 | PACKING,RADIATOR | Radiator (SN415VD) |
| 17751-61A00-000 | PLUG,DRAIN | Radiator (SN415VD) |
| 17759-72010-000 | O-RING | Radiator (SN415VD) |
| 17761-81AA0-000 | SHROUD ASSY,FAN | Radiator (SN415VD) |
| 17812-82000-000 | BUSHING,RADIATOR SUPPORT | Radiator (SN415VD) |
| 17820-84A00-000 | STAY,RADIATOR,R | Radiator (SN415VD) |
| 17830-84A00-000 | STAY,RADIATOR,L | Radiator (SN415VD) |
| 17853-84A00-000 | HOSE,RADIATOR DRAIN | Radiator (SN415VD) |
| 17930-84A00-000 | Tank, degassing | Radiator (SN415VD) |
| 17930-84A01-000 | TANK,DEGASSING | Radiator (SN415VD) |
| 17931-84A00-000 | CAP,DEGASSING TANK | Radiator (SN415VD) |
| 17935-84A00-000 | Bracket, deg tank | Radiator (SN415VD) |
| 17935-84A02-000 | BRACKET,DEGASSING TANK | Radiator (SN415VD) |
