SN413V

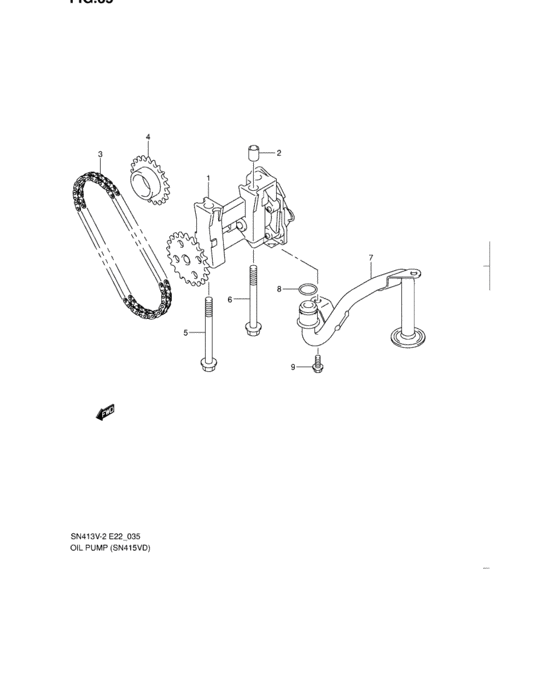

Oil pump (SN415VD) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 16100-84A00-000 | Pump assy, oil |
| 2 | 16105-84A00-000 | Bushing |
| 2 | 16105-84A01-000 | BUSHING |
| 3 | 16184-84A00-000 | Chain, oil pump |
| 4 | 12632-84A00-000 | Pinion, oil pump drive |
| 5 | 12181-84A00-000 | Bolt - 8x105 |
| 6 | 12186-84A00-000 | Bolt - 8x95 |
| 7 | 16520-84A00-000 | STRAINER,OIL PUMP |
| 8 | 16528-84A00-000 | O-RING,OIL STRAINER |
| 9 | 09106-06099-000 | BOLT(6X16) |
| OEM | Part name | Category |
|---|---|---|
| 09106-06099-000 | BOLT(6X16) | Oil pump (SN415VD) |
| 12181-84A00-000 | Bolt - 8x105 | Oil pump (SN415VD) |
| 12186-84A00-000 | Bolt - 8x95 | Oil pump (SN415VD) |
| 12632-84A00-000 | Pinion, oil pump drive | Oil pump (SN415VD) |
| 16100-84A00-000 | Pump assy, oil | Oil pump (SN415VD) |
| 16105-84A00-000 | Bushing | Oil pump (SN415VD) |
| 16105-84A01-000 | BUSHING | Oil pump (SN415VD) |
| 16184-84A00-000 | Chain, oil pump | Oil pump (SN415VD) |
| 16520-84A00-000 | STRAINER,OIL PUMP | Oil pump (SN415VD) |
| 16528-84A00-000 | O-RING,OIL STRAINER | Oil pump (SN415VD) |
