SN413V

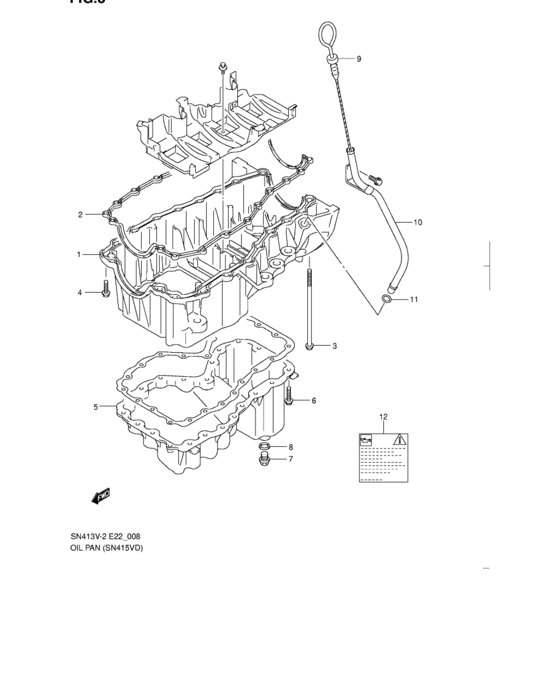

Oil pan (SN415VD) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 11522-84A00-000 | Pan, oil |
| 2 | 11523-84A00-000 | Gasket |
| 3 | 16594-84A00-000 | Bolt |
| 4 | 16595-84A00-000 | Bolt |
| 5 | 11521-84A00-000 | Pan, oil lower |
| 5 | 11521-84A01-000 | PAN,OIL LOWER |
| 6 | 07120-06253-000 | Bolt, center - Screw |
| 6 | 07120-0625A-000 | Bolt - Bolt, cylinder head (l25) |
| 7 | 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain |
| 7 | 09247-14044-000 | DRAIN PLUG (M14x1.5) |
| 8 | 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union |
| 9 | 16910-84A01-000 | GAUGE,OIL LEVEL |
| 10 | 16930-84A00-000 | Guide comp,oil level gauge |
| 11 | 16935-84A00-000 | O-RING,OIL LEVEL GAUGE GUIDE |
| 12 | 11499-84A00-000 | LABEL,OIL VOLUME WARNING |
| OEM | Part name | Category |
|---|---|---|
| 07120-06253-000 | Bolt, center - Screw | Oil pan (SN415VD) |
| 07120-0625A-000 | Bolt - Bolt, cylinder head (l25) | Oil pan (SN415VD) |
| 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union | Oil pan (SN415VD) |
| 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain | Oil pan (SN415VD) |
| 09247-14044-000 | DRAIN PLUG (M14x1.5) | Oil pan (SN415VD) |
| 11499-84A00-000 | LABEL,OIL VOLUME WARNING | Oil pan (SN415VD) |
| 11521-84A00-000 | Pan, oil lower | Oil pan (SN415VD) |
| 11521-84A01-000 | PAN,OIL LOWER | Oil pan (SN415VD) |
| 11522-84A00-000 | Pan, oil | Oil pan (SN415VD) |
| 11523-84A00-000 | Gasket | Oil pan (SN415VD) |
| 16594-84A00-000 | Bolt | Oil pan (SN415VD) |
| 16595-84A00-000 | Bolt | Oil pan (SN415VD) |
| 16910-84A01-000 | GAUGE,OIL LEVEL | Oil pan (SN415VD) |
| 16930-84A00-000 | Guide comp,oil level gauge | Oil pan (SN415VD) |
| 16935-84A00-000 | O-RING,OIL LEVEL GAUGE GUIDE | Oil pan (SN415VD) |
