SN413V

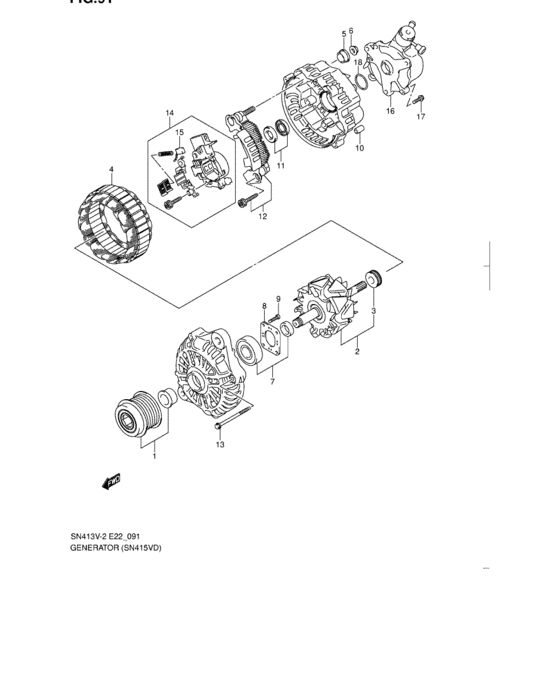

Generator (SN415VD) 23
| # | OEM | Part name |
|---|---|---|
| 0 | 31400-84A00-000 | Generator assy |
| 0 | 31400-84A02-000 | GENERATOR ASSY |
| 1 | 31171-84A00-000 | Pulley |
| 1 | 31171-84A10-000 | PULLEY |
| 2 | 31710-84A00-000 | ROTOR ASSY |
| 3 | 31612-84A00-000 | BEARING,REAR |
| 4 | 31410-84A00-000 | STATOR ASSY |
| 5 | 31471-84A00-000 | INSULATOR |
| 6 | 31512-84A00-000 | NUT |
| 7 | 31582-50F20-000 | Bearing,front |
| 7 | 31582-50F30-000 | BEARING,FRONT |
| 8 | 31585-84A00-000 | Retainer |
| 8 | 31585-65J10-000 | RETAINER |
| 9 | 31586-86520-000 | SCREW SET |
| 10 | 31616-84A00-000 | BUSH |
| 11 | 31618-84A00-000 | SEAL SET |
| 12 | 31621-84A00-000 | Rectifier Assy |
| 13 | 31651-86520-000 | SCREW SET |
| 14 | 32500-84A00-000 | REGULATOR ASSY |
| 15 | 31631-84A00-000 | BRUSH SET |
| 16 | 32900-84A00-000 | VACUUM PUMP ASSY |
| 17 | 32901-84A00-000 | BOLT SET |
| 18 | 32905-84A00-000 | O-RING |
| OEM | Part name | Category |
|---|---|---|
| 31171-84A00-000 | Pulley | Generator (SN415VD) |
| 31171-84A10-000 | PULLEY | Generator (SN415VD) |
| 31400-84A00-000 | Generator assy | Generator (SN415VD) |
| 31400-84A02-000 | GENERATOR ASSY | Generator (SN415VD) |
| 31410-84A00-000 | STATOR ASSY | Generator (SN415VD) |
| 31471-84A00-000 | INSULATOR | Generator (SN415VD) |
| 31512-84A00-000 | NUT | Generator (SN415VD) |
| 31582-50F20-000 | Bearing,front | Generator (SN415VD) |
| 31582-50F30-000 | BEARING,FRONT | Generator (SN415VD) |
| 31585-65J10-000 | RETAINER | Generator (SN415VD) |
| 31585-84A00-000 | Retainer | Generator (SN415VD) |
| 31586-86520-000 | SCREW SET | Generator (SN415VD) |
| 31612-84A00-000 | BEARING,REAR | Generator (SN415VD) |
| 31616-84A00-000 | BUSH | Generator (SN415VD) |
| 31618-84A00-000 | SEAL SET | Generator (SN415VD) |
| 31621-84A00-000 | Rectifier Assy | Generator (SN415VD) |
| 31631-84A00-000 | BRUSH SET | Generator (SN415VD) |
| 31651-86520-000 | SCREW SET | Generator (SN415VD) |
| 31710-84A00-000 | ROTOR ASSY | Generator (SN415VD) |
| 32500-84A00-000 | REGULATOR ASSY | Generator (SN415VD) |
| 32900-84A00-000 | VACUUM PUMP ASSY | Generator (SN415VD) |
| 32901-84A00-000 | BOLT SET | Generator (SN415VD) |
| 32905-84A00-000 | O-RING | Generator (SN415VD) |
