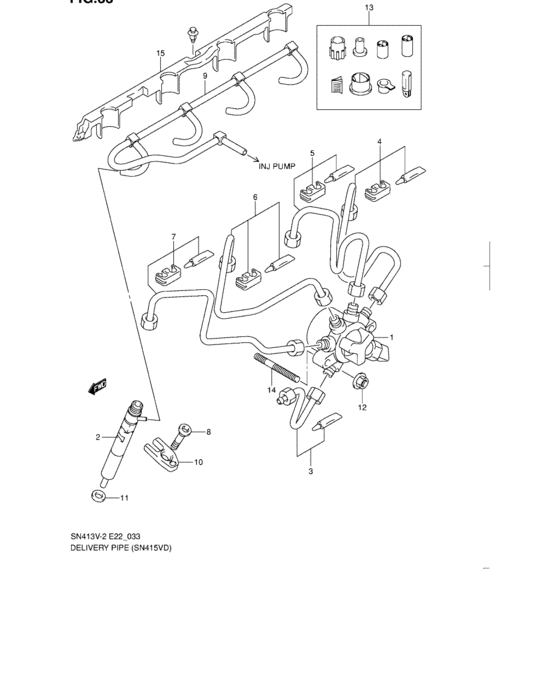

Fuel injector (SN415VD)
15
| # | OEM | Part name |
|---|
| 1 |
15730-84A00-000 |
Pipe, delivery |
| 2 |
15710-84A00-000 |
Injector assy |
| 3 |
15831-84A00-000 |
Pipe set, inj pump |
| 4 |
15832-84A00-000 |
Pipe set, pressure no.1 |
| 5 |
15833-84A00-000 |
Pipe set, pressure no.2 |
| 6 |
15834-84A00-000 |
Pipe set, pressure no.3 |
| 7 |
15835-84A00-000 |
Pipe set, pressure no.4 |
| 8 |
15319-84A00-000 |
Bolt, injector |
| 9 |
15836-84A00-000 |
Hose, injector |
| 10 |
15316-84A00-000 |
Flange, injector |
| 11 |
15313-84A00-000 |
WASHER,INJECTOR |
| 12 |
15732-84A00-000 |
Nut |
| 13 |
15733-84A00-000 |
Cap set |
| 14 |
15734-84A00-000 |
Stud bolt - 8x40 |
| 15 |
15735-84A00-000 |
Plate, anti-projection |
| OEM |
Part name |
Category |
| 15313-84A00-000 |
WASHER,INJECTOR |
Fuel injector (SN415VD) |
| 15316-84A00-000 |
Flange, injector |
Fuel injector (SN415VD) |
| 15319-84A00-000 |
Bolt, injector |
Fuel injector (SN415VD) |
| 15710-84A00-000 |
Injector assy |
Fuel injector (SN415VD) |
| 15730-84A00-000 |
Pipe, delivery |
Fuel injector (SN415VD) |
| 15732-84A00-000 |
Nut |
Fuel injector (SN415VD) |
| 15733-84A00-000 |
Cap set |
Fuel injector (SN415VD) |
| 15734-84A00-000 |
Stud bolt - 8x40 |
Fuel injector (SN415VD) |
| 15735-84A00-000 |
Plate, anti-projection |
Fuel injector (SN415VD) |
| 15831-84A00-000 |
Pipe set, inj pump |
Fuel injector (SN415VD) |
| 15832-84A00-000 |
Pipe set, pressure no.1 |
Fuel injector (SN415VD) |
| 15833-84A00-000 |
Pipe set, pressure no.2 |
Fuel injector (SN415VD) |
| 15834-84A00-000 |
Pipe set, pressure no.3 |
Fuel injector (SN415VD) |
| 15835-84A00-000 |
Pipe set, pressure no.4 |
Fuel injector (SN415VD) |
| 15836-84A00-000 |
Hose, injector |
Fuel injector (SN415VD) |
