Search › Model › SN413V
SN413V

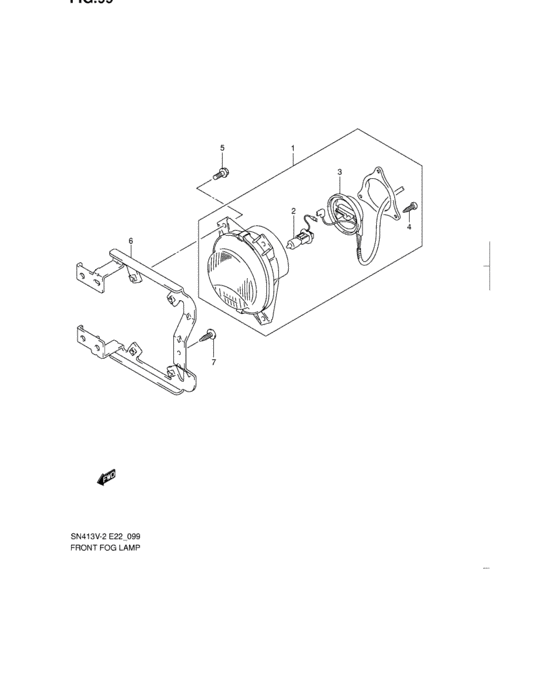

Fr fog lamp (W/FR FOG LAMP) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 35500-74F50-000 | LAMP ASSY,FOG |
| 2 | 09471-12194-000 | BULB(12V35W,H3A) |
| 3 | 35530-75F00-000 | CORD,FOG LAMP |
| 4 | 03511-04123-000 | Screw 4x12 |
| 4 | 03511-0412A-000 | SCREW |
| 5 | 02162-05123-000 | Screw |
| 5 | 02162-0512A-000 | SCREW |
| 6 | 35526-81A01-000 | BRACKET,FOG LAMP |
| 7 | 03541-05163-000 | Screw |
| 7 | 03541-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02162-05123-000 | Screw | Fr fog lamp (W/FR FOG LAMP) |
| 02162-0512A-000 | SCREW | Fr fog lamp (W/FR FOG LAMP) |
| 03511-04123-000 | Screw 4x12 | Fr fog lamp (W/FR FOG LAMP) |
| 03511-0412A-000 | SCREW | Fr fog lamp (W/FR FOG LAMP) |
| 03541-05163-000 | Screw | Fr fog lamp (W/FR FOG LAMP) |
| 03541-0516A-000 | SCREW | Fr fog lamp (W/FR FOG LAMP) |
| 09471-12194-000 | BULB(12V35W,H3A) | Fr fog lamp (W/FR FOG LAMP) |
| 35500-74F50-000 | LAMP ASSY,FOG | Fr fog lamp (W/FR FOG LAMP) |
| 35526-81A01-000 | BRACKET,FOG LAMP | Fr fog lamp (W/FR FOG LAMP) |
| 35530-75F00-000 | CORD,FOG LAMP | Fr fog lamp (W/FR FOG LAMP) |
