Search › Model › SN413V
SN413V

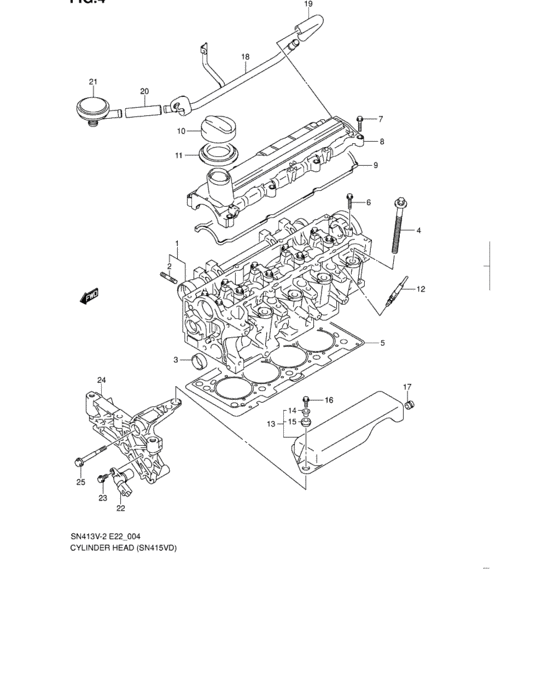

Cylinder head (SN415VD) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 11110-84A00-000 | Head set, cylinder |
| 2 | 13116-84A00-000 | Stud bolt - 8x30 |
| 3 | 11115-84A00-000 | Plug |
| 4 | 11117-84A00-000 | Bolt set, cyl head |
| 5 | 11141-84A00-000 | Gasket |
| 6 | 11165-84A00-000 | Bolt - 6x30 |
| 8 | 11170-84A00-000 | Cover, cylinder head |
| 9 | 11179-84A00-000 | Gasket |
| 10 | 16920-84A00-000 | Cap, oil filler |
| 11 | 16929-84A00-000 | Gasket, cap |
| 12 | 18550-84A00-000 | Plug, glow |
| 13 | 15870-84A00-000 | COVER ASSY,ENGINE |
| 14 | 13172-54G10-000 | SPACER |
| 15 | 13173-54G10-000 | CUSHION |
| 16 | 13174-54G00-000 | BOLT,ENG COVER |
| 17 | 09320-09039-000 | CUSHION - Cushion, silencer cover |
| 17 | 09320-09059-000 | Cushion,silencer Cover |
| 18 | 11190-84A00-000 | PIPE,PCV |
| 19 | 11193-84A00-000 | HOSE,PCV NO.1 |
| 20 | 11194-84A00-000 | HOSE,PCV NO.2 |
| 21 | 18118-84A00-000 | VALVE,PCV |
| 22 | 33220-84A00-000 | Sensor, cam position |
| 23 | 33225-84A00-000 | Bolt - 6x12 |
| 24 | 95108-84A00-000 | Bracket, air con |
| 25 | 95109-84A00-000 | Bolt - 8x60 |
| 25 | 19945-67JG0-000 | BOLT,8X60 |
| OEM | Part name | Category |
|---|---|---|
| 09320-09039-000 | CUSHION - Cushion, silencer cover | Cylinder head (SN415VD) |
| 09320-09059-000 | Cushion,silencer Cover | Cylinder head (SN415VD) |
| 11110-84A00-000 | Head set, cylinder | Cylinder head (SN415VD) |
| 11115-84A00-000 | Plug | Cylinder head (SN415VD) |
| 11117-84A00-000 | Bolt set, cyl head | Cylinder head (SN415VD) |
| 11141-84A00-000 | Gasket | Cylinder head (SN415VD) |
| 11165-84A00-000 | Bolt - 6x30 | Cylinder head (SN415VD) |
| 11170-84A00-000 | Cover, cylinder head | Cylinder head (SN415VD) |
| 11179-84A00-000 | Gasket | Cylinder head (SN415VD) |
| 11190-84A00-000 | PIPE,PCV | Cylinder head (SN415VD) |
| 11193-84A00-000 | HOSE,PCV NO.1 | Cylinder head (SN415VD) |
| 11194-84A00-000 | HOSE,PCV NO.2 | Cylinder head (SN415VD) |
| 13116-84A00-000 | Stud bolt - 8x30 | Cylinder head (SN415VD) |
| 13172-54G10-000 | SPACER | Cylinder head (SN415VD) |
| 13173-54G10-000 | CUSHION | Cylinder head (SN415VD) |
| 13174-54G00-000 | BOLT,ENG COVER | Cylinder head (SN415VD) |
| 15870-84A00-000 | COVER ASSY,ENGINE | Cylinder head (SN415VD) |
| 16920-84A00-000 | Cap, oil filler | Cylinder head (SN415VD) |
| 16929-84A00-000 | Gasket, cap | Cylinder head (SN415VD) |
| 18118-84A00-000 | VALVE,PCV | Cylinder head (SN415VD) |
| 18550-84A00-000 | Plug, glow | Cylinder head (SN415VD) |
| 19945-67JG0-000 | BOLT,8X60 | Cylinder head (SN415VD) |
| 33220-84A00-000 | Sensor, cam position | Cylinder head (SN415VD) |
| 33225-84A00-000 | Bolt - 6x12 | Cylinder head (SN415VD) |
| 95108-84A00-000 | Bracket, air con | Cylinder head (SN415VD) |
| 95109-84A00-000 | Bolt - 8x60 | Cylinder head (SN415VD) |
