SN413V

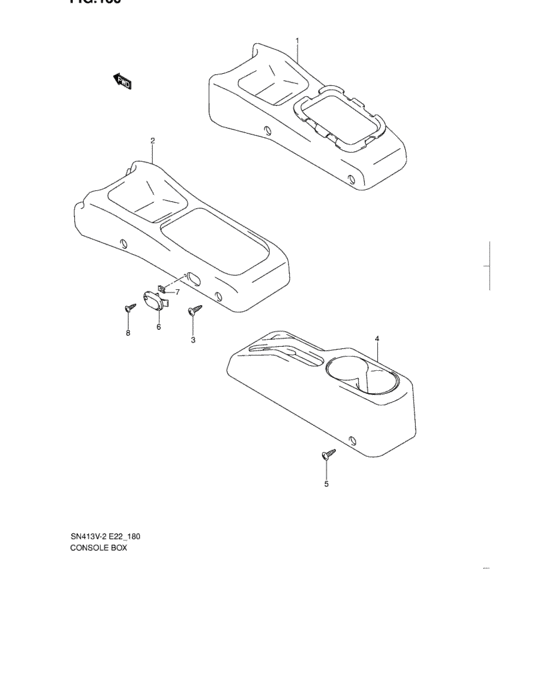

Console box (CONSOLE BOX) 13
| # | OEM | Part name |
|---|---|---|
| 2 | 75810-81A10-T01 | BOX,CONSOLE FR |
| 2 | 75810-81A10-P4Z | BOX,CONSOLE FR |
| 2 | 75810-81A20-T01 | BOX,CONSOLE FR |
| 2 | 75810-81A20-P4Z | BOX,CONSOLE FR |
| 3 | 03142-05123-000 | Screw - Screw, belt cooling duct |
| 3 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 4 | 75870-81A00-T01 | BOX,CONSOLE RR |
| 4 | 75870-81A00-P4Z | BOX,CONSOLE RR |
| 6 | 75818-60E30-T01 | CAP,CTR CONSOLE FR |
| 6 | 75818-60E30-P4Z | CAP,CONSOLE BOX SIDE |
| 7 | 09148-05045-000 | NUT |
| 8 | 03222-05123-000 | スクリュ |
| 8 | 03222-0512B-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Console box (CONSOLE BOX) |
| 03142-05123-000 | Screw - Screw, belt cooling duct | Console box (CONSOLE BOX) |
| 03222-05123-000 | スクリュ | Console box (CONSOLE BOX) |
| 03222-0512B-000 | SCREW | Console box (CONSOLE BOX) |
| 09148-05045-000 | NUT | Console box (CONSOLE BOX) |
| 75810-81A10-P4Z | BOX,CONSOLE FR | Console box (CONSOLE BOX) |
| 75810-81A10-T01 | BOX,CONSOLE FR | Console box (CONSOLE BOX) |
| 75810-81A20-P4Z | BOX,CONSOLE FR | Console box (CONSOLE BOX) |
| 75810-81A20-T01 | BOX,CONSOLE FR | Console box (CONSOLE BOX) |
| 75818-60E30-P4Z | CAP,CONSOLE BOX SIDE | Console box (CONSOLE BOX) |
| 75818-60E30-T01 | CAP,CTR CONSOLE FR | Console box (CONSOLE BOX) |
| 75870-81A00-P4Z | BOX,CONSOLE RR | Console box (CONSOLE BOX) |
| 75870-81A00-T01 | BOX,CONSOLE RR | Console box (CONSOLE BOX) |
