SN413Q

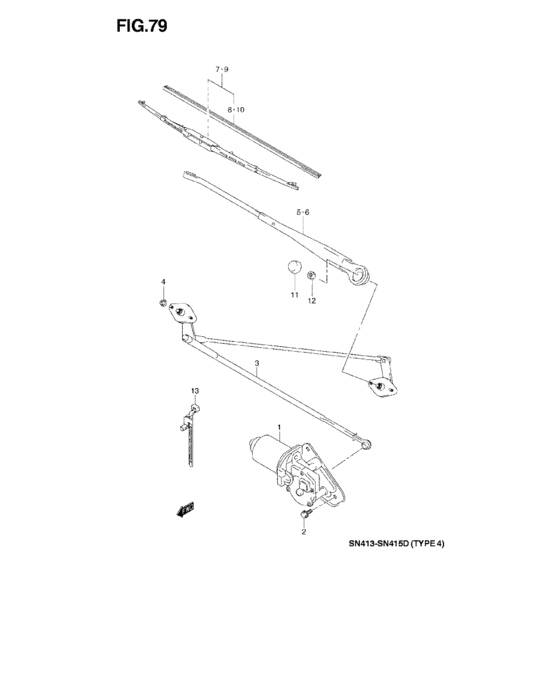

Window wiper (LHD) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-82A12-000 | Motor & bracket assy, wiper |
| 2 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 2 | 09115-06005-000 | BOLT(6X16) |
| 3 | 38102-82A10-000 | Link assy, wiper |
| 4 | 08316-20063-000 | Nut |
| 4 | 08316-2006A-000 | NUT |
| 5 | 38310-82A30-000 | Arm assy, wiper rh |
| 6 | 38310-82A20-000 | Arm assy, wiper lh |
| 7 | 38340-82A10-000 | Blade assy, wiper lh |
| 8 | 38346-82A10-000 | Blade, lh |
| 9 | 38340-82A00-000 | Blade assy, wiper rh |
| 10 | 38346-82A00-000 | Blade, rh |
| 11 | 86615-85C00-000 | Cap, slide adjuster front |
| 12 | 08310-00083-000 | Nut |
| 12 | 08310-0008B-000 | NUT |
| 12 | 08310-0008A-000 | NUT - Nut, bead stopper |
| 13 | 36990-85C10-000 | Clamp, wiper harness |
| OEM | Part name | Category |
|---|---|---|
| 08310-00083-000 | Nut | Window wiper (LHD) |
| 08310-0008A-000 | NUT - Nut, bead stopper | Window wiper (LHD) |
| 08310-0008B-000 | NUT | Window wiper (LHD) |
| 08316-20063-000 | Nut | Window wiper (LHD) |
| 08316-2006A-000 | NUT | Window wiper (LHD) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Window wiper (LHD) |
| 09115-06005-000 | BOLT(6X16) | Window wiper (LHD) |
| 36990-85C10-000 | Clamp, wiper harness | Window wiper (LHD) |
| 38101-82A12-000 | Motor & bracket assy, wiper | Window wiper (LHD) |
| 38102-82A10-000 | Link assy, wiper | Window wiper (LHD) |
| 38310-82A20-000 | Arm assy, wiper lh | Window wiper (LHD) |
| 38310-82A30-000 | Arm assy, wiper rh | Window wiper (LHD) |
| 38340-82A00-000 | Blade assy, wiper rh | Window wiper (LHD) |
| 38340-82A10-000 | Blade assy, wiper lh | Window wiper (LHD) |
| 38346-82A00-000 | Blade, rh | Window wiper (LHD) |
| 38346-82A10-000 | Blade, lh | Window wiper (LHD) |
| 86615-85C00-000 | Cap, slide adjuster front | Window wiper (LHD) |
