Search › Model › SN413Q
SN413Q

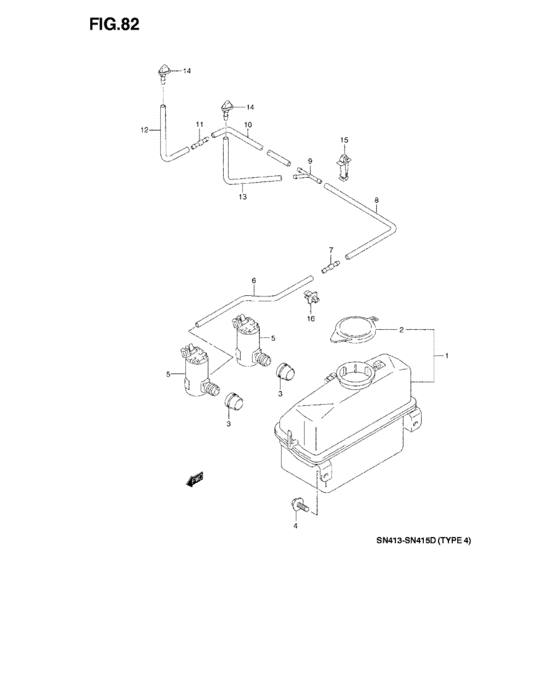

Window washer (SN413V) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 38450-81A00-000 | TANK ASSY,WASHER |
| 2 | 38452-81A00-000 | CAP,WASHER TANK |
| 3 | 38453-75000-000 | GROMMET |
| 4 | 09136-06133-000 | BOLT(6X16) - Screw |
| 5 | 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer |
| 6 | 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
| 7 | 38496-56B00-000 | CONNECTOR |
| 8 | 38491-60B40-000 | ホース,ウォッシャ,L:730 |
| 8 | 38459-50J00-000 | HOSE,WASHER L:810 |
| 9 | 38496-71311-000 | CONNECTOR,THREE WAY |
| 11 | 38833-79501-000 | VALVE,WASHER HOSE |
| 14 | 38480-81A00-000 | NOZZLE,WASHER |
| 15 | 34935-81A00-000 | CLAMP,WASHER HOSE HOOD |
| 16 | 09403-07307-5PK | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 09136-06133-000 | BOLT(6X16) - Screw | Window washer (SN413V) |
| 09403-07307-5PK | CLAMP | Window washer (SN413V) |
| 34935-81A00-000 | CLAMP,WASHER HOSE HOOD | Window washer (SN413V) |
| 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer | Window washer (SN413V) |
| 38450-81A00-000 | TANK ASSY,WASHER | Window washer (SN413V) |
| 38452-81A00-000 | CAP,WASHER TANK | Window washer (SN413V) |
| 38453-75000-000 | GROMMET | Window washer (SN413V) |
| 38459-50J00-000 | HOSE,WASHER L:810 | Window washer (SN413V) |
| 38480-81A00-000 | NOZZLE,WASHER | Window washer (SN413V) |
| 38491-60B40-000 | ホース,ウォッシャ,L:730 | Window washer (SN413V) |
| 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) | Window washer (SN413V) |
| 38496-56B00-000 | CONNECTOR | Window washer (SN413V) |
| 38496-71311-000 | CONNECTOR,THREE WAY | Window washer (SN413V) |
| 38833-79501-000 | VALVE,WASHER HOSE | Window washer (SN413V) |
