Search › Model › SN413Q
SN413Q

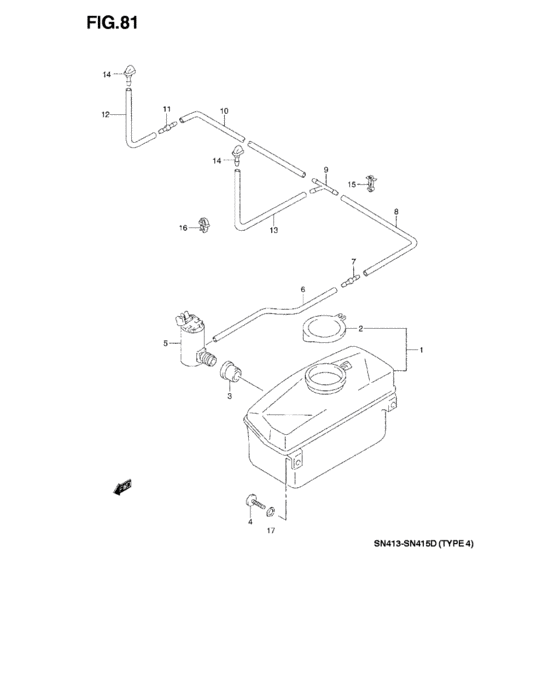

Window washer (SN413Q) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 38450-82A00-000 | Tank assy, washer |
| 2 | 38452-82A00-000 | Cap, washer |
| 3 | 38453-82A00-000 | Grommet |
| 4 | 02112-06203-000 | Screw |
| 4 | 02112-0620B-000 | SCREW |
| 4 | 02112-0620A-000 | SCREW - Screw, holder |
| 5 | 38410-82A00-000 | Pump assy, washer |
| 6 | 38491-82A00-000 | Hose, washer |
| 7 | 38496-82A00-000 | Connector |
| 8 | 38491-60B40-000 | ホース,ウォッシャ,L:730 |
| 8 | 38459-50J00-000 | HOSE,WASHER L:810 |
| 9 | 38496-71311-000 | CONNECTOR,THREE WAY |
| 11 | 38833-79501-000 | VALVE,WASHER HOSE |
| 14 | 38480-81A00-000 | NOZZLE,WASHER |
| 15 | 34935-81A00-000 | CLAMP,WASHER HOSE HOOD |
| 16 | 09403-07307-5PK | CLAMP |
| 17 | 09160-06086-000 | Washer, 6.5x20x - Washer (6.5x20x1) |
| 17 | 09160-06077-000 | WASHER(6.5X20X1.2) - Washer (6.5x20x1.2) |
| OEM | Part name | Category |
|---|---|---|
| 02112-06203-000 | Screw | Window washer (SN413Q) |
| 02112-0620A-000 | SCREW - Screw, holder | Window washer (SN413Q) |
| 02112-0620B-000 | SCREW | Window washer (SN413Q) |
| 09160-06077-000 | WASHER(6.5X20X1.2) - Washer (6.5x20x1.2) | Window washer (SN413Q) |
| 09160-06086-000 | Washer, 6.5x20x - Washer (6.5x20x1) | Window washer (SN413Q) |
| 09403-07307-5PK | CLAMP | Window washer (SN413Q) |
| 34935-81A00-000 | CLAMP,WASHER HOSE HOOD | Window washer (SN413Q) |
| 38410-82A00-000 | Pump assy, washer | Window washer (SN413Q) |
| 38450-82A00-000 | Tank assy, washer | Window washer (SN413Q) |
| 38452-82A00-000 | Cap, washer | Window washer (SN413Q) |
| 38453-82A00-000 | Grommet | Window washer (SN413Q) |
| 38459-50J00-000 | HOSE,WASHER L:810 | Window washer (SN413Q) |
| 38480-81A00-000 | NOZZLE,WASHER | Window washer (SN413Q) |
| 38491-60B40-000 | ホース,ウォッシャ,L:730 | Window washer (SN413Q) |
| 38491-82A00-000 | Hose, washer | Window washer (SN413Q) |
| 38496-71311-000 | CONNECTOR,THREE WAY | Window washer (SN413Q) |
| 38496-82A00-000 | Connector | Window washer (SN413Q) |
| 38833-79501-000 | VALVE,WASHER HOSE | Window washer (SN413Q) |
