SN413Q

Suzuki JIMNY · 3,595 parts · 183 categories
SN413Q ×

← Back to categories

3,595 items

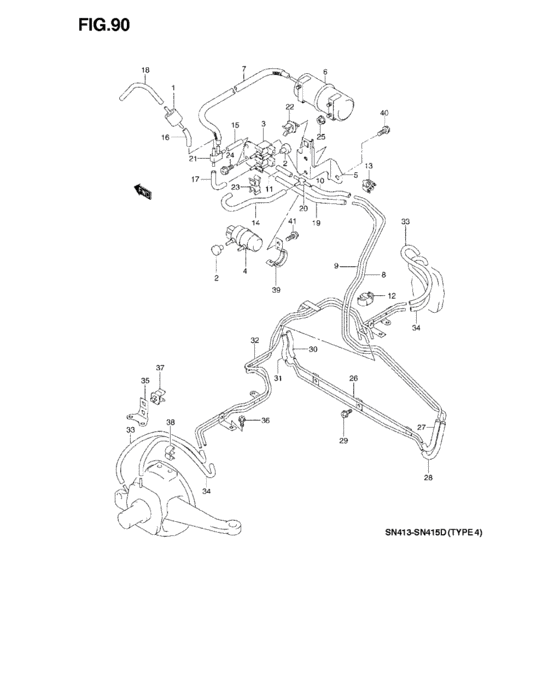

Wheel hub piping (SN413Q, SN413V) 40
#OEMPart name
1 18131-82150-000 VALVE,CHECK
2 18133-80401-000 FILTER
3 27951-85600-000 VALVE,VACUUM SWITCH
4 43830-81A60-000 SWITCH,VACUUM
4 43830-78R00-000 Switch Comp,vacuum
5 43840-81A01-000 BRACKET,VSV
6 43850-81A00-000 TANK,VACUUM ACCUMLATION
7 43856-81A00-000 HOSE,VACUUM TANK
8 43871-81A00-000 PIPE,VALVE TO ARM 4WD
9 43872-81A00-000 PIPE,VALVE TO ARM 2WD
10 43876-81A00-000 ホース,バルブ4WDアウトレット,NO.2
10 09355-35754-601 HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
10 09355-35006-601 Hose(3.5X7.5X601)
11 43878-82CB0-000 ホース,バキュームスイッチ,NO.1
12 51751-60B00-000 CLAMP,BRAKE PIPE
13 51761-70F00-000 CLAMP,BK PIPE SIDE MEMBER
20 09367-04002-000 CONNECTOR
21 09367-04003-000 JOINT,4 WAY
22 09403-07308-000 CLAMP
23 09408-00067-000 CLIP
24 02162-06123-000 Bolt (6x12)
24 02162-0612B-000 SCREW - Bolt
24 02162-0612A-000 SCREW - Bolt, bracket
25 08316-20063-000 Nut
25 08316-2006A-000 NUT
26 43880-81A00-000 PIPE,LEADING ARM VACUUM
27 43885-82A00-000 Hose, leading arm vacuum rr
28 43885-82A10-000 Hose, leading arm vacuum rr
29 01550-06163-000 Bolt
29 01550-0616B-000 Bolt
29 01550-0616A-000 Bolt
30 43886-82A00-000 Hose, leading arm vacuum fr
31 43886-82A10-000 Hose, leading arm vacuum fr
32 43910-81A20-000 PIPE,FR AXLE HSG
33 43926-81A20-000 HOSE,SPINDLE VACUUM 4WD
34 43926-81A30-000 HOSE,SPINDLE VACUUM 2WD
35 45616-81A00-000 BRACKET,KINGPIN HOSE
36 51791-85C00-000 Screw - 6x12
38 18119-85C00-000 Clip, kingpin hose
39 18569-78100-000 CLAMP
