Search › Model › SN413Q

SN413Q

Suzuki JIMNY · 3,595 parts · 183 categories
SN413Q ×

← Back to categories

3,595 items

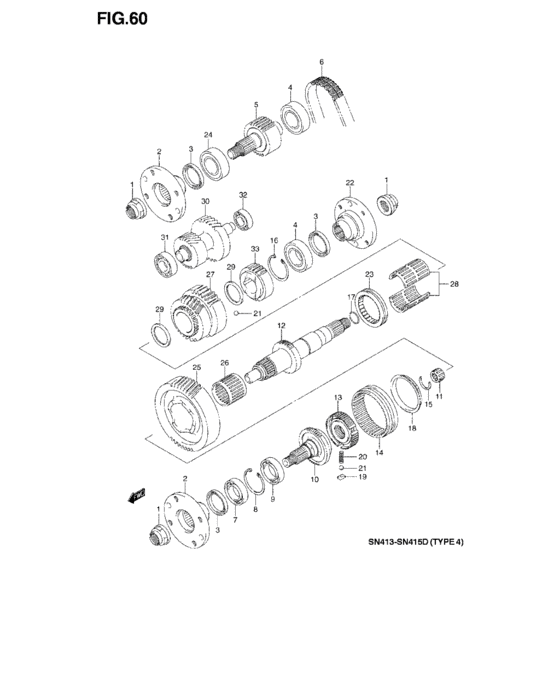

Transfer gear (TRANSFER GEAR) 53
#OEMPart name
1 29951-83050-000 NUT
2 29711-81A00-000 FLANGE UNIVERSAL JOINT
2 29711-81A01-000 FLANGE,UNIVERSAL JOINT
3 29972-80050-000 SEAL,OIL
4 29988-84A00-000 BEARING
4 29988-77R00-000 Bearing
5 29111-84A00-000 SHAFT,INPUT
5 29111-84A01-000 Shaft,t/f Input
6 29225-84A00-000 CHAIN
7 29983-55C00-000 Bearing
8 29913-55C00-000 RING,SNAP
9 29982-55C00-000 BEARING
9 29982-84A60-000 Bearing
10 29252-84A00-000 SHAFT,T/F OUTPUT FR
11 29981-84A00-000 Bearing
11 29981-84A60-000 BEARING
12 29251-84A00-000 SHAFT,T/F OUTPUT RR
13 29242-84A00-000 HUB,FR DRIVE CLUTCH
14 29231-84A00-000 SLEEVE,HUB
15 25111-84A00-212 RING,SNAP T:2.12
15 25111-84A00-218 RING,SNAP T:2.18
15 25111-84A00-224 RING,SNAP T:2.24
15 25111-84A00-230 RING,SNAP T:2.30
15 25111-84A00-236 RING,SNAP T:2.36
15 25111-84A00-242 RING,SNAP T:2.42
15 25111-84A00-248 RING,SNAP T:2.48
15 25111-84A00-254 RING,SNAP T:2.54
15 25111-84A00-260 RING,SNAP T:2.60
16 29992-80050-000 CIRCLIP,T/F INPUT SHAFT BRG
17 26253-84A00-000 O-RING
18 29235-84A00-000 RING
18 29235-84A60-000 RING,SYNC NO.3
19 29234-84A00-000 KEY,SYNC
20 29236-84A00-000 SPRING,KEY
21 24951-84A00-000 BALL
22 29711-81A10-000 フランジ,ユニバーサルジョイント
22 29711-81A11-000 FLANGE,UNIVERSAL JOINT
22 29711-84A60-000 フランジ,コンパニオン
22 29711-84A61-000 FLANGE,COMPANION
23 29241-80050-000 SLEEVE,REDUCTION CLUTCH
24 29988-84A60-000 BEARING
25 26242-84A00-000 GEAR,OUTPUT LOW
26 29985-84A00-000 Bearing
27 29232-76J10-000 Gear, output
27 29232-76J11-000 GEAR,OUTPUT
27 29232-76J12-000 Gear,output
28 29984-84A00-000 Bearing
29 29986-84A00-000 Bearing
30 26223-84A00-000 GEARTRANSFER COUNTER
30 26223-84A01-000 GEAR,TRANSFER COUNTER
31 29987-84A00-000 Bearing
32 09262-17023-000 BEARING(17X40X12) - Bearing, crankshaft upper
33 29411-76J00-000 GEAR,SPDOM DRIVE
