SN413Q

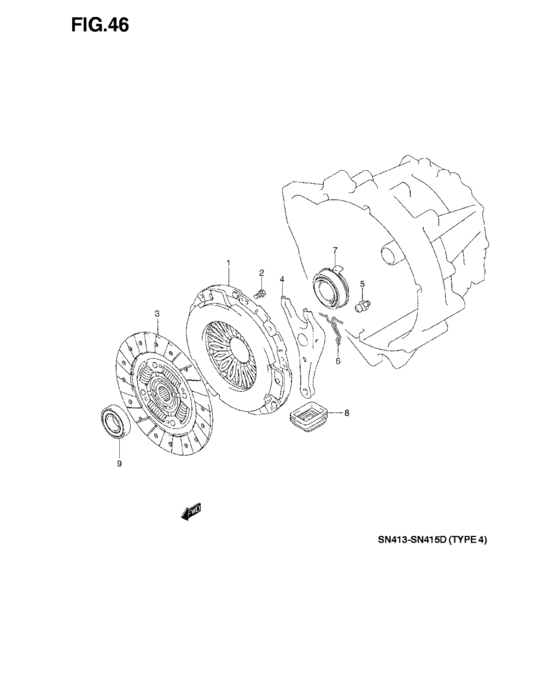

Mt clutch (SN415QD, SN415VD) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 22100-84A60-000 | COVER ASSY,CLUTCH |
| 2 | 09117-07001-000 | BOLT(7X16) |
| 3 | 22400-84A60-000 | DISC,CLUTCH |
| 4 | 23211-66D01-000 | FORK,CLUTCH RELEASE |
| 5 | 23221-78A00-000 | SUPPORT,CLUTCH RELEASE FORK |
| 6 | 23241-50F00-000 | CLIP,CLUTCH RELEASE FORK |
| 7 | 23265-78E00-000 | BEARING,CLUTCH RELEASE |
| 8 | 23268-50F01-000 | BOOT,CLUTCH RELEASE FORK |
| 9 | 12623-84A00-000 | Bearing,flywheel |
| 9 | 12623-84A03-000 | BEARING,FLYWHEEL |
| OEM | Part name | Category |
|---|---|---|
| 09117-07001-000 | BOLT(7X16) | Mt clutch (SN415QD, SN415VD) |
| 12623-84A00-000 | Bearing,flywheel | Mt clutch (SN415QD, SN415VD) |
| 12623-84A03-000 | BEARING,FLYWHEEL | Mt clutch (SN415QD, SN415VD) |
| 22100-84A60-000 | COVER ASSY,CLUTCH | Mt clutch (SN415QD, SN415VD) |
| 22400-84A60-000 | DISC,CLUTCH | Mt clutch (SN415QD, SN415VD) |
| 23211-66D01-000 | FORK,CLUTCH RELEASE | Mt clutch (SN415QD, SN415VD) |
| 23221-78A00-000 | SUPPORT,CLUTCH RELEASE FORK | Mt clutch (SN415QD, SN415VD) |
| 23241-50F00-000 | CLIP,CLUTCH RELEASE FORK | Mt clutch (SN415QD, SN415VD) |
| 23265-78E00-000 | BEARING,CLUTCH RELEASE | Mt clutch (SN415QD, SN415VD) |
| 23268-50F01-000 | BOOT,CLUTCH RELEASE FORK | Mt clutch (SN415QD, SN415VD) |
