SN413Q

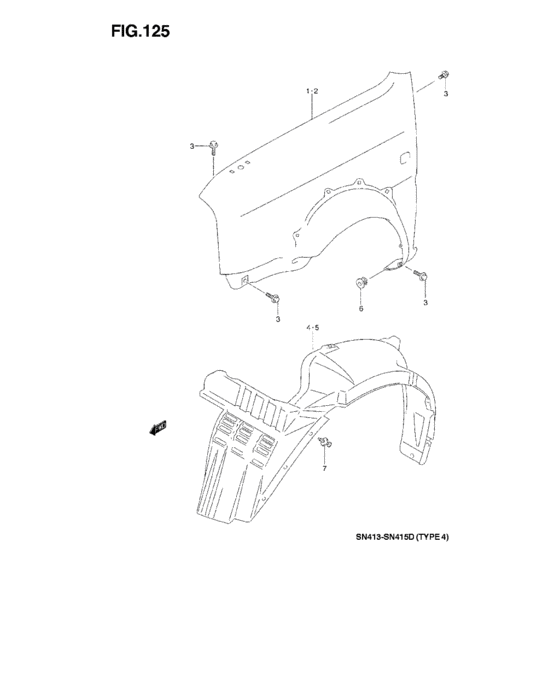

Front fender (FRONT FENDER) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 58611-81A00-000 | PANEL,FR FENDER,R |
| 2 | 58811-81A10-000 | PANEL,FR FENDER,L |
| 3 | 02162-06123-000 | Bolt (6x12) |
| 3 | 02162-0612B-000 | SCREW - Bolt |
| 3 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 4 | 72481-84A00-000 | LINING,FR FENDER,R |
| 5 | 72482-84A00-000 | LINING,FR FENDER,L |
| 6 | 59981-85C00-000 | Nut |
| 7 | 09409-07332-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | Front fender (FRONT FENDER) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Front fender (FRONT FENDER) |
| 02162-0612B-000 | SCREW - Bolt | Front fender (FRONT FENDER) |
| 09409-07332-000 | CLIP | Front fender (FRONT FENDER) |
| 58611-81A00-000 | PANEL,FR FENDER,R | Front fender (FRONT FENDER) |
| 58811-81A10-000 | PANEL,FR FENDER,L | Front fender (FRONT FENDER) |
| 59981-85C00-000 | Nut | Front fender (FRONT FENDER) |
| 72481-84A00-000 | LINING,FR FENDER,R | Front fender (FRONT FENDER) |
| 72482-84A00-000 | LINING,FR FENDER,L | Front fender (FRONT FENDER) |
