SN413Q

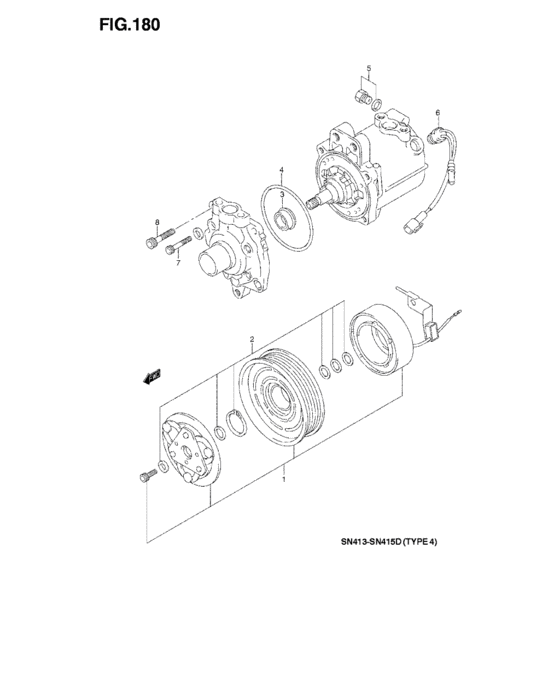

Compressor (SN415QD, SN415VD) 11
| # | OEM | Part name |
|---|---|---|
| 0 | 95200-70CN0-000 | Compressor assy |
| 0 | 95200-70CN2-000 | COMPRESSOR ASSY |
| 1 | 95210-70CL0-000 | CLUTCH,MAGNET |
| 2 | 95298-72B20-000 | Clip kit |
| 2 | 95298-72B21-000 | CLIP KIT |
| 3 | 95261-70B00-000 | Seal, lip |
| 4 | 95262-70B00-000 | O ring |
| 5 | 95271-72B01-000 | VALVE,RELIEF |
| 6 | 95527-70CL0-000 | SWITCH,THERMAL |
| 7 | 95296-72B20-000 | BOLT,COMPRESSOR CASE |
| 8 | 95297-72B20-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 95200-70CN0-000 | Compressor assy | Compressor (SN415QD, SN415VD) |
| 95200-70CN2-000 | COMPRESSOR ASSY | Compressor (SN415QD, SN415VD) |
| 95210-70CL0-000 | CLUTCH,MAGNET | Compressor (SN415QD, SN415VD) |
| 95261-70B00-000 | Seal, lip | Compressor (SN415QD, SN415VD) |
| 95262-70B00-000 | O ring | Compressor (SN415QD, SN415VD) |
| 95271-72B01-000 | VALVE,RELIEF | Compressor (SN415QD, SN415VD) |
| 95296-72B20-000 | BOLT,COMPRESSOR CASE | Compressor (SN415QD, SN415VD) |
| 95297-72B20-000 | Bolt | Compressor (SN415QD, SN415VD) |
| 95298-72B20-000 | Clip kit | Compressor (SN415QD, SN415VD) |
| 95298-72B21-000 | CLIP KIT | Compressor (SN415QD, SN415VD) |
| 95527-70CL0-000 | SWITCH,THERMAL | Compressor (SN415QD, SN415VD) |
