Search › Model › SN413Q
SN413Q

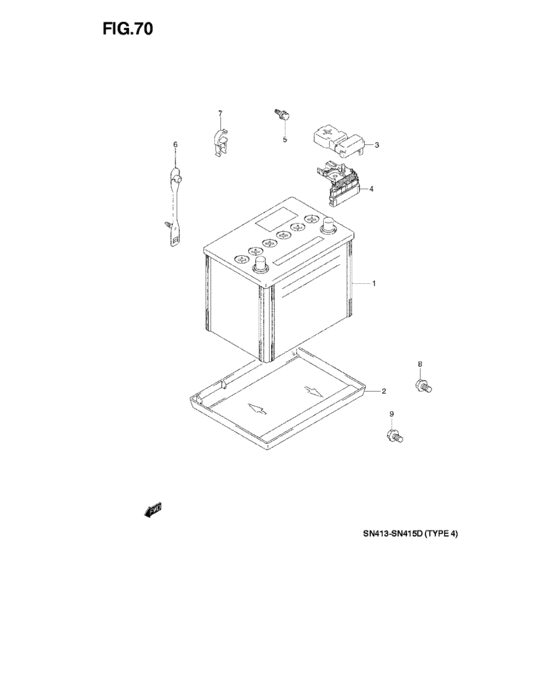

Battery (SN415QD, SN415VD) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-77E60-000 | バッテリアッシ,75D23LーMF(FB) |
| 1 | 33610-77EV8-000 | BATTERY ASSY,75D23L (Cannot be supplied) |
| 2 | 33660-60G20-000 | Tray, battery |
| 3 | 36694-84A00-000 | Cover,btry terminal |
| 3 | 36694-68K00-000 | COVER,BTRY TERMINAL |
| 4 | 36739-84A00-000 | FUSE,BATTERY |
| 5 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 5 | 09115-06005-000 | BOLT(6X16) |
| 6 | 09407-05403-000 | CLAMP,L:88 |
| 7 | 09408-00111-000 | CLAMP |
| 8 | 01550-08123-000 | Bolt - Plug, oil gallery |
| 8 | 01550-0812B-000 | Bolt - Plug, drain |
| 8 | 01550-0812A-000 | Bolt |
| 9 | 01550-06123-000 | Bolt |
| 9 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 9 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Battery (SN415QD, SN415VD) |
| 01550-0612A-000 | Bolt | Battery (SN415QD, SN415VD) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Battery (SN415QD, SN415VD) |
| 01550-08123-000 | Bolt - Plug, oil gallery | Battery (SN415QD, SN415VD) |
| 01550-0812A-000 | Bolt | Battery (SN415QD, SN415VD) |
| 01550-0812B-000 | Bolt - Plug, drain | Battery (SN415QD, SN415VD) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (SN415QD, SN415VD) |
| 09115-06005-000 | BOLT(6X16) | Battery (SN415QD, SN415VD) |
| 09407-05403-000 | CLAMP,L:88 | Battery (SN415QD, SN415VD) |
| 09408-00111-000 | CLAMP | Battery (SN415QD, SN415VD) |
| 33610-77E60-000 | バッテリアッシ,75D23LーMF(FB) | Battery (SN415QD, SN415VD) |
| 33610-77EV8-000 | BATTERY ASSY,75D23L (Cannot be supplied) | Battery (SN415QD, SN415VD) |
| 33660-60G20-000 | Tray, battery | Battery (SN415QD, SN415VD) |
| 36694-68K00-000 | COVER,BTRY TERMINAL | Battery (SN415QD, SN415VD) |
| 36694-84A00-000 | Cover,btry terminal | Battery (SN415QD, SN415VD) |
| 36739-84A00-000 | FUSE,BATTERY | Battery (SN415QD, SN415VD) |
