Search › Model › SKF2V

SKF2V

Mitsubishi DELICA-VAN · 2003 · 3,358 parts · 228 categories

3,358 items

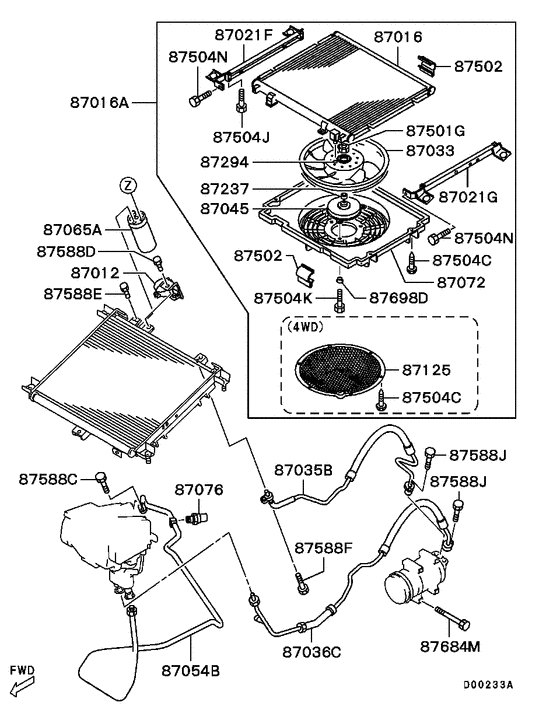

A/c condenser, piping (CONDENSER & PIPING) 30

#	OEM	Part name
87012	MQ905117	BRACKET, A/C RECEIVER
87016	MQ908461	CONDENSER, A/C REFRIGERANT
87016	MQ910680	CONDENSER ASSY, A/C REFRIGERANT
87021	MQ908457	BRACKET, A/C CONDENSER
87021	MQ908459	BRACKET, A/C CONDENSER
87033	MQ908455	FAN, A/C CONDENSER
87035	MQ910844	HOSE, A/C COMPRESSOR DISCHARGE
87036	MQ910845	HOSE, A/C COMPRESSOR SUCTION
87036	MQ911938	HOSE, A/C COMPRESSOR SUCTION
87045	MQ909116	CONDENSER & FAN ASSY, A/C
87054	MQ909708	PIPE, A/C RECEIVER OUTLET
87065	MQ905116	RECEIVER ASSY, A/C
87065	MQ911342	RECEIVER ASSY, A/C
87072	MQ910664	SHROUD, A/C CONDENSER FAN
87076	MQ907765	SWITCH, A/C REFRIGERANT PRESSURE
87237	MQ909120	COLLAR, A/C INR
87294	MQ908463	O-RING, A/C CONDENSER
87501	MQ908663	NUT, A/C CONDENSER
87502	MQ910665	CLIP, A/C CONDENSER
87504	MQ908464	BOLT, A/C CONDENSER
87504	MQ908666	BOLT, A/C PIPING - ,
87504	MQ909119	BOLT, A/C CONDENSER
87504	MQ910739	BOLT, A/C CONDENSER
87588	MQ906743	BOLT, T/M OIL COOLER LINE
87588	MQ906687	BOLT, ENG CONTROL UNIT - Tapping
87588	MQ906744	BOLT, A/C PIPING
87588	MQ906749	BOLT, ALTERNATOR
87588	MQ906750	BOLT, T/F CASE
87684	MQ910740	BOLT, A/C COMPRESSOR
87698	MQ908661	BUSHING, A/C CONDENSER

OEM	Part name	Category
MQ905116	RECEIVER ASSY, A/C	A/c condenser, piping (CONDENSER & PIPING)
MQ905117	BRACKET, A/C RECEIVER	A/c condenser, piping (CONDENSER & PIPING)
MQ906687	BOLT, ENG CONTROL UNIT - Tapping	A/c condenser, piping (CONDENSER & PIPING)
MQ906743	BOLT, T/M OIL COOLER LINE	A/c condenser, piping (CONDENSER & PIPING)
MQ906744	BOLT, A/C PIPING	A/c condenser, piping (CONDENSER & PIPING)
MQ906749	BOLT, ALTERNATOR	A/c condenser, piping (CONDENSER & PIPING)
MQ906750	BOLT, T/F CASE	A/c condenser, piping (CONDENSER & PIPING)
MQ907765	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (CONDENSER & PIPING)
MQ908455	FAN, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ908457	BRACKET, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ908459	BRACKET, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ908461	CONDENSER, A/C REFRIGERANT	A/c condenser, piping (CONDENSER & PIPING)
MQ908463	O-RING, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ908464	BOLT, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ908661	BUSHING, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ908663	NUT, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ908666	BOLT, A/C PIPING - ,	A/c condenser, piping (CONDENSER & PIPING)
MQ909116	CONDENSER & FAN ASSY, A/C	A/c condenser, piping (CONDENSER & PIPING)
MQ909119	BOLT, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ909120	COLLAR, A/C INR	A/c condenser, piping (CONDENSER & PIPING)
MQ909708	PIPE, A/C RECEIVER OUTLET	A/c condenser, piping (CONDENSER & PIPING)
MQ910664	SHROUD, A/C CONDENSER FAN	A/c condenser, piping (CONDENSER & PIPING)
MQ910665	CLIP, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ910680	CONDENSER ASSY, A/C REFRIGERANT	A/c condenser, piping (CONDENSER & PIPING)
MQ910739	BOLT, A/C CONDENSER	A/c condenser, piping (CONDENSER & PIPING)
MQ910740	BOLT, A/C COMPRESSOR	A/c condenser, piping (CONDENSER & PIPING)
MQ910844	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (CONDENSER & PIPING)
MQ910845	HOSE, A/C COMPRESSOR SUCTION	A/c condenser, piping (CONDENSER & PIPING)
MQ911342	RECEIVER ASSY, A/C	A/c condenser, piping (CONDENSER & PIPING)
MQ911938	HOSE, A/C COMPRESSOR SUCTION	A/c condenser, piping (CONDENSER & PIPING)
