Search › Model › SK410
SK410

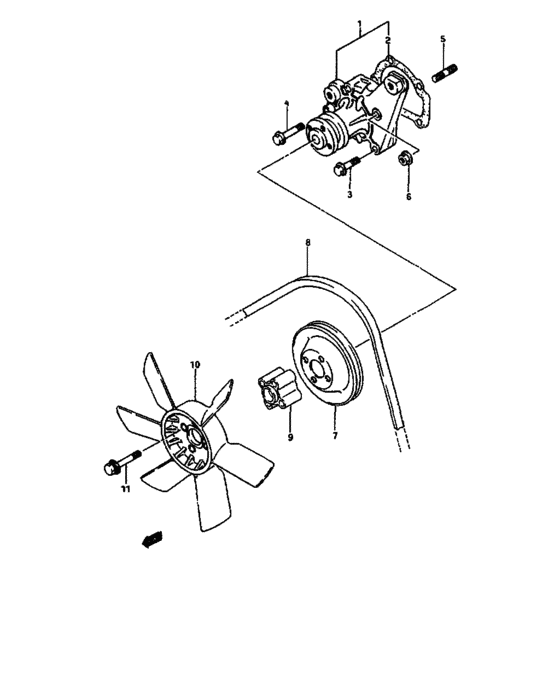

Water pump (WATER PUMP) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-78821-000 | PUMP ASSY,WATER |
| 2 | 17431-73001-000 | GASKET,WATER PUMP |
| 3 | 01550-06303-000 | Bolt (6x30) - Bolt, head cover l:30 |
| 3 | 01550-0630A-000 | Bolt |
| 3 | 01517-06303-000 | BOLT M6X1X30 |
| 4 | 01550-06403-000 | Bolt (green) - Bolt, engine controlunit |
| 4 | 01550-0640B-000 | Bolt |
| 4 | 01550-0640A-000 | Bolt - Bolt (l:40) |
| 4 | 01517-06403-000 | ボルト |
| 5 | 01411-06253-000 | Bolt, stud - Stud bolt |
| 5 | 01411-0625A-000 | BOLT,STUD |
| 5 | 09108-06040-000 | BOLT,STUD |
| 6 | 08316-10063-000 | Nut |
| 6 | 08316-1006B-000 | NUT |
| 6 | 08316-16063-000 | Nut |
| 7 | 17511-73001-000 | PULLEY,WATER PUMP |
| 8 | 17521-71520-000 | BELT,WATER PUMP L:758 |
| 9 | 17131-80000-000 | HUB,COOLING FAN |
| 10 | 17110-77300-000 | FAN,ENG COOLING |
| 11 | 01580-06503-000 | Bolt - Bolt, wing |
| 11 | 01580-0650A-000 | Bolt |
| 11 | 01117-06503-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01117-06503-000 | Bolt | Water pump (WATER PUMP) |
| 01411-06253-000 | Bolt, stud - Stud bolt | Water pump (WATER PUMP) |
| 01411-0625A-000 | BOLT,STUD | Water pump (WATER PUMP) |
| 01517-06303-000 | BOLT M6X1X30 | Water pump (WATER PUMP) |
| 01517-06403-000 | ボルト | Water pump (WATER PUMP) |
| 01550-06303-000 | Bolt (6x30) - Bolt, head cover l:30 | Water pump (WATER PUMP) |
| 01550-0630A-000 | Bolt | Water pump (WATER PUMP) |
| 01550-06403-000 | Bolt (green) - Bolt, engine controlunit | Water pump (WATER PUMP) |
| 01550-0640A-000 | Bolt - Bolt (l:40) | Water pump (WATER PUMP) |
| 01550-0640B-000 | Bolt | Water pump (WATER PUMP) |
| 01580-06503-000 | Bolt - Bolt, wing | Water pump (WATER PUMP) |
| 01580-0650A-000 | Bolt | Water pump (WATER PUMP) |
| 08316-10063-000 | Nut | Water pump (WATER PUMP) |
| 08316-1006B-000 | NUT | Water pump (WATER PUMP) |
| 08316-16063-000 | Nut | Water pump (WATER PUMP) |
| 09108-06040-000 | BOLT,STUD | Water pump (WATER PUMP) |
| 17110-77300-000 | FAN,ENG COOLING | Water pump (WATER PUMP) |
| 17131-80000-000 | HUB,COOLING FAN | Water pump (WATER PUMP) |
| 17400-78821-000 | PUMP ASSY,WATER | Water pump (WATER PUMP) |
| 17431-73001-000 | GASKET,WATER PUMP | Water pump (WATER PUMP) |
| 17511-73001-000 | PULLEY,WATER PUMP | Water pump (WATER PUMP) |
| 17521-71520-000 | BELT,WATER PUMP L:758 | Water pump (WATER PUMP) |
