SK410

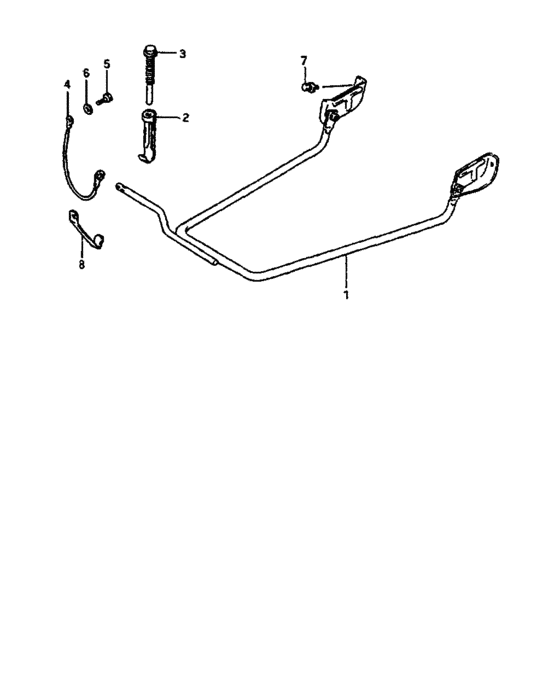

Tire carrier (V) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 71510-85701-000 | CARRIER,SPARE TIRE |
| 1 | 71510-67C51-000 | Carrier, spare tire |
| 1 | 71510-67C52-000 | CARRIER,SPARE TIRE |
| 2 | 71520-85500-000 | Hook, carrier |
| 2 | 71520-79A10-000 | HOOK,SPARE TIRE CARRIER |
| 2 | 71520-79A00-000 | HOOKSPARE TIRE CARRIER |
| 3 | 71531-85500-000 | BOLT,SPARE TIRE HOOK |
| 4 | 71560-85500-000 | CABLE,SPARE TIRE CARRIER |
| 5 | 09100-06075-000 | BOLT(6X14) - Bolt, carrier (6x14) |
| 6 | 09161-10007-000 | WASHER(10X17X2) |
| 7 | 01560-06123-000 | Bolt |
| 7 | 01560-0612A-000 | Bolt |
| 8 | 71525-85700-000 | Hook,spare tire carr safety |
| OEM | Part name | Category |
|---|---|---|
| 01560-06123-000 | Bolt | Tire carrier (V) |
| 01560-0612A-000 | Bolt | Tire carrier (V) |
| 09100-06075-000 | BOLT(6X14) - Bolt, carrier (6x14) | Tire carrier (V) |
| 09161-10007-000 | WASHER(10X17X2) | Tire carrier (V) |
| 71510-67C51-000 | Carrier, spare tire | Tire carrier (V) |
| 71510-67C52-000 | CARRIER,SPARE TIRE | Tire carrier (V) |
| 71510-85701-000 | CARRIER,SPARE TIRE | Tire carrier (V) |
| 71520-79A00-000 | HOOKSPARE TIRE CARRIER | Tire carrier (V) |
| 71520-79A10-000 | HOOK,SPARE TIRE CARRIER | Tire carrier (V) |
| 71520-85500-000 | Hook, carrier | Tire carrier (V) |
| 71525-85700-000 | Hook,spare tire carr safety | Tire carrier (V) |
| 71531-85500-000 | BOLT,SPARE TIRE HOOK | Tire carrier (V) |
| 71560-85500-000 | CABLE,SPARE TIRE CARRIER | Tire carrier (V) |
