SK410

Suzuki CARRY-SUPER-CARRY · 3,906 parts · 196 categories

3,906 items

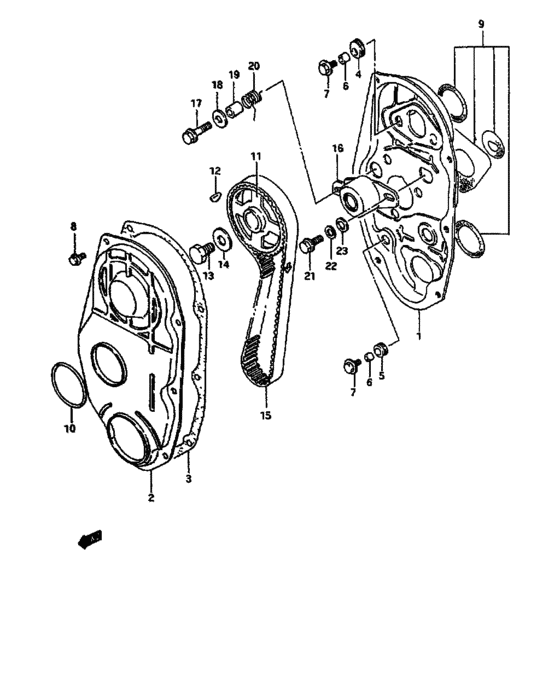

Timing belt (TIMING BELT) 61

#	OEM	Part name
1	11360-78100-000	COVER,TIMING BELT INSIDE
1	11380-78102-000	カバー,タイミングベルト,インサイド
2	11391-78113-000	COVER,TIMING BELT OUTSIDE
2	11391-73003-000	カバー,タイミングベルト,アウトサイド
3	11399-73010-000	GASKET,TIMING BELT COVER
4	11398-73000-000	GROMMET,COVER
5	09308-10004-000	GROMMET
6	09180-06106-000	SPACER(6.8X10X7)
7	09116-06164-000	Bolt - 6x16
7	09136-06139-000	SCREW(6X16)
7	09116-06113-000	ボルト,6X16
7	09116-06167-000	BOLT(6X20) - Bolt (6x20)
8	02162-06103-000	Bolt - Bolt, bracket
8	02162-0610A-000	SCREW
8	09108-06078-000	BOLT,STUD
9	11480-78110-000	SEAL SET,TIMING COVER INSIDE
9	09160-06027-000	Washer (6.5x20x1.2)
9	09160-06077-000	WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)
10	11484-73000-000	GROMMET,COVER OUTSIDE
10	08321-31067-000	Lock washer
10	08321-01067-000	WASHER,LOCK
11	12741-78402-000	Pulley, timing belt
11	12741-78403-000	PULLEY,CAMSHAFT TIMING BELT
11	08310-12066-000	Nut
11	08310-0006B-000	NUT - Nut gear shift link rod
11	08310-0006A-000	NUT
12	08341-31059-000	KEY
12	01517-06103-000	BOLT 6X10
12	01550-0610A-000	Bolt
12	01550-0610B-000	Bolt
13	01500-12253-000	Bolt
13	01500-1225A-000	Bolt
13	11482-73004-000	クッション,シールNO.2
14	09160-12043-000	Washer (12.5x32x4.5)
14	09160-12094-000	WASHER(12.5X32X4.5) - Washer (12.5x32x4.5)
14	11483-73001-000	シール,タイミングベルト,NO.3
14	11300-53831-000	SEAL SET,TIMING BELT COVER
15	12761-78400-000	BELT,TIMING
15	11485-73000-000	シール,タイミングカバーインサイド
16	12810-53A00-000	TENSIONER ASSY,TIMING BELT
17	01550-08403-000	Bolt
17	01550-0840B-000	Bolt
17	01550-0840A-000	Bolt
17	12741-78400-000	Pulley, cam shaft timing belt
18	09160-08085-000	Washer - Washer (8.2x26x1.6)
18	09160-08151-000	WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6)
19	09180-08111-000	SPACER(8.1X16X17) - Spacer, front
19	01107-12256-000	Bolt
20	12821-78100-000	SPRING,TENSIONER
21	09103-08152-000	Bolt
21	09103-08419-000	BOLT(8X25)
22	08321-01083-000	Lock washer
22	08321-0108B-000	WASHER,LOCK
22	08321-0108A-000	WASHER,LOCK
22	12810-84000-000	テンショナアッシ,タイミングベルト
23	09160-08033-000	Cl rel arm washer rh
23	09160-08126-000	WASHER(8.5X20X2.6)
23	01517-08406-000	Bolt
24	09160-08075-000	ワッシャ,8.2X26X1.6
27	09103-08157-000	BOLT(8X35)
28	08321-31086-000	Lock washer

OEM	Part name	Category
01107-12256-000	Bolt	Timing belt (TIMING BELT)
01500-12253-000	Bolt	Timing belt (TIMING BELT)
01500-1225A-000	Bolt	Timing belt (TIMING BELT)
01517-06103-000	BOLT 6X10	Timing belt (TIMING BELT)
01517-08406-000	Bolt	Timing belt (TIMING BELT)
01550-0610A-000	Bolt	Timing belt (TIMING BELT)
01550-0610B-000	Bolt	Timing belt (TIMING BELT)
01550-08403-000	Bolt	Timing belt (TIMING BELT)
01550-0840A-000	Bolt	Timing belt (TIMING BELT)
01550-0840B-000	Bolt	Timing belt (TIMING BELT)
02162-06103-000	Bolt - Bolt, bracket	Timing belt (TIMING BELT)
02162-0610A-000	SCREW	Timing belt (TIMING BELT)
08310-0006A-000	NUT	Timing belt (TIMING BELT)
08310-0006B-000	NUT - Nut gear shift link rod	Timing belt (TIMING BELT)
08310-12066-000	Nut	Timing belt (TIMING BELT)
08321-01067-000	WASHER,LOCK	Timing belt (TIMING BELT)
08321-01083-000	Lock washer	Timing belt (TIMING BELT)
08321-0108A-000	WASHER,LOCK	Timing belt (TIMING BELT)
08321-0108B-000	WASHER,LOCK	Timing belt (TIMING BELT)
08321-31067-000	Lock washer	Timing belt (TIMING BELT)
08321-31086-000	Lock washer	Timing belt (TIMING BELT)
08341-31059-000	KEY	Timing belt (TIMING BELT)
09103-08152-000	Bolt	Timing belt (TIMING BELT)
09103-08157-000	BOLT(8X35)	Timing belt (TIMING BELT)
09103-08419-000	BOLT(8X25)	Timing belt (TIMING BELT)
09108-06078-000	BOLT,STUD	Timing belt (TIMING BELT)
09116-06113-000	ボルト,6X16	Timing belt (TIMING BELT)
09116-06164-000	Bolt - 6x16	Timing belt (TIMING BELT)
09116-06167-000	BOLT(6X20) - Bolt (6x20)	Timing belt (TIMING BELT)
09136-06139-000	SCREW(6X16)	Timing belt (TIMING BELT)
09160-06027-000	Washer (6.5x20x1.2)	Timing belt (TIMING BELT)
09160-06077-000	WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)	Timing belt (TIMING BELT)
09160-08033-000	Cl rel arm washer rh	Timing belt (TIMING BELT)
09160-08075-000	ワッシャ,8.2X26X1.6	Timing belt (TIMING BELT)
09160-08085-000	Washer - Washer (8.2x26x1.6)	Timing belt (TIMING BELT)
09160-08126-000	WASHER(8.5X20X2.6)	Timing belt (TIMING BELT)
09160-08151-000	WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6)	Timing belt (TIMING BELT)
09160-12043-000	Washer (12.5x32x4.5)	Timing belt (TIMING BELT)
09160-12094-000	WASHER(12.5X32X4.5) - Washer (12.5x32x4.5)	Timing belt (TIMING BELT)
09180-06106-000	SPACER(6.8X10X7)	Timing belt (TIMING BELT)
09180-08111-000	SPACER(8.1X16X17) - Spacer, front	Timing belt (TIMING BELT)
09308-10004-000	GROMMET	Timing belt (TIMING BELT)
11300-53831-000	SEAL SET,TIMING BELT COVER	Timing belt (TIMING BELT)
11360-78100-000	COVER,TIMING BELT INSIDE	Timing belt (TIMING BELT)
11380-78102-000	カバー,タイミングベルト,インサイド	Timing belt (TIMING BELT)
11391-73003-000	カバー,タイミングベルト,アウトサイド	Timing belt (TIMING BELT)
11391-78113-000	COVER,TIMING BELT OUTSIDE	Timing belt (TIMING BELT)
11398-73000-000	GROMMET,COVER	Timing belt (TIMING BELT)
11399-73010-000	GASKET,TIMING BELT COVER	Timing belt (TIMING BELT)
11480-78110-000	SEAL SET,TIMING COVER INSIDE	Timing belt (TIMING BELT)
11482-73004-000	クッション,シールNO.2	Timing belt (TIMING BELT)
11483-73001-000	シール,タイミングベルト,NO.3	Timing belt (TIMING BELT)
11484-73000-000	GROMMET,COVER OUTSIDE	Timing belt (TIMING BELT)
11485-73000-000	シール,タイミングカバーインサイド	Timing belt (TIMING BELT)
12741-78400-000	Pulley, cam shaft timing belt	Timing belt (TIMING BELT)
12741-78402-000	Pulley, timing belt	Timing belt (TIMING BELT)
12741-78403-000	PULLEY,CAMSHAFT TIMING BELT	Timing belt (TIMING BELT)
12761-78400-000	BELT,TIMING	Timing belt (TIMING BELT)
12810-53A00-000	TENSIONER ASSY,TIMING BELT	Timing belt (TIMING BELT)
12810-84000-000	テンショナアッシ,タイミングベルト	Timing belt (TIMING BELT)
12821-78100-000	SPRING,TENSIONER	Timing belt (TIMING BELT)
