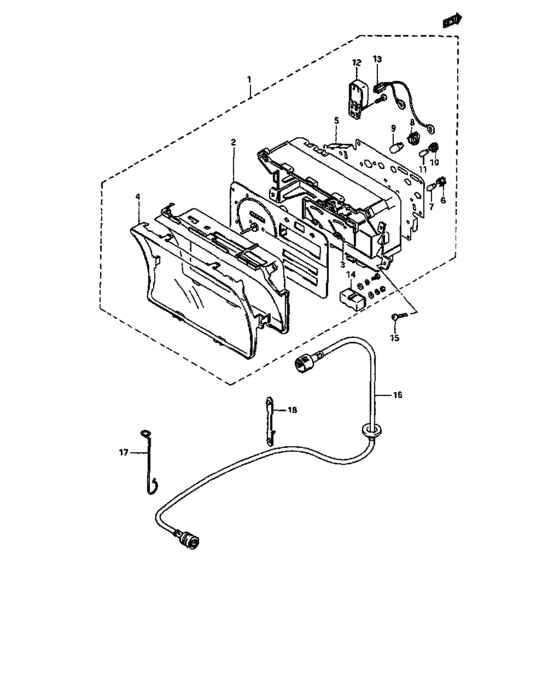

Speedometer (K)
21
| # | OEM | Part name |
|---|
| 1 |
34100-85260-000 |
SPEEDOMETER ASSY,COMB |
| 1 |
34100-85060-000 |
SPEEDOMETER ASSY,COMB |
| 2 |
34120-85050-000 |
BODY ASSY,SPEEDOMETER |
| 3 |
34320-85050-000 |
BODY ASSY,FUEL&TEMP |
| 4 |
34112-84020-000 |
GLASS |
| 5 |
34152-85240-000 |
PRINT,METER |
| 5 |
34152-85060-000 |
Print, meter |
| 5 |
34152-85090-000 |
PRINT,METER |
| 6 |
34175-78900-000 |
SOCKET |
| 7 |
09471-12091-000 |
BULB(12V1.4W G30) |
| 8 |
34172-50E10-000 |
SOCKET |
| 9 |
09471-12092-000 |
BULB(12V3.4W G30) |
| 11 |
09471-12055-000 |
BULB(14V1.4W,T5) |
| 12 |
34160-67010-000 |
BUZZER ASSY |
| 13 |
34165-85240-000 |
Wire, buzzer |
| 14 |
34180-82000-000 |
TIMER |
| 15 |
03541-05163-000 |
Screw |
| 15 |
03541-0516A-000 |
SCREW |
| 16 |
34910-80C21-000 |
CABLE ASSY,SPEEDOMETER |
| 17 |
34926-85000-000 |
CLAMP,SPEEDOMETER CABLE |
| 18 |
09407-05403-000 |
CLAMP,L:88 |
| OEM |
Part name |
Category |
| 03541-05163-000 |
Screw |
Speedometer (K) |
| 03541-0516A-000 |
SCREW |
Speedometer (K) |
| 09407-05403-000 |
CLAMP,L:88 |
Speedometer (K) |
| 09471-12055-000 |
BULB(14V1.4W,T5) |
Speedometer (K) |
| 09471-12091-000 |
BULB(12V1.4W G30) |
Speedometer (K) |
| 09471-12092-000 |
BULB(12V3.4W G30) |
Speedometer (K) |
| 34100-85060-000 |
SPEEDOMETER ASSY,COMB |
Speedometer (K) |
| 34100-85260-000 |
SPEEDOMETER ASSY,COMB |
Speedometer (K) |
| 34112-84020-000 |
GLASS |
Speedometer (K) |
| 34120-85050-000 |
BODY ASSY,SPEEDOMETER |
Speedometer (K) |
| 34152-85060-000 |
Print, meter |
Speedometer (K) |
| 34152-85090-000 |
PRINT,METER |
Speedometer (K) |
| 34152-85240-000 |
PRINT,METER |
Speedometer (K) |
| 34160-67010-000 |
BUZZER ASSY |
Speedometer (K) |
| 34165-85240-000 |
Wire, buzzer |
Speedometer (K) |
| 34172-50E10-000 |
SOCKET |
Speedometer (K) |
| 34175-78900-000 |
SOCKET |
Speedometer (K) |
| 34180-82000-000 |
TIMER |
Speedometer (K) |
| 34320-85050-000 |
BODY ASSY,FUEL&TEMP |
Speedometer (K) |
| 34910-80C21-000 |
CABLE ASSY,SPEEDOMETER |
Speedometer (K) |
| 34926-85000-000 |
CLAMP,SPEEDOMETER CABLE |
Speedometer (K) |
