SK410

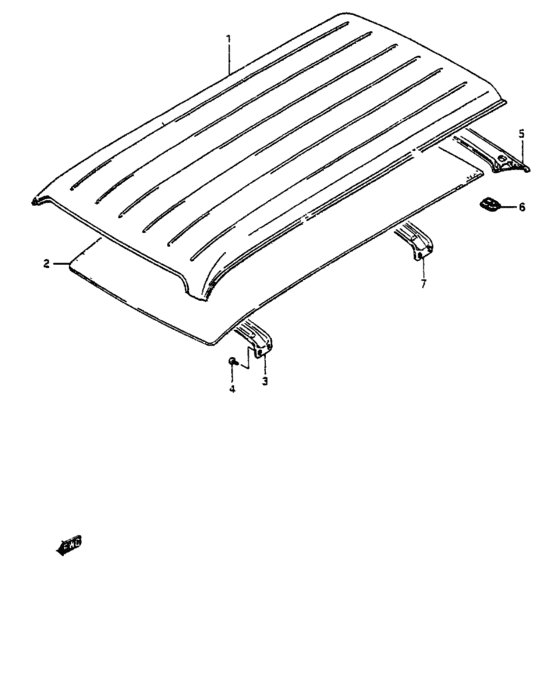

Roof panel (STD ROOF) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 64211-85500-000 | PANEL,ROOF |
| 2 | 78111-8550C-5SC | Headlining, roof |
| 3 | 78151-85500-000 | リンフォースメント,ルーフ |
| 3 | 78150-67C00-000 | REINFORCEMENT,ROOF FR |
| 4 | 02142-06088-000 | Screw 6 x 8 |
| 4 | 02142-06087-000 | SCREW |
| 5 | 64600-85500-000 | PANEL ASSY,ROOF BACK |
| 6 | 78171-85500-000 | CAP,BACK DR HINGE HOLE |
| 7 | 78155-85500-000 | リンフォースメント,ルーフ,リヤ |
| 7 | 78160-67C00-000 | REINFORCEMENT,ROOF RR |
| OEM | Part name | Category |
|---|---|---|
| 02142-06087-000 | SCREW | Roof panel (STD ROOF) |
| 02142-06088-000 | Screw 6 x 8 | Roof panel (STD ROOF) |
| 64211-85500-000 | PANEL,ROOF | Roof panel (STD ROOF) |
| 64600-85500-000 | PANEL ASSY,ROOF BACK | Roof panel (STD ROOF) |
| 78111-8550C-5SC | Headlining, roof | Roof panel (STD ROOF) |
| 78150-67C00-000 | REINFORCEMENT,ROOF FR | Roof panel (STD ROOF) |
| 78151-85500-000 | リンフォースメント,ルーフ | Roof panel (STD ROOF) |
| 78155-85500-000 | リンフォースメント,ルーフ,リヤ | Roof panel (STD ROOF) |
| 78160-67C00-000 | REINFORCEMENT,ROOF RR | Roof panel (STD ROOF) |
| 78171-85500-000 | CAP,BACK DR HINGE HOLE | Roof panel (STD ROOF) |
