SK410

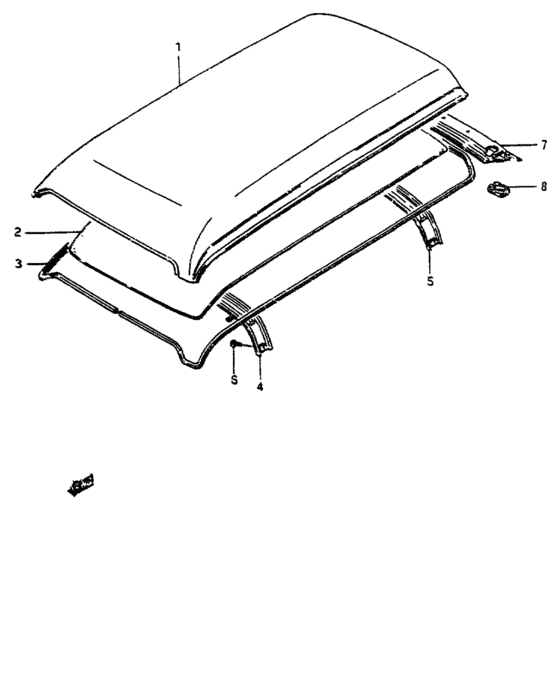

Roof panel (HIGH ROOF) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 64211-85510-000 | Panel,roof |
| 2 | 78111-85510-5YZ | ヘッドライニング,ルーフ(グレー) |
| 2 | 78111-85510-6VH | Headlining,roof |
| 3 | 78141-85510-5RU | TRIM,ROOF RAIL |
| 4 | 78151-85510-000 | REINFORCEMENT,ROOF FR |
| 5 | 78155-85710-000 | REINFORCEMENT,ROOF RR |
| 6 | 02142-06088-000 | Screw 6 x 8 |
| 6 | 02142-06087-000 | SCREW |
| 7 | 64600-85531-000 | パネルアッシ,ルーフバック |
| 7 | 64600-85511-000 | Panel assy,roof back |
| 8 | 78171-85500-000 | CAP,BACK DR HINGE HOLE |
| OEM | Part name | Category |
|---|---|---|
| 02142-06087-000 | SCREW | Roof panel (HIGH ROOF) |
| 02142-06088-000 | Screw 6 x 8 | Roof panel (HIGH ROOF) |
| 64211-85510-000 | Panel,roof | Roof panel (HIGH ROOF) |
| 64600-85511-000 | Panel assy,roof back | Roof panel (HIGH ROOF) |
| 64600-85531-000 | パネルアッシ,ルーフバック | Roof panel (HIGH ROOF) |
| 78111-85510-5YZ | ヘッドライニング,ルーフ(グレー) | Roof panel (HIGH ROOF) |
| 78111-85510-6VH | Headlining,roof | Roof panel (HIGH ROOF) |
| 78141-85510-5RU | TRIM,ROOF RAIL | Roof panel (HIGH ROOF) |
| 78151-85510-000 | REINFORCEMENT,ROOF FR | Roof panel (HIGH ROOF) |
| 78155-85710-000 | REINFORCEMENT,ROOF RR | Roof panel (HIGH ROOF) |
| 78171-85500-000 | CAP,BACK DR HINGE HOLE | Roof panel (HIGH ROOF) |
