SK410

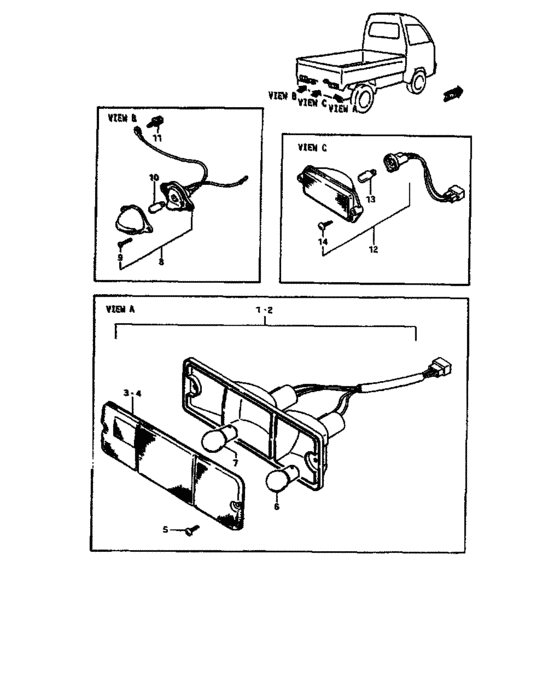

Rear lamp (K) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 35603-79001-000 | ランプアッシ,リヤコンビネーション,ライト |
| 1 | 35603-79004-000 | LAMP ASSY,RR COMB,R |
| 1 | 35603-79002-000 | Lamp assy,rr comb,rh |
| 2 | 35604-79001-000 | ランプアッシ,リヤコンビネーション,レフト |
| 2 | 35604-79004-000 | LAMP ASSY,RR COMB,L |
| 2 | 35604-79002-000 | Lamp assy,rr comb,lh |
| 3 | 35652-79000-000 | LENS REAR COMBINATION |
| 3 | 35652-79001-000 | LENS,RR COMB LAMP,R |
| 4 | 35672-79000-000 | LENS REAR LIGHT |
| 4 | 35672-79001-000 | LENS,RR COMB LAMP,L |
| 5 | 03112-05203-000 | Screw |
| 5 | 03111-0520A-000 | SCREW |
| 6 | 09471-12045-000 | BULB(12V21W) |
| 7 | 09471-12083-000 | BULB(12V21/5W) |
| 7 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) |
| 8 | 35910-80011-999 | LAMP ASSY LICENCE |
| 8 | 35910-80011-000 | Lamp assy,license |
| 9 | 03112-04163-000 | Screw |
| 9 | 03111-0416A-000 | SCREW |
| 10 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 10 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 11 | 09139-05028-000 | SCREW(5X14) |
| 12 | 36250-85010-000 | LAMP ASSY,BACK UP |
| 13 | 09471-12113-000 | BULB(12V8W) |
| 14 | 03242-04167-000 | Screw |
| 14 | 03242-0416B-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03111-0416A-000 | SCREW | Rear lamp (K) |
| 03111-0520A-000 | SCREW | Rear lamp (K) |
| 03112-04163-000 | Screw | Rear lamp (K) |
| 03112-05203-000 | Screw | Rear lamp (K) |
| 03242-04167-000 | Screw | Rear lamp (K) |
| 03242-0416B-000 | SCREW | Rear lamp (K) |
| 09139-05028-000 | SCREW(5X14) | Rear lamp (K) |
| 09471-12045-000 | BULB(12V21W) | Rear lamp (K) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Rear lamp (K) |
| 09471-12083-000 | BULB(12V21/5W) | Rear lamp (K) |
| 09471-12113-000 | BULB(12V8W) | Rear lamp (K) |
| 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | Rear lamp (K) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Rear lamp (K) |
| 35603-79001-000 | ランプアッシ,リヤコンビネーション,ライト | Rear lamp (K) |
| 35603-79002-000 | Lamp assy,rr comb,rh | Rear lamp (K) |
| 35603-79004-000 | LAMP ASSY,RR COMB,R | Rear lamp (K) |
| 35604-79001-000 | ランプアッシ,リヤコンビネーション,レフト | Rear lamp (K) |
| 35604-79002-000 | Lamp assy,rr comb,lh | Rear lamp (K) |
| 35604-79004-000 | LAMP ASSY,RR COMB,L | Rear lamp (K) |
| 35652-79000-000 | LENS REAR COMBINATION | Rear lamp (K) |
| 35652-79001-000 | LENS,RR COMB LAMP,R | Rear lamp (K) |
| 35672-79000-000 | LENS REAR LIGHT | Rear lamp (K) |
| 35672-79001-000 | LENS,RR COMB LAMP,L | Rear lamp (K) |
| 35910-80011-000 | Lamp assy,license | Rear lamp (K) |
| 35910-80011-999 | LAMP ASSY LICENCE | Rear lamp (K) |
| 36250-85010-000 | LAMP ASSY,BACK UP | Rear lamp (K) |
