SK410

Suzuki CARRY-SUPER-CARRY · 3,906 parts · 196 categories
SK410 ×

← Back to categories

3,906 items

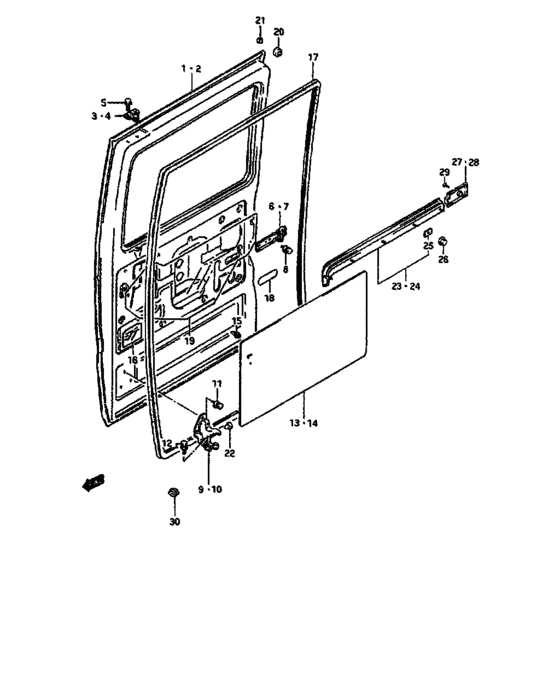

Rear door panel (V) 41
#OEMPart name
1 68500-75D00-000 PANEL ASSY,REAR DOOR,R
1 68500-77D60-000 PANEL ASSY,REAR DOOR,R
2 68700-75D00-000 PANEL ASSY,REAR DOOR,L
2 68700-77D60-000 PANEL ASSY,REAR DOOR,L
3 84120-85500-000 アームアッシ,リヤドアアッパ,ライト
3 84120-85501-000 ARM ASSY,RR DR UPR,R
4 84220-85500-000 アームアッシ,リヤドアアッパ,レフト
4 84220-85501-000 ARM ASSY,RR DR UPR,L
5 01550-08163-000 Bolt, holder
5 01550-0816B-000 Bolt
5 01550-0816A-000 Bolt - Bolt, rear
6 84110-85510-000 Hinge assy,slide
6 84110-85511-000 HINGE ASSY,SLIDE
7 84210-85510-000 Hinge assy,slide
7 84210-85511-000 HINGE ASSY,SLIDE
8 01580-08203-000 Bolt, rear
8 01580-0820A-000 Bolt
9 84130-85500-000 Arm assy,rear door lower,r
9 84130-85510-000 ARM ASSY,RR DR LWR,R
10 84230-85500-000 Arm assy,rear door lower,l
10 84230-85510-000 ARM ASSY,RR DR LWR,L
13 76110-67C20-6CA TRIM,REAR DOOR,R
14 76160-67C20-6CA TRIM,REAR DOOR,L
15 09409-08320-000 CLIP
16 83911-60X50-000 カバー,ドアシーリング,600X1200
16 83911-60X52-000 COVER,DR SEALING
17 84661-85510-000 WEATHERSTRIP,RR DR OPNG
18 84761-50X50-000 SEAL,140X190 - Seal, rr defogger wire hole
20 09321-05021-000 CUSHION
21 09321-06016-000 CUSHION
22 84139-85500-000 CUSHION,LOWER ARM STOP
23 84150-85502-000 RAIL,RR DOOR CTR GUIDE,R
24 84250-85502-000 RAIL,RR DOOR CTR GUIDE,L
25 84156-85500-000 PACKING,CTR RAIL
26 08316-20063-000 Nut
26 08316-2006A-000 NUT
27 77311-85500-5PK GARNISH,OTR,R
28 77361-85500-5PK GARNISH,OTR,L
29 03141-04163-000 Screw, upper
29 03141-0416A-000 SCREW
30 09250-14008-000 CAP(OD:17.3)
