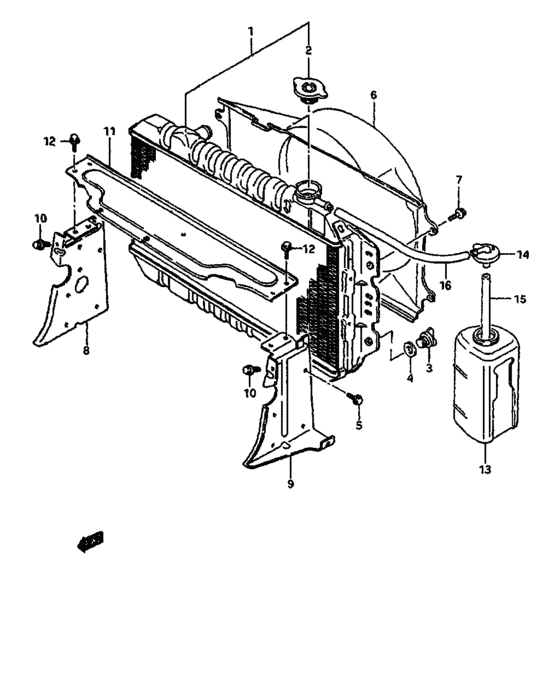

Radiator (RADIATOR)
31
| # | OEM | Part name |
|---|
| 1 |
17700-85552-000 |
RADIATOR ASSY |
| 2 |
17920-60821-000 |
Cap |
| 2 |
17820-82020-000 |
Cap |
| 3 |
17751-82000-000 |
PLUG,RADIATOR DRAIN |
| 4 |
17759-63210-000 |
GASKET |
| 4 |
17759-63211-000 |
Gasket |
| 5 |
02162-06123-000 |
Bolt (6x12) |
| 5 |
02162-0612B-000 |
SCREW - Bolt |
| 5 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 5 |
01517-06103-000 |
BOLT 6X10 |
| 5 |
01550-0610A-000 |
Bolt |
| 5 |
01550-0610B-000 |
Bolt |
| 6 |
17761-85200-000 |
SHROUD,FAN |
| 7 |
01550-06123-000 |
Bolt |
| 7 |
01550-0612B-000 |
Bolt - Bolt, clamp |
| 7 |
01550-0612A-000 |
Bolt |
| 7 |
01517-06123-000 |
Bolt |
| 8 |
17811-85210-000 |
BRACKET,RDTR,R |
| 9 |
17821-85580-000 |
BRACKET,RDTR,L |
| 9 |
17821-85210-000 |
ブラケット,ラジエータ,レフト |
| 10 |
09116-06144-000 |
Bolt - Bolt (6x16) |
| 10 |
09116-06165-000 |
BOLT(6X16) - Bolt, joint |
| 10 |
09116-06125-000 |
ボルト,6X16 |
| 11 |
17831-85210-000 |
COVER,RADIATOR,UPPER |
| 13 |
17931-80001-000 |
TANK,WATER RESERVE |
| 13 |
17931-72000-000 |
WATER RESERVE TANK |
| 14 |
17932-78100-000 |
CAP,RESERVE TANK |
| 15 |
09352-70111-600 |
HOSE(7X11X600) |
| 15 |
09352-70111-300 |
ホース,7X11X300 |
| 16 |
09352-70121-600 |
HOSE(7X12.1X600) - Hose (inmani to iac) |
| 16 |
09352-70121-300 |
Hose 7x12.1x600 - Hose (7x12.1x300) |
| OEM |
Part name |
Category |
| 01517-06103-000 |
BOLT 6X10 |
Radiator (RADIATOR) |
| 01517-06123-000 |
Bolt |
Radiator (RADIATOR) |
| 01550-0610A-000 |
Bolt |
Radiator (RADIATOR) |
| 01550-0610B-000 |
Bolt |
Radiator (RADIATOR) |
| 01550-06123-000 |
Bolt |
Radiator (RADIATOR) |
| 01550-0612A-000 |
Bolt |
Radiator (RADIATOR) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
Radiator (RADIATOR) |
| 02162-06123-000 |
Bolt (6x12) |
Radiator (RADIATOR) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Radiator (RADIATOR) |
| 02162-0612B-000 |
SCREW - Bolt |
Radiator (RADIATOR) |
| 09116-06125-000 |
ボルト,6X16 |
Radiator (RADIATOR) |
| 09116-06144-000 |
Bolt - Bolt (6x16) |
Radiator (RADIATOR) |
| 09116-06165-000 |
BOLT(6X16) - Bolt, joint |
Radiator (RADIATOR) |
| 09352-70111-300 |
ホース,7X11X300 |
Radiator (RADIATOR) |
| 09352-70111-600 |
HOSE(7X11X600) |
Radiator (RADIATOR) |
| 09352-70121-300 |
Hose 7x12.1x600 - Hose (7x12.1x300) |
Radiator (RADIATOR) |
| 09352-70121-600 |
HOSE(7X12.1X600) - Hose (inmani to iac) |
Radiator (RADIATOR) |
| 17700-85552-000 |
RADIATOR ASSY |
Radiator (RADIATOR) |
| 17751-82000-000 |
PLUG,RADIATOR DRAIN |
Radiator (RADIATOR) |
| 17759-63210-000 |
GASKET |
Radiator (RADIATOR) |
| 17759-63211-000 |
Gasket |
Radiator (RADIATOR) |
| 17761-85200-000 |
SHROUD,FAN |
Radiator (RADIATOR) |
| 17811-85210-000 |
BRACKET,RDTR,R |
Radiator (RADIATOR) |
| 17820-82020-000 |
Cap |
Radiator (RADIATOR) |
| 17821-85210-000 |
ブラケット,ラジエータ,レフト |
Radiator (RADIATOR) |
| 17821-85580-000 |
BRACKET,RDTR,L |
Radiator (RADIATOR) |
| 17831-85210-000 |
COVER,RADIATOR,UPPER |
Radiator (RADIATOR) |
| 17920-60821-000 |
Cap |
Radiator (RADIATOR) |
| 17931-72000-000 |
WATER RESERVE TANK |
Radiator (RADIATOR) |
| 17931-80001-000 |
TANK,WATER RESERVE |
Radiator (RADIATOR) |
| 17932-78100-000 |
CAP,RESERVE TANK |
Radiator (RADIATOR) |
