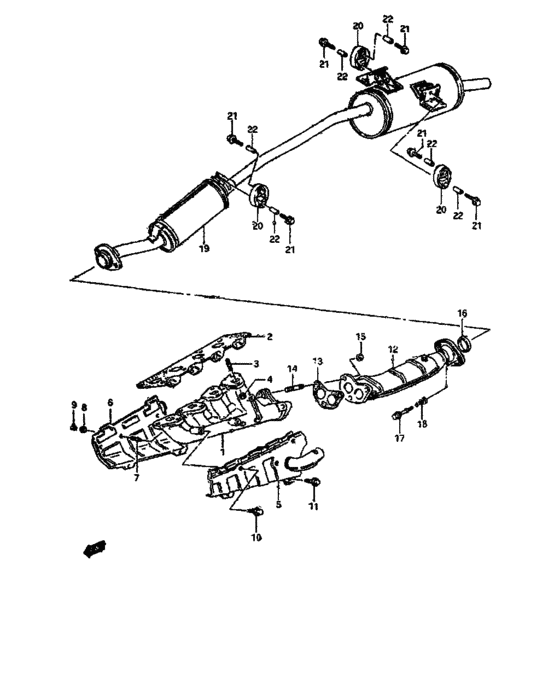

Muffler (V)
38
| # | OEM | Part name |
|---|
| 1 |
14111-85210-000 |
MANIFOLD,EXH |
| 2 |
14140-85200-000 |
GASKET,EXH MANF |
| 3 |
01411-08253-000 |
New Genuine Part |
| 3 |
01411-0825A-000 |
BOLT,STUD |
| 4 |
08310-00083-000 |
Nut |
| 4 |
08310-0008B-000 |
NUT |
| 4 |
08310-0008A-000 |
NUT - Nut, bead stopper |
| 5 |
14120-85220-000 |
COVER,EXH MANIFOLD |
| 6 |
14125-85201-000 |
COVER,LOWER |
| 7 |
01411-06123-000 |
Bolt, stud - Stud bolt |
| 7 |
01411-0612A-000 |
BOLT,STUD |
| 8 |
08322-01063-000 |
Washer |
| 8 |
08322-0106B-000 |
WASHER |
| 9 |
08310-00063-000 |
Nut |
| 9 |
08310-0006B-000 |
NUT - Nut gear shift link rod |
| 9 |
08310-0006A-000 |
NUT |
| 10 |
09103-06168-000 |
BOLT(6X10) |
| 11 |
02162-06103-000 |
Bolt - Bolt, bracket |
| 11 |
02162-0610A-000 |
SCREW |
| 12 |
14190-85200-000 |
PIPE,EXHAUST |
| 13 |
14181-85200-000 |
GASKET,EXH PIPE |
| 14 |
01411-10253-000 |
New Genuine Part |
| 14 |
01411-1025A-000 |
BOLT,STUD |
| 15 |
09159-10016-000 |
NUT - Nut, clamp bracket |
| 16 |
14183-82601-000 |
リング,シール |
| 16 |
14183-76A00-000 |
RING,SEAL EXH PIPE |
| 17 |
09119-10042-000 |
ボルト,10X65 |
| 17 |
09119-10041-000 |
BOLT(10X65) |
| 18 |
14492-82600-000 |
Spring |
| 18 |
14492-67D00-000 |
SPRING,EXH PIPE |
| 19 |
14300-85710-000 |
MUFFLER |
| 20 |
14281-79010-000 |
Mounting, muffler |
| 20 |
14281-60G11-000 |
MOUNTING,MUFFLER(HS60) |
| 21 |
01550-08353-000 |
Bolt, rear |
| 21 |
01550-0835B-000 |
Bolt |
| 21 |
01550-0835A-000 |
Bolt |
| 22 |
09180-08057-000 |
Spacer |
| 22 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| OEM |
Part name |
Category |
| 01411-06123-000 |
Bolt, stud - Stud bolt |
Muffler (V) |
| 01411-0612A-000 |
BOLT,STUD |
Muffler (V) |
| 01411-08253-000 |
New Genuine Part |
Muffler (V) |
| 01411-0825A-000 |
BOLT,STUD |
Muffler (V) |
| 01411-10253-000 |
New Genuine Part |
Muffler (V) |
| 01411-1025A-000 |
BOLT,STUD |
Muffler (V) |
| 01550-08353-000 |
Bolt, rear |
Muffler (V) |
| 01550-0835A-000 |
Bolt |
Muffler (V) |
| 01550-0835B-000 |
Bolt |
Muffler (V) |
| 02162-06103-000 |
Bolt - Bolt, bracket |
Muffler (V) |
| 02162-0610A-000 |
SCREW |
Muffler (V) |
| 08310-00063-000 |
Nut |
Muffler (V) |
| 08310-0006A-000 |
NUT |
Muffler (V) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
Muffler (V) |
| 08310-00083-000 |
Nut |
Muffler (V) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
Muffler (V) |
| 08310-0008B-000 |
NUT |
Muffler (V) |
| 08322-01063-000 |
Washer |
Muffler (V) |
| 08322-0106B-000 |
WASHER |
Muffler (V) |
| 09103-06168-000 |
BOLT(6X10) |
Muffler (V) |
| 09119-10041-000 |
BOLT(10X65) |
Muffler (V) |
| 09119-10042-000 |
ボルト,10X65 |
Muffler (V) |
| 09159-10016-000 |
NUT - Nut, clamp bracket |
Muffler (V) |
| 09180-08057-000 |
Spacer |
Muffler (V) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
Muffler (V) |
| 14111-85210-000 |
MANIFOLD,EXH |
Muffler (V) |
| 14120-85220-000 |
COVER,EXH MANIFOLD |
Muffler (V) |
| 14125-85201-000 |
COVER,LOWER |
Muffler (V) |
| 14140-85200-000 |
GASKET,EXH MANF |
Muffler (V) |
| 14181-85200-000 |
GASKET,EXH PIPE |
Muffler (V) |
| 14183-76A00-000 |
RING,SEAL EXH PIPE |
Muffler (V) |
| 14183-82601-000 |
リング,シール |
Muffler (V) |
| 14190-85200-000 |
PIPE,EXHAUST |
Muffler (V) |
| 14281-60G11-000 |
MOUNTING,MUFFLER(HS60) |
Muffler (V) |
| 14281-79010-000 |
Mounting, muffler |
Muffler (V) |
| 14300-85710-000 |
MUFFLER |
Muffler (V) |
| 14492-67D00-000 |
SPRING,EXH PIPE |
Muffler (V) |
| 14492-82600-000 |
Spring |
Muffler (V) |
