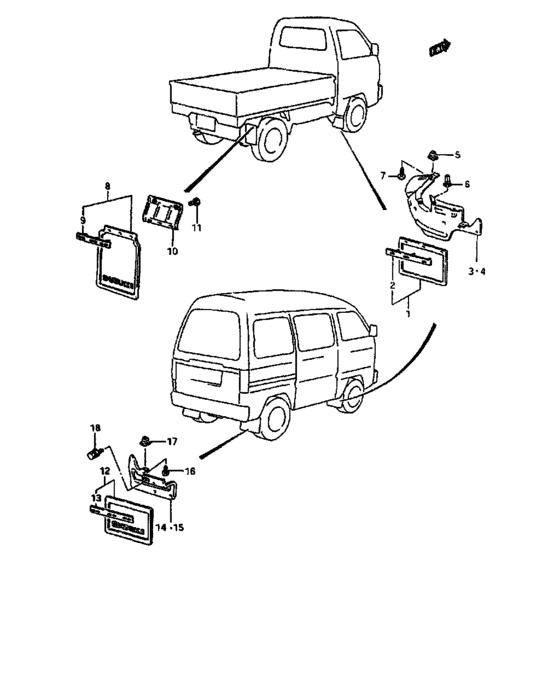

Mud flap (MUD FLAP)
26
| # | OEM | Part name |
|---|
| 1 |
72210-85842-000 |
FLAP SET,FR MUD |
| 1 |
72210-85820-000 |
Flap set,front mud |
| 2 |
57612-79011-000 |
PLATE,ATTACHING |
| 3 |
72210-85000-000 |
パネル,フロントマッドフラップ,ライト |
| 3 |
72210-85001-000 |
PANEL,FRONT MUD FLAP,R |
| 4 |
72220-85000-000 |
パネル,フロントマッドフラップ,レフト |
| 4 |
72220-85001-000 |
PANEL,FRONT MUD FLAP,L |
| 5 |
09148-06006-000 |
NUT - Nut, side |
| 6 |
09148-06010-000 |
NUT |
| 6 |
09148-06007-000 |
NUT |
| 6 |
03141-06168-000 |
スクリュ |
| 7 |
03141-06163-000 |
Screw 6x16 |
| 7 |
03141-0616A-000 |
SCREW |
| 8 |
72220-85852-000 |
FLAP SET,RR MUD |
| 9 |
57631-52002-000 |
PLATE,ATTACHING |
| 10 |
57617-79400-000 |
PLATE,REAR MUD FLAP RR |
| 11 |
01560-06103-000 |
Bolt |
| 11 |
01560-0610B-000 |
Bolt |
| 12 |
72220-85860-000 |
FLAP SET,RR MUD |
| 12 |
57600-79851-000 |
FLAP SET,RR MUD |
| 13 |
57681-79501-000 |
PLATE,ATTACHING |
| 13 |
01174-06103-000 |
ボルト |
| 13 |
01580-0610A-000 |
Bolt |
| 14 |
72231-85500-000 |
PANEL,REAR MUD FLAP,R |
| 15 |
72241-85500-000 |
PANEL,REAR MUD FLAP,L |
| 16 |
09132-06008-000 |
SCREW(6X12) |
| OEM |
Part name |
Category |
| 01174-06103-000 |
ボルト |
Mud flap (MUD FLAP) |
| 01560-06103-000 |
Bolt |
Mud flap (MUD FLAP) |
| 01560-0610B-000 |
Bolt |
Mud flap (MUD FLAP) |
| 01580-0610A-000 |
Bolt |
Mud flap (MUD FLAP) |
| 03141-06163-000 |
Screw 6x16 |
Mud flap (MUD FLAP) |
| 03141-06168-000 |
スクリュ |
Mud flap (MUD FLAP) |
| 03141-0616A-000 |
SCREW |
Mud flap (MUD FLAP) |
| 09132-06008-000 |
SCREW(6X12) |
Mud flap (MUD FLAP) |
| 09148-06006-000 |
NUT - Nut, side |
Mud flap (MUD FLAP) |
| 09148-06007-000 |
NUT |
Mud flap (MUD FLAP) |
| 09148-06010-000 |
NUT |
Mud flap (MUD FLAP) |
| 57600-79851-000 |
FLAP SET,RR MUD |
Mud flap (MUD FLAP) |
| 57612-79011-000 |
PLATE,ATTACHING |
Mud flap (MUD FLAP) |
| 57617-79400-000 |
PLATE,REAR MUD FLAP RR |
Mud flap (MUD FLAP) |
| 57631-52002-000 |
PLATE,ATTACHING |
Mud flap (MUD FLAP) |
| 57681-79501-000 |
PLATE,ATTACHING |
Mud flap (MUD FLAP) |
| 72210-85000-000 |
パネル,フロントマッドフラップ,ライト |
Mud flap (MUD FLAP) |
| 72210-85001-000 |
PANEL,FRONT MUD FLAP,R |
Mud flap (MUD FLAP) |
| 72210-85820-000 |
Flap set,front mud |
Mud flap (MUD FLAP) |
| 72210-85842-000 |
FLAP SET,FR MUD |
Mud flap (MUD FLAP) |
| 72220-85000-000 |
パネル,フロントマッドフラップ,レフト |
Mud flap (MUD FLAP) |
| 72220-85001-000 |
PANEL,FRONT MUD FLAP,L |
Mud flap (MUD FLAP) |
| 72220-85852-000 |
FLAP SET,RR MUD |
Mud flap (MUD FLAP) |
| 72220-85860-000 |
FLAP SET,RR MUD |
Mud flap (MUD FLAP) |
| 72231-85500-000 |
PANEL,REAR MUD FLAP,R |
Mud flap (MUD FLAP) |
| 72241-85500-000 |
PANEL,REAR MUD FLAP,L |
Mud flap (MUD FLAP) |
