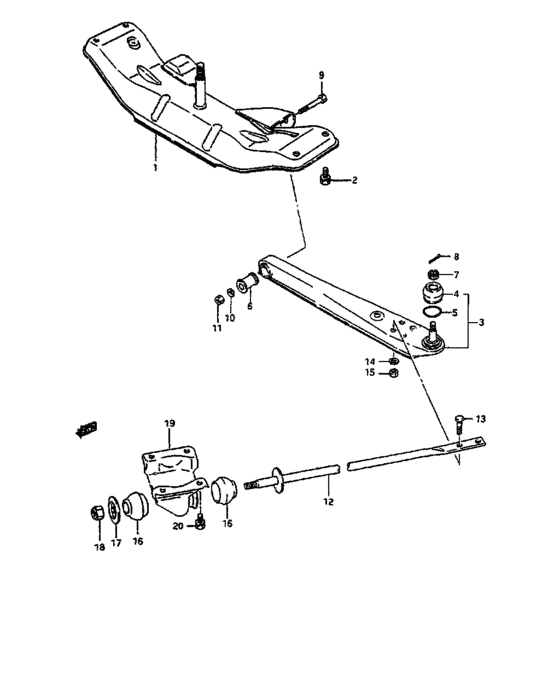

Front suspension frame (FRONT SUSPENSION FRAME) 46
#OEMPart name
1 56310-85202-000 FRAME,FR SUSPENSION
2 01580-10303-000 Bolt, bracket
2 01580-1030A-000 Bolt
2 01107-10303-000 BOLT 10X30
2 01500-1030A-000 Bolt
3 45200-85002-000 ARM ASSY,FR SPNSN
3 08321-31103-000 ロックワッシャ
4 45723-70B00-000 SEAL SET,DUST
4 45723-70B01-000 Seal Set,dust
4 45700-70810-000 Seal Set,dust
4 08322-11103-000 WASHER 105X18X16
4 08322-0110A-000 WASHER - Washer, knuckle end
4 08322-0110B-000 WASHER - Washer, knuckle end
5 09401-27402-000 CLIP
6 09319-10030-000 BUSH(10.2X25.5X52.2) - Bushing
6 45723-82000-000 BOOT SET LOWER ARM
7 08314-40123-000 Nut - Nut, knuckle end
7 08314-4012A-000 NUT
8 04111-30208-000 Cotter pin - Cotter pin, knuckle end
8 04111-3020A-000 PIN
9 09100-10124-000 BOLT(10X75)
9 08314-41123-000 Nut
10 08321-01103-000 Washer - Lock washer
10 08321-0110B-000 WASHER,LOCK - Washer, knuckle end
10 08321-0110A-000 WASHER,LOCK
10 04111-30206-000 コッタピン
11 08310-00103-000 Nut
11 08310-0010B-000 NUT
11 08310-0010A-000 NUT
12 45310-70D00-000 ROD,FRONT SPNSN TENSION
13 09119-10040-000 BOLT(10X25)
13 08310-12103-000 Nut
14 45310-85000-000 ROD,FRONT SPNSN TENSION
16 45341-50F10-000 BUSHING,TENSION ROD
17 45313-70D00-000 WASHER,COMPRESSION ROD
18 09159-12017-000 NUT
18 45341-85010-000 BUSHING,TENSION ROD
19 45350-85001-000 BRACKET,TENSION ROD
19 45312-85000-000 Washer,tension rod
20 01570-10253-000 ボルト
20 01570-1025A-000 Bolt
20 09180-15051-000 SPACER(15.3X19.9X44)
21 09159-14016-000 ナット
21 09159-14008-000 NUT
23 01107-10253-000 ボルト
23 01500-1025A-000 Bolt
