Search › Model › SK410
SK410

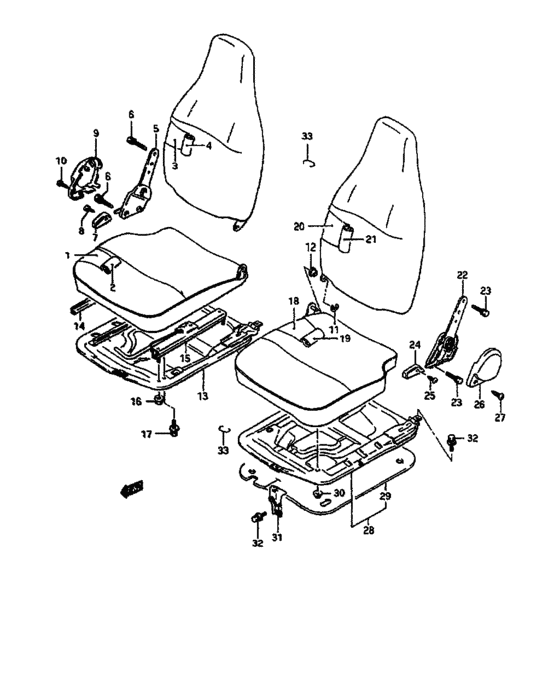

Front seat (V:RHD:) 41
| # | OEM | Part name |
|---|---|---|
| 1 | 85105-68C00-000 | Cushion sub assy, rh |
| 2 | 85180-85330-B5R | Cover, cushion rh |
| 3 | 85305-68C00-000 | Back sub assy, rh |
| 4 | 85380-68C00-B5R | Cover, back rh |
| 5 | 85210-85501-000 | RECLINING ASSY,FR SEAT,R |
| 6 | 01570-08203-000 | Bolt |
| 6 | 01570-0820B-000 | Bolt |
| 6 | 01570-0820A-000 | Bolt |
| 7 | 85211-84000-5RT | KNOB,RECLINING |
| 8 | 03211-04083-000 | Screw |
| 8 | 03211-0408A-000 | SCREW |
| 9 | 85221-84000-5RT | COVER,RECLINING ASSY,R |
| 10 | 03241-05123-000 | Screw |
| 10 | 03241-0512A-000 | SCREW |
| 11 | 08332-11063-000 | E ring |
| 11 | 08332-1106B-000 | E RING - Circlip |
| 11 | 08332-1106A-000 | E RING - E ring, pinion |
| 12 | 09306-08003-000 | Bush |
| 12 | 09306-08016-000 | BUSH |
| 13 | 85410-68C00-000 | Panel, seat riser rh |
| 14 | 85292-85000-000 | SPACER,FRONT SEAT SLIDE |
| 15 | 86610-85012-000 | RAIL ASSY,FR SEAT,R |
| 16 | 08316-20063-000 | Nut |
| 16 | 08316-2006A-000 | NUT |
| 17 | 01580-06123-000 | Bolt |
| 17 | 01580-0612B-000 | Bolt |
| 17 | 01580-0612A-000 | Bolt |
| 18 | 85106-68C10-000 | Cushion sub assy, lh |
| 19 | 85680-85320-B5R | Trim,fr seat cushion,l |
| 20 | 85306-68C00-000 | Back sub assy, lh |
| 21 | 85880-68C00-B5R | TRIM,FR SEAT BACK,L |
| 22 | 85710-85501-000 | RECLINING ASSY,FR SEAT,L |
| 23 | 01570-08163-000 | Bolt - Bolt, upper |
| 23 | 01570-0816A-000 | Bolt |
| 26 | 85721-84000-5RT | COVER,RECLINING ASSY,L |
| 28 | 85910-85731-000 | Panel, seat riser lh |
| 29 | 85927-85001-000 | INSULATOR,FR SEAT RISER,L |
| 31 | 86650-85702-000 | LOCK,FR SEAT |
| 32 | 01580-06163-000 | Bolt - Bolt, rear |
| 32 | 01580-0616A-000 | Bolt |
| 33 | 09387-19001-000 | RING |
| OEM | Part name | Category |
|---|---|---|
| 01570-08163-000 | Bolt - Bolt, upper | Front seat (V:RHD:) |
| 01570-0816A-000 | Bolt | Front seat (V:RHD:) |
| 01570-08203-000 | Bolt | Front seat (V:RHD:) |
| 01570-0820A-000 | Bolt | Front seat (V:RHD:) |
| 01570-0820B-000 | Bolt | Front seat (V:RHD:) |
| 01580-06123-000 | Bolt | Front seat (V:RHD:) |
| 01580-0612A-000 | Bolt | Front seat (V:RHD:) |
| 01580-0612B-000 | Bolt | Front seat (V:RHD:) |
| 01580-06163-000 | Bolt - Bolt, rear | Front seat (V:RHD:) |
| 01580-0616A-000 | Bolt | Front seat (V:RHD:) |
| 03211-04083-000 | Screw | Front seat (V:RHD:) |
| 03211-0408A-000 | SCREW | Front seat (V:RHD:) |
| 03241-05123-000 | Screw | Front seat (V:RHD:) |
| 03241-0512A-000 | SCREW | Front seat (V:RHD:) |
| 08316-20063-000 | Nut | Front seat (V:RHD:) |
| 08316-2006A-000 | NUT | Front seat (V:RHD:) |
| 08332-11063-000 | E ring | Front seat (V:RHD:) |
| 08332-1106A-000 | E RING - E ring, pinion | Front seat (V:RHD:) |
| 08332-1106B-000 | E RING - Circlip | Front seat (V:RHD:) |
| 09306-08003-000 | Bush | Front seat (V:RHD:) |
| 09306-08016-000 | BUSH | Front seat (V:RHD:) |
| 09387-19001-000 | RING | Front seat (V:RHD:) |
| 85105-68C00-000 | Cushion sub assy, rh | Front seat (V:RHD:) |
| 85106-68C10-000 | Cushion sub assy, lh | Front seat (V:RHD:) |
| 85180-85330-B5R | Cover, cushion rh | Front seat (V:RHD:) |
| 85210-85501-000 | RECLINING ASSY,FR SEAT,R | Front seat (V:RHD:) |
| 85211-84000-5RT | KNOB,RECLINING | Front seat (V:RHD:) |
| 85221-84000-5RT | COVER,RECLINING ASSY,R | Front seat (V:RHD:) |
| 85292-85000-000 | SPACER,FRONT SEAT SLIDE | Front seat (V:RHD:) |
| 85305-68C00-000 | Back sub assy, rh | Front seat (V:RHD:) |
| 85306-68C00-000 | Back sub assy, lh | Front seat (V:RHD:) |
| 85380-68C00-B5R | Cover, back rh | Front seat (V:RHD:) |
| 85410-68C00-000 | Panel, seat riser rh | Front seat (V:RHD:) |
| 85680-85320-B5R | Trim,fr seat cushion,l | Front seat (V:RHD:) |
| 85710-85501-000 | RECLINING ASSY,FR SEAT,L | Front seat (V:RHD:) |
| 85721-84000-5RT | COVER,RECLINING ASSY,L | Front seat (V:RHD:) |
| 85880-68C00-B5R | TRIM,FR SEAT BACK,L | Front seat (V:RHD:) |
| 85910-85731-000 | Panel, seat riser lh | Front seat (V:RHD:) |
| 85927-85001-000 | INSULATOR,FR SEAT RISER,L | Front seat (V:RHD:) |
| 86610-85012-000 | RAIL ASSY,FR SEAT,R | Front seat (V:RHD:) |
| 86650-85702-000 | LOCK,FR SEAT | Front seat (V:RHD:) |
