Search › Model › SK410
SK410

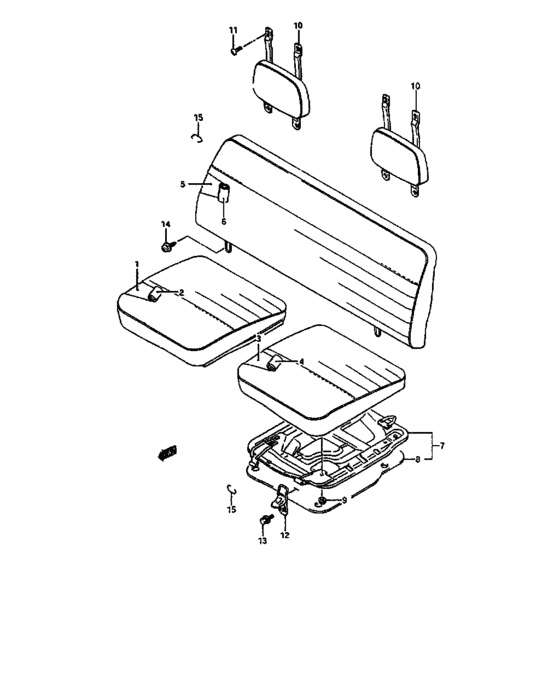

Front seat (K) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 85105-85032-000 | CUSHION SUB ASSY,FR SEAT,R |
| 2 | 85180-85341-B5S | TRIM,FR SEAT CUSHION,R |
| 3 | 85106-85270-000 | CUSHION SUB ASSY,FR SEAT,L |
| 4 | 85680-85270-B5S | TRIM,FR SEAT CUSHION,L |
| 5 | 85305-85251-000 | BACK S/ASSY,FR SEAT,R |
| 6 | 85380-85251-B5S | TRIM,FR SEAT BACK,R |
| 7 | 85910-85211-000 | PANEL,FR SEAT RISER,L |
| 8 | 85927-85001-000 | INSULATOR,FR SEAT RISER,L |
| 9 | 08316-20063-000 | Nut |
| 9 | 08316-2006A-000 | NUT |
| 10 | 86401-85200-B5S | HEADRESTRAINT ASSY |
| 11 | 02142-06103-000 | Screw |
| 11 | 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft |
| 11 | 02142-0610A-000 | SCREW |
| 12 | 86650-85000-000 | LOCK,FR SEAT CUSHION |
| 13 | 01580-06163-000 | Bolt - Bolt, rear |
| 13 | 01580-0616A-000 | Bolt |
| 14 | 09136-06048-000 | BOLT(6X12) |
| 15 | 09387-19001-000 | RING |
| OEM | Part name | Category |
|---|---|---|
| 01580-06163-000 | Bolt - Bolt, rear | Front seat (K) |
| 01580-0616A-000 | Bolt | Front seat (K) |
| 02142-06103-000 | Screw | Front seat (K) |
| 02142-0610A-000 | SCREW | Front seat (K) |
| 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft | Front seat (K) |
| 08316-20063-000 | Nut | Front seat (K) |
| 08316-2006A-000 | NUT | Front seat (K) |
| 09136-06048-000 | BOLT(6X12) | Front seat (K) |
| 09387-19001-000 | RING | Front seat (K) |
| 85105-85032-000 | CUSHION SUB ASSY,FR SEAT,R | Front seat (K) |
| 85106-85270-000 | CUSHION SUB ASSY,FR SEAT,L | Front seat (K) |
| 85180-85341-B5S | TRIM,FR SEAT CUSHION,R | Front seat (K) |
| 85305-85251-000 | BACK S/ASSY,FR SEAT,R | Front seat (K) |
| 85380-85251-B5S | TRIM,FR SEAT BACK,R | Front seat (K) |
| 85680-85270-B5S | TRIM,FR SEAT CUSHION,L | Front seat (K) |
| 85910-85211-000 | PANEL,FR SEAT RISER,L | Front seat (K) |
| 85927-85001-000 | INSULATOR,FR SEAT RISER,L | Front seat (K) |
| 86401-85200-B5S | HEADRESTRAINT ASSY | Front seat (K) |
| 86650-85000-000 | LOCK,FR SEAT CUSHION | Front seat (K) |
