Search › Model › SK410
SK410

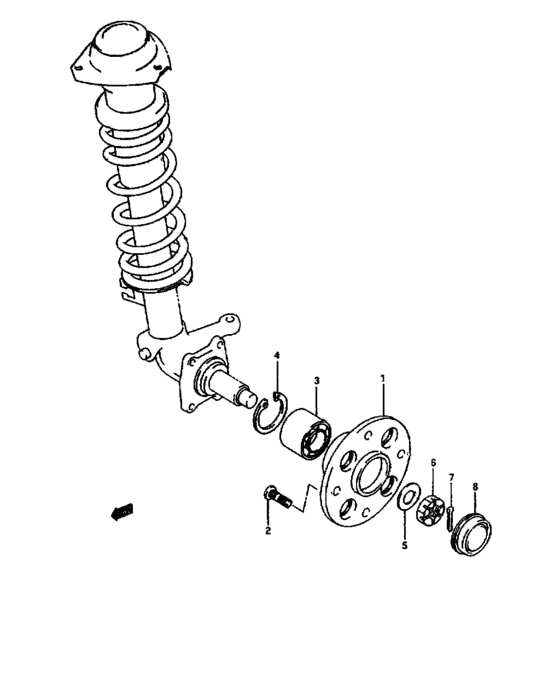

Front axle (FRONT AXLE) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 43421-85200-000 | HUB,FR WHL |
| 2 | 09119-12007-000 | Bolt |
| 3 | 09267-28002-000 | BEARING(28X58X42) |
| 4 | 08331-41586-000 | Circlip |
| 4 | 08331-4158A-000 | CIRCLIP |
| 4 | 08331-41589-000 | Circlip |
| 5 | 09160-21021-000 | WASHER(20.5X39X4) |
| 5 | 09160-21013-000 | Washer |
| 6 | 09141-20002-000 | NUT |
| 7 | 04111-40308-000 | Pin, rear axle - Cotter pin |
| 7 | 04111-4030A-000 | PIN - Cotter pin |
| 7 | 04111-40306-000 | Cotter pin |
| 8 | 43241-85001-000 | CAP,SPINDLE |
| OEM | Part name | Category |
|---|---|---|
| 04111-40306-000 | Cotter pin | Front axle (FRONT AXLE) |
| 04111-40308-000 | Pin, rear axle - Cotter pin | Front axle (FRONT AXLE) |
| 04111-4030A-000 | PIN - Cotter pin | Front axle (FRONT AXLE) |
| 08331-41586-000 | Circlip | Front axle (FRONT AXLE) |
| 08331-41589-000 | Circlip | Front axle (FRONT AXLE) |
| 08331-4158A-000 | CIRCLIP | Front axle (FRONT AXLE) |
| 09119-12007-000 | Bolt | Front axle (FRONT AXLE) |
| 09141-20002-000 | NUT | Front axle (FRONT AXLE) |
| 09160-21013-000 | Washer | Front axle (FRONT AXLE) |
| 09160-21021-000 | WASHER(20.5X39X4) | Front axle (FRONT AXLE) |
| 09267-28002-000 | BEARING(28X58X42) | Front axle (FRONT AXLE) |
| 43241-85001-000 | CAP,SPINDLE | Front axle (FRONT AXLE) |
| 43421-85200-000 | HUB,FR WHL | Front axle (FRONT AXLE) |
